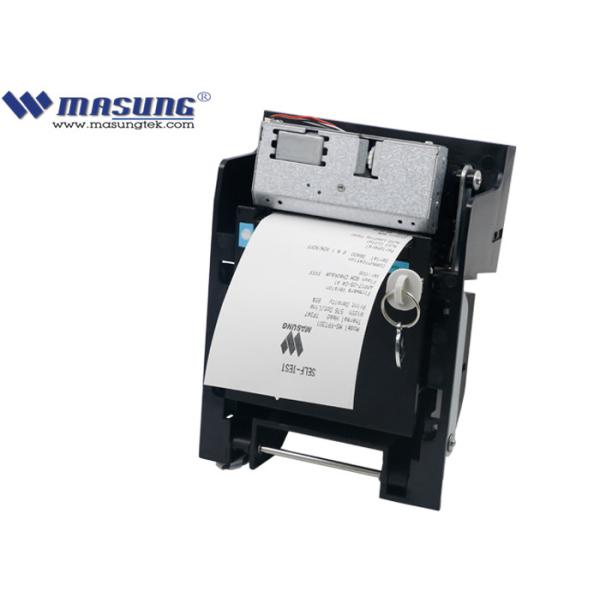

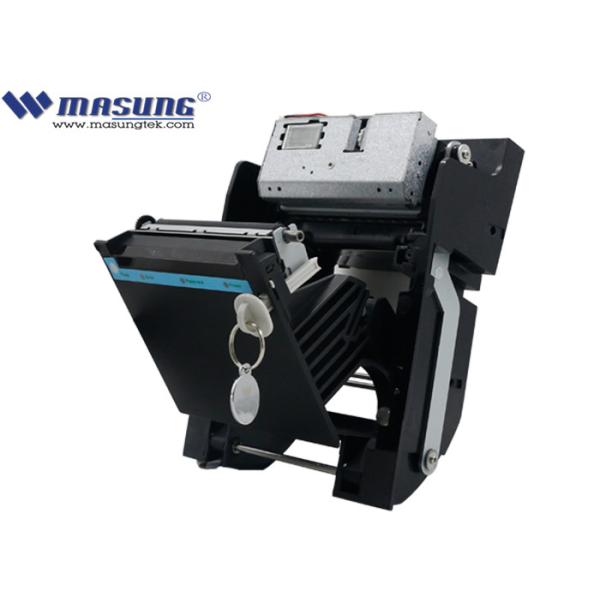

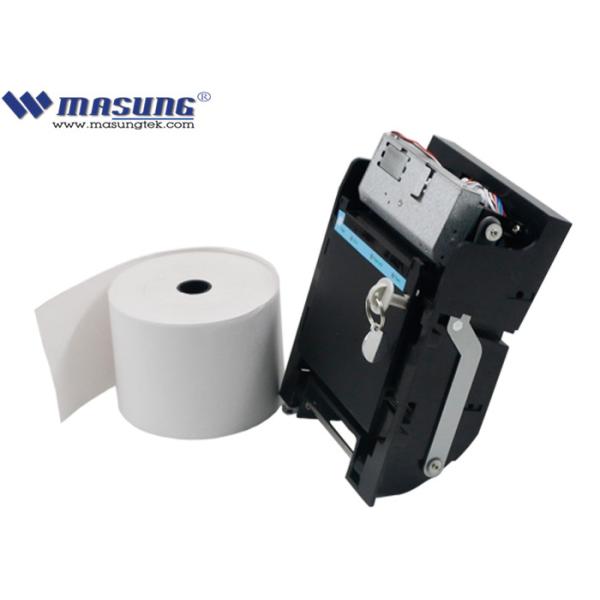

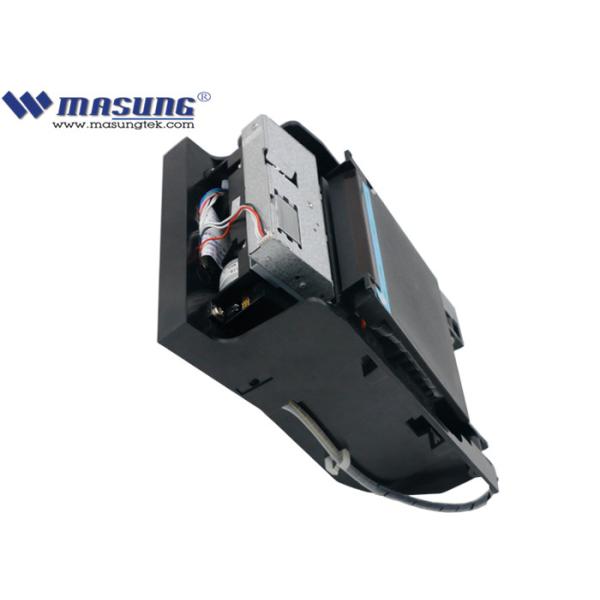

Support Android system panel mount thermal printer multiple interfaces
Support Android system panel mount thermal printer multiple interfaces
Support Android system panel mount thermal printer multiple interfaces
Support Android system panel mount thermal printer multiple interfaces
Support Android system panel mount thermal printer multiple interfaces
Support Android system panel mount thermal printer multiple interfaces
Support Android system panel mount thermal printer multiple interfaces
Support Android system panel mount thermal printer multiple interfaces
Specifications
Brand Name :
MASUNG
Model Number :
MS-FPT301K
Certification :
CE;ROHS
Place of Origin :
CHIAN
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
2500 set per month
Packaging Details :
carton and foam materials
Model :
MS-FPT301K
Printing method :
Thermal dot line
Printer head :
thermistor
Working voltage（Vp） :
DC 24V
Power consumption :
1.75A（average）
Peak current :
4.64A
Paper thickness :
60～120um
Working voltage :
24±10% V
Description

Support Android system multiple interfaces low price panel thermal printer

3 inch thermal printer with auto cutter & roll bucket

roll bucket opening & lock by key

Features:

Brand name printer mechanism

Super big roll bucket diameter Max 80 mm

Compact front panel mounting

Ultra high printing speed max 200 mm/s

Unique heat dissipation system

Multiple panel LED indication

Available customization case color

Specification:

Model MS-FPT301K

Print

 Printing method Thermal dot line printing
Paper width 80 mm
Print speed 170 mm/s( max)
Dot density 8 dots/mm

Total dots per

line

 576dots
Printing width 72mm
Paper feed method Easy loading
Cutter Cut method Partial cut
Paper thickness 60～120um
Activation pulse resistance 500,000
Detection Thermal head temperature detection Thermal resistance
Out of paper detection Photo interrupter

Operation

voltage

 Working voltage 24±10% V
Power consumption Mean 1.75A(25% of maximum printing dots)

environment

 Operation temperature -10~50 ℃(no condensation)
Operation humidity 20%~85%RH(40℃/85%RH)
Storage temperature -20~60℃(no condensation)
Storage humidity 10%~90%RH(50℃/90%RH)
Mass 780g
Interface Serial/TTL/USB
Current 3A (max)
Abrasion resistance 150 km
Paper roll diameter(max) 80 mm
Dimension (without panel) D139.99mm*W84.31mm*H186.42mm


Application:

Queue management system, visitor attendance terminal, ticket vendor, POS, medical instrument, body scales and more
