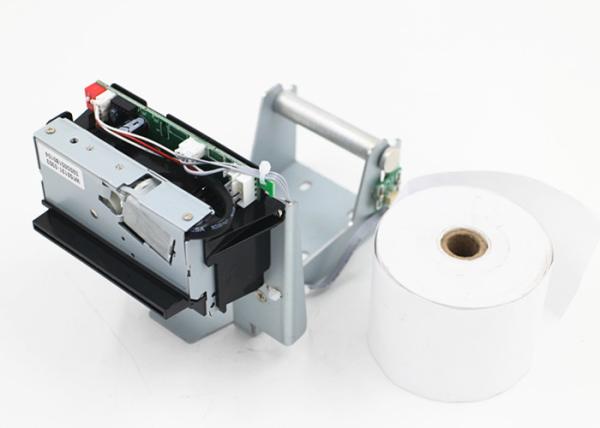

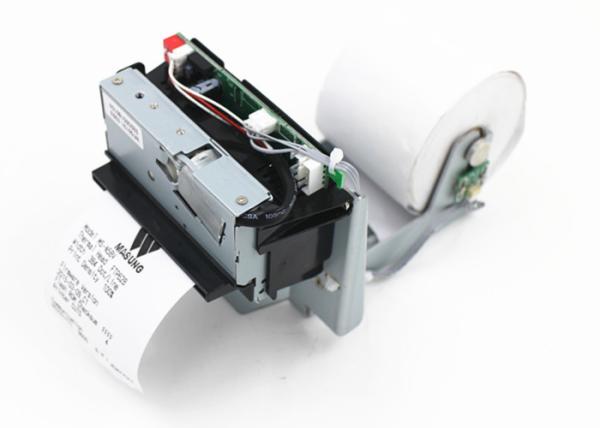

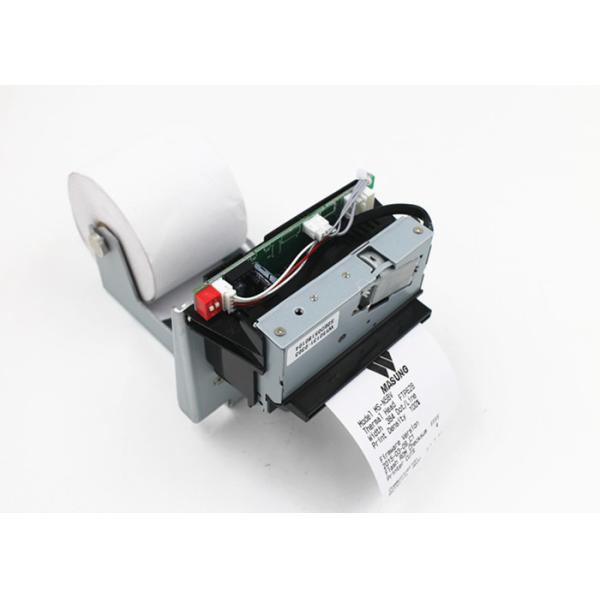

Multiple Sensors 58mm Kiosk Ticket Printers , Panel Mount Printer USB / RS232 Interfaces
Multiple Sensors 58mm Kiosk Ticket Printers , Panel Mount Printer USB / RS232 Interfaces
Multiple Sensors 58mm Kiosk Ticket Printers , Panel Mount Printer USB / RS232 Interfaces
Multiple Sensors 58mm Kiosk Ticket Printers , Panel Mount Printer USB / RS232 Interfaces
Multiple Sensors 58mm Kiosk Ticket Printers , Panel Mount Printer USB / RS232 Interfaces
Multiple Sensors 58mm Kiosk Ticket Printers , Panel Mount Printer USB / RS232 Interfaces
Multiple Sensors 58mm Kiosk Ticket Printers , Panel Mount Printer USB / RS232 Interfaces
Multiple Sensors 58mm Kiosk Ticket Printers , Panel Mount Printer USB / RS232 Interfaces
Specifications
Brand Name :
MASUNG
Model Number :
MS-N58VH
Certification :
CE; ROSH
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T/Paypal/Western union
Supply Ability :
5,000 units/monthly
Delivery Time :
5~8 days
Packaging Details :
Carton
Price :
USD65~80/piece
mechanism: :
MS-c628
Paper width :
58 mm
Printing width :
48 mm
Paper thickness :
54~78 um
Printing speed :
150 mm/s
Paper feed direction :
180° horizontal
Dimension (L*W*H) :
75*37*15.5 mm ( FPC L= 73mm)
paper loading :
auto loading
Power supply :
DC 12-24V /3A
Interfaces :
USB/RS232
Description

Multiple sensors 58mm Kiosk Ticket Printers , Panel Mount Printer USB / RS232 intrfaces

Description:

MS-N58V is one of model self-service ticket printer which belongs to 2 inch thermal printer. it is widely used for health kiosk.

Quick details:

► Dismountable cutter

► panel mount structure

► Ultra high speed max150 mm/s

► Paper jam prevention design

► Mechanism compatible with FTP-628MCL101

► Windows/Linux/Android OS support

► Chassis installation type

►Auto cutter available

Specification:

mechanism:

MS628

Printing method

Thermal dot line printing

Dots/line

384 dots/line

Dot pitch

8 dot/mm

Paper width

58 mm

Printing width

48 mm

Paper thickness

54~78 um

Printing speed

150 mm/s

Paper feed direction

180° horizontal

Sensors

Head temperature

Thermistor

Paper press shaft

Mechanical switch

Paper end

Photo interrupter

Cutting type

Full/partial (by adjustable)

Font size

ASCII:9*17;12*24;

Chinese: 24*24

Power supply

Logic circuit

2.6~3.6 V

Motor

4.75 ~9.5 V

Dimension (L*W*H)

75*37*15.5 mm ( FPC L= 73mm)

Weight

Approx 1.15 kg

Reliability

Circuit: over 1,000,000,000 pulses

Cutter: over 3,500,000 cuts

Thermal head: over 85 km

MCBF: 37,000,000 lines

Ambient environment

Work temperature

-10 ℃~50℃

Work humidity

20~85% RH

Storage temperature

-25℃~70℃

Storage temperature

10~90% RH

Controlling board:

MS-502

Interface

RS-232/TTL /USB

power supply

DC 8.5~12V/2.5A

Command set

ESC/POS

Barcode

supported

Firmware location

2 M NV Flash memory

Buffer

4 KB

SRAM

20 KB

Driver

USB driver

System

Windows/Android/Linux OS

Accessories:

paper near end sensor

Interface connector

Power supply unit

Cable

Application:

Healthcare kiosks; weighing scales; parking machines; queue management system; coupon machines; lottery printers; self-service terminals; attendance devices; ticket vendor; multimedia kiosk and more

Competitive Advantage:

  • OEM offer
  • Brand-name printer parts
  • Android system support
  • Customization offer
  • Prompt delivery
  • Small order accepted

​Multiple Sensors 58mm Kiosk Ticket Printers , Panel Mount Printer USB / RS232 Interfaces
