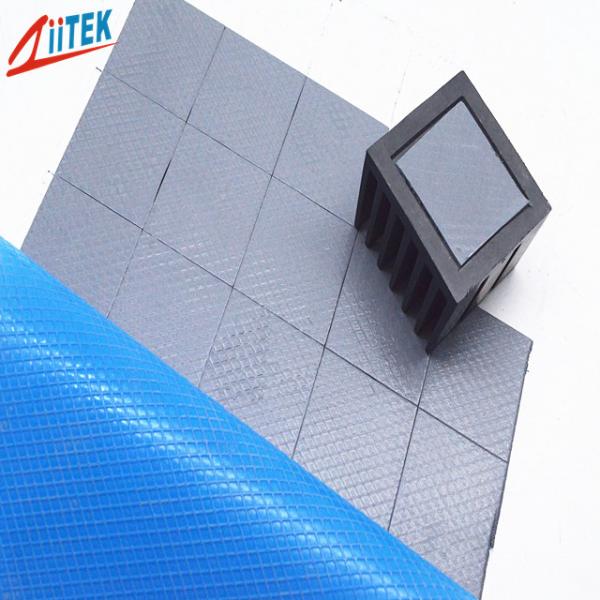

Wholesale Electric Silicone Material Thermal Pad , Durable Silica Gap Filler
Wholesale Electric Silicone Material Thermal Pad , Durable Silica Gap Filler
Wholesale Electric Silicone Material Thermal Pad , Durable Silica Gap Filler
Wholesale Electric Silicone Material Thermal Pad , Durable Silica Gap Filler
Specifications
Brand Name :
ZIITEK
Model Number :
TIF100-20-11S
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
1000pcs/bag
Products name :
Wholesale Electric Thermal Pad Silica Gap Filler Thermal Pad With Durable Silicone Material
Construction :
Ceramic filled silicone elastomer
Keywords :
Silica Gap Filler
Application :
Electronics
Density :
2.7g/cc
Hardness :
45±5 Shore 00
Color :
Gray
Thermal conductivity& Compostion :
2.0W/m-K
Thickness :
0.02~0.20inch / 0.5~5.0mmT
Continuos Use Temp :
-40℃ to 200℃
Description

Wholesale Electric Thermal Pad Silica Gap Filler Thermal Pad With Durable Silicone Material

Products Description

TIF100-20-11S Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.


Features:

> Good thermal conductive : 2.0W/mK

> RoHS compliant
> UL recognized
> Naturally tacky needing no further adhesive coating
> High compliance adapts to various pressure application environments
> Available in different thickness options

Applications


> Heat dissipation structure for radiators
> Telecommunication equipment
> Automotive electronics
> Battery packs for electric vehicles
> LED TV and lamps

Key attributes

Typical Properties of TIF100-20-11S
Color Gray Visual
Construction & Compostion Ceramic filled silicone elastomer *******
Density 2.7g/cc ASTM D297
Thickness range 0.02~0.20inch / 0.5~5.0mmT ASTM C351
Hardness 45±5 Shore 00 ASTM 2240
Dielectric Breakdown Voltage >5500 VAC ASTM D412
Operating Temp -40~200℃ *******
Dielectric Constant 4.7MHz ASTM D150
Volume Resistivity ≥1.0X1012Ohm-meter ASTM D257
Fire rating 94 V0 equivalent UL
Thermal conductivity 2.0W/mK ASTM D5470

Product Specifications
Standard Thickness: 0.02 to 0.20 (0.50 to 5.00 mm) with increments of 0.01" (0.25 mm).

Standard Size:

8"X16"(406 mm×406 mm).


Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment). DC1 (Single-sided hardening).

Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
Notes: FG (Fiberglass)provides enhanced strength, suitable for materials with thicknesses of 0.01 to 0.02 inch (0.25 to 0.50 mm).
The TIF series is available in custom shapes and various forms. For other thicknesses or moreinformation. please contact us.

Details Images

Wholesale Electric Silicone Material Thermal Pad , Durable Silica Gap Filler
Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company Profile

Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q:How can we get detailed price list?

A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
