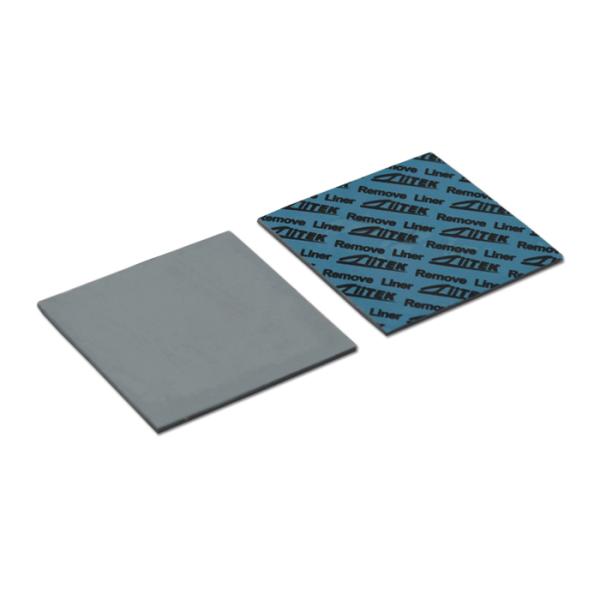

8.5W/mK Silicone Thermal Pads for GPU CPU LED -40℃ to 200℃
8.5W/mK Silicone Thermal Pads for GPU CPU LED -40℃ to 200℃
8.5W/mK Silicone Thermal Pads for GPU CPU LED -40℃ to 200℃
8.5W/mK Silicone Thermal Pads for GPU CPU LED -40℃ to 200℃
Specifications
Brand Name :
ZIITEK
Model Number :
TIF700RES
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
1000pcs/bag
Products name :
8.5W/MK High Temperature 0.5mm Custom Silicone Gap Filler Electric Thermal Pads For Gpu Cpu Led
Keywords :
Silicone Thermal Pads
Continuos Use Temp :
-40℃ to 200℃
Density :
3.5g/cc
Hardness :
10 Shore 00
Color :
Gray
Thermal conductivity& Compostion :
8.5W/m-K
Thickness :
0.04~0.12inch / 1.0~3.0mmT
Construction :
Ceramic filled silicone elastomer
Application :
Gpu Cpu Led
Description

8.5W/MK High Temperature 0.5mm Custom Silicone Gap Filler Electric Thermal Pads For Gpu Cpu Led

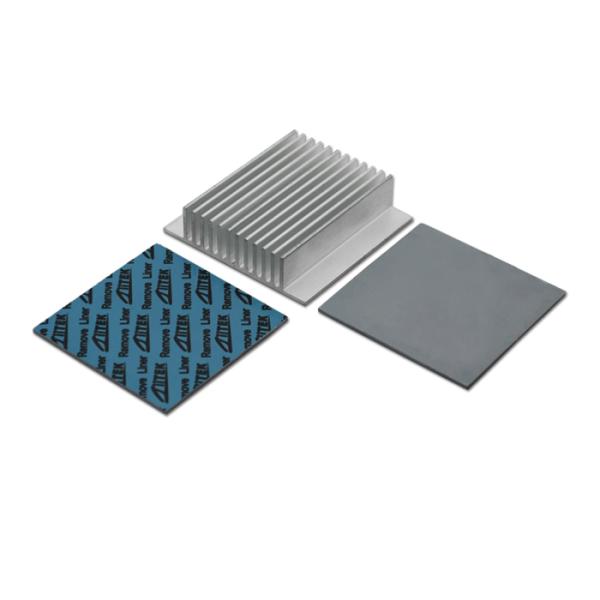

TIF®700RES Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.

Features


> Excellent thermal conductivity: 8.5W/mK
> Naturally tacky needing no further adhesive coating
> High compliance adapts to various pressure application environments
> Available in different thickness options

> RoHS compliant
> UL recognized

Applications


> Heat dissipation structure for radiators
> Telecommunication equipment
> Automotive electronics
> Battery packs for electric vehicles
> LED TV and lamps

> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

Typical Properties of TIF®700RES Series
Property Value Test method
Color Gray Visual
Construction & Compostion Ceramic filled silicone elastomer *******
Density 3.5g/cc ASTM D792
Thickness range 0.04~0.12inch / 1.0~3.0mm ASTM D374
Hardness 10 Shore 00 ASTM 2240
Breakdown Voltage(V/mm) ≥5000 ASTM D149
Recommended Operating Temp -40 ~200℃ Ziitek Test Method
Dielectric Constant @1MHz 6.7 ASTM D150
Volume Resistivity ≥1.0X1012Ohm-meter ASTM D257
Fire rating V-0 UL94 (E331100)
Thermal conductivity 8.5W/mK ASTM D5470

Product Specifications


Standard Thickness: 0.04" to 0.12" (1.0 to 3.00 mm) with increments of 0.01 (0.25 mm).

Standard Size: 16"X16"(406 mm×406 mm).
Component Codes:
The TIF series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

8.5W/mK Silicone Thermal Pads for GPU CPU LED -40℃ to 200℃
Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.
