Thermal Conductive Silica Sheet 6.5W Thermal Gap Filler Pad For Telecommunication Equipment
Thermal Conductive Silica Sheet 6.5W Thermal Gap Filler Pad For Telecommunication Equipment
Thermal Conductive Silica Sheet 6.5W Thermal Gap Filler Pad For Telecommunication Equipment
Thermal Conductive Silica Sheet 6.5W Thermal Gap Filler Pad For Telecommunication Equipment
Specifications
Brand Name :
ZIITEK
Model Number :
TIF700NES
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
1000pcs/bag
Payment Terms :
T/T
Products name :
Thermal Conductive Silica Sheet 6.5W Thermal Gap Filler Pad For Telecommunication Equipment
Application :
Telecommunication Equipment
Continuos Use Temp :
-45℃ to 200℃
Density :
3.3g/cm³
Hardness :
60/10 Shore 00
Color :
Gray
Thermal conductivity& Compostion :
6.5W/m-K
Thickness :
0.02~0.20inch / 0.5~5.0mmT
Construction :
Ceramic filled silicone elastomer
Keywords :
Thermal Gap Filler Pad
Description

Thermal Conductive Silica Sheet 6.5W Thermal Gap Filler Pad For Telecommunication Equipment

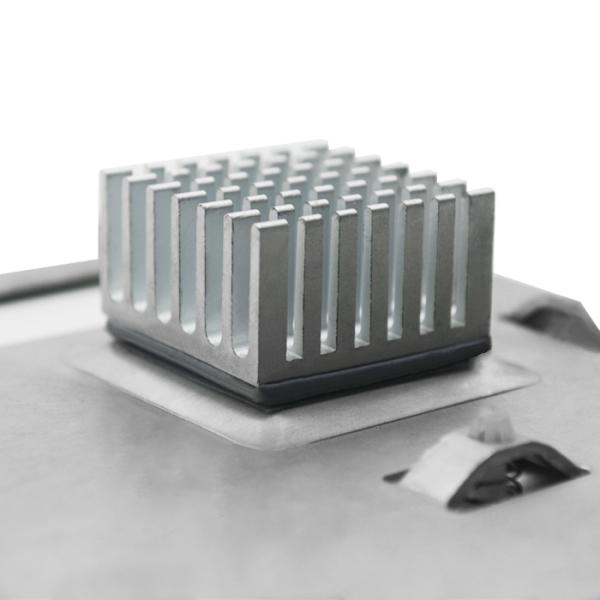

TIF®700NES Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.

Features


> Excellent thermal conductivity: 6.5 W/mK
> Naturally tacky needing no further adhesive coating
> High compliance adapts to various pressure application environments
> Available in different thickness options

Applications


> Heat dissipation structure for radiators
> Telecommunication equipment
> Automotive electronics
> Battery packs for electric vehicles
> LED TV and lamps

Typical Properties of TIF®700NES Series
Property Value Test method
Color Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.0 ASTM D792
Thickness Range(inch/mm) 0.020~0.030 0.040~0.200 ASTM D374
(0.50~0.75) (1.0~5.0)
Hardness 60 Shore 00 10 Shore 00 ASTM 2240
Continuos Use Temp -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 7.0 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Thermal Conductivity (W/m-K) 6.5 ASTM D5470
6.5 ISO22007
Fire rating V-0 UL 94 (E331100)

Product Specifications
Standard Thickness:0.020" (0.5 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size:16"X16" (406 mmX406 mm)


Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Thermal Conductive Silica Sheet 6.5W Thermal Gap Filler Pad For Telecommunication Equipment
Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company profile

Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:

Thermal gap pad

Thermal graphite sheet/film

Thermal double-sided tape

Thermal insulation pad

Thermal grease

Phase change material

Thermal gel

All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
