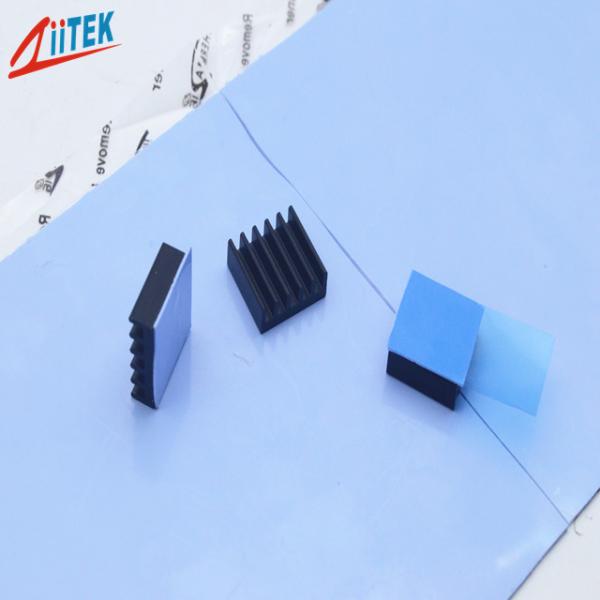

High Temp Resistance 2.6W/MK Soft Silicone Type Thermal Pad For Electronics
High Temp Resistance 2.6W/MK Soft Silicone Type Thermal Pad For Electronics
High Temp Resistance 2.6W/MK Soft Silicone Type Thermal Pad For Electronics
High Temp Resistance 2.6W/MK Soft Silicone Type Thermal Pad For Electronics
Specifications
Brand Name :
ZIITEK
Model Number :
TIF580BS
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
1000pcs/bag
Payment Terms :
T/T
Products name :
High Temp Resistance 2.6W/MK Soft Silicone Type Thermal Pad For Electronics
Construction :
Ceramic filled silicone elastomer
Continuos Use Temp :
-45℃ to 200℃
Density :
3.0g/cc
Hardness :
13/30 Shore 00
Color :
Blue
Thermal conductivity& Compostion :
2.6W/m-K
Thickness :
2.0mmT
Keywords :
Soft Thermal Pad
Application :
Electronics
Description

High Temp Resistance 2.6W/MK Soft Silicone Type Thermal Pad For Electronics

Products Description

TIF®580BS is an ultra-soft thermal interface material designed specifically to protect precision components that are extremely sensitive to mechanical stress. This product combines high thermal conductivity with an exceptionally gel-like softness, achieving a low-stress perfect fit. It is suitable for addressing issues in high-precision assemblies, such as large tolerances, uneven surfaces,and the susceptibility of delicate components to mechanical damage.


Features:

> Good thermal conductive : 2.6W/mK
> Naturally tacky needing no further adhesive coating

> High tack surface reduces contact resistance
> RoHS compliant
> UL recognized

Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Display card
> Mainboard/mother board
> Notebook
> Power supply

Key attributes

Typical Properties of TIF®500BS Series
Property Value Test method
Color Blue Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 3.0 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.03~0.200 ASTM D374
(0.25~0.75) (0.75~5.0)
Hardness 30 Shore 00 13 Shore 00 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 5.0 MHz ASTM D150
Volume Resistivity ＞1.0X1013 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 2.6 W/m-K ASTM D5470
2.6 W/m-K ISO22007

Product Specifications
Standard Thickness:

0.010 to 0.20 (0.25 to 5.00 mm) with increments of 0.01 (0.25 mm).

Standard Size:

16"X16"(406 mm×406 mm).


Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment). DC1 (Single-sided hardening).

Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF® series is available in custom shapes and various forms.

For other thicknesses or moreinformation. please contact us.

Details Images

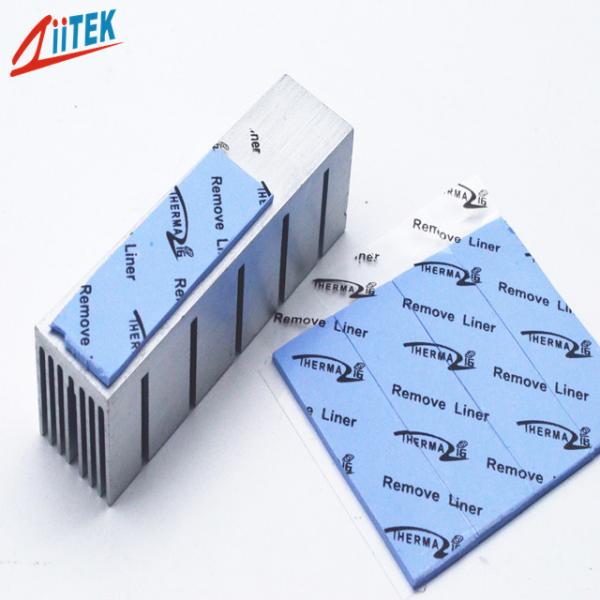

High Temp Resistance 2.6W/MK Soft Silicone Type Thermal Pad For Electronics
Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
