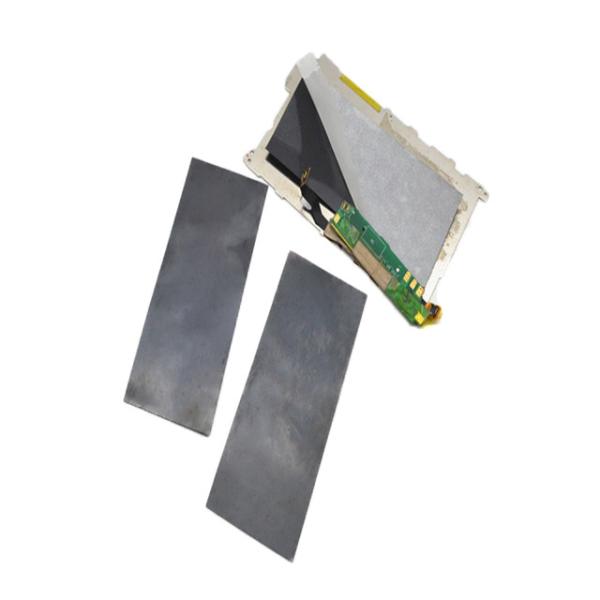

Good Thermal Conductivity 25 WmK Carbon Fiber Thermal Pad For Wearable Devices
Good Thermal Conductivity 25 WmK Carbon Fiber Thermal Pad For Wearable Devices
Good Thermal Conductivity 25 WmK Carbon Fiber Thermal Pad For Wearable Devices
Good Thermal Conductivity 25 WmK Carbon Fiber Thermal Pad For Wearable Devices
Specifications
Brand Name :
Ziitek
Model Number :
TS-TIR700-25
Certification :
RoHs
Place of Origin :
China
MOQ :
1000PCS
Price :
0.1-10 USD/PCS
Supply Ability :
100000pcs/day
Delivery Time :
2-3 work days
Packaging Details :
1000pcs/bag
Product name :
Good Thermal Conductivity 25 WmK Carbon Fiber Thermal Pad For Wearable Devices
Material :
Carbon Fiber Filled Silicone
Density :
2.9g/cm³
Thermal conductivity (Z Axis Direction) :
25.0W/m-K
Hardness :
85±5 /60±10 Shore 00
Application :
Wearable Devices
Color :
Gray
Keywords :
Carbon Fiber Thermal Pad
Description

Good Thermal Conductivity 25 WmK Carbon Fiber Thermal Pad For Wearable Devices

TS-TIR®700-25 Series series is a high-performance carbon-based thermal pad that combines highly thermally conductive carbon fiber with polymer silicone materials. Utilizing advanced manufacturing processes to precisely distribute thermal pathways, it achievese xceptional thermal conductivity, effectively reducing interfacial thermal resistance and enhancing heat dissipation efficiency. With its ultra-thin, lightweight design and mechanical flexibility, it is suitable for 5G equipment, high-performance chips, and other high heat flux applications.

Feature

> Good thermal conductivity 25w/mK

> Ultra-low thermal resistance
> works under low pressure.

> Non-insulating material

> Non-adhesive surface

Application

> Between chips and heat dissipation modules

> 5G communication equipment
> Optoelectronics industry

> Wearable devices

Typical Properties of TIR®700-25 series
Product Name TIR®700-25 Test Method
Colour Gray Visual
Construction Carbon fiber filled silicone *****
Thickness range 0.01"~0.02" (0.3~0.5 mm) 0.04"~0.20"(1.0~5.0 mm) ASTM D374
Hardness 85±5 Shore 00 60±10 Shore 00 ASTM D2240
Density 2.9g/cm3 ASTM D792
Operation Temperature -40℃~ 200℃ ******
Thermal impedance 25.0W/m-K ASTM D5470
Specific heat capacity (J/g ℃) 0.75 ASTM E1269 @25℃
Flame Rating V-0 UL94
RoHS Compliant IEC62321

Product Specification
Standard Thickness:0.01" (0.3mm), 0.02"(0.5mm), 0.04"(1.0mm), 0.06" (1.5mm), 0.08" (2.0mm), 0.10" (2.5mm), 0.12" (3.0mm)

Standard Size: 1.97"×1.97"(50.0mm x 50.0mm)

Good Thermal Conductivity 25 WmK Carbon Fiber Thermal Pad For Wearable Devices

Packaging Details & Lead time

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
