High Dielectric Constant Insulating Pad Phase Changing Materials For Electric Motor Control Equipment
High Dielectric Constant Insulating Pad Phase Changing Materials For Electric Motor Control Equipment
High Dielectric Constant Insulating Pad Phase Changing Materials For Electric Motor Control Equipment
High Dielectric Constant Insulating Pad Phase Changing Materials For Electric Motor Control Equipment
Specifications
Brand Name :
Ziitek
Model Number :
TIC800D
Certification :
RoHs
Place of Origin :
China
MOQ :
1000PCS
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100000pcs/day
Delivery Time :
3-5days
Packaging Details :
1000pcs/bay
Product Name :
High Dielectric Constant Insulating Pad Phase Changing Materials For Electric Motor Control Equipment
Color :
Light Amber
Thermal Conductivity :
1.6W/mK
Recommended Use Temp :
-50℃~130℃
Total Thickness :
0.005"/0.127mm
Density :
2.0g/cc
Feature :
Low Thermal Resistant With High Voltage Isolation
Keywords :
Phase Changing Materials
Description

High Dielectric Constant Insulating Pad Phase Changing Materials For Electric Motor Control Equipment

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

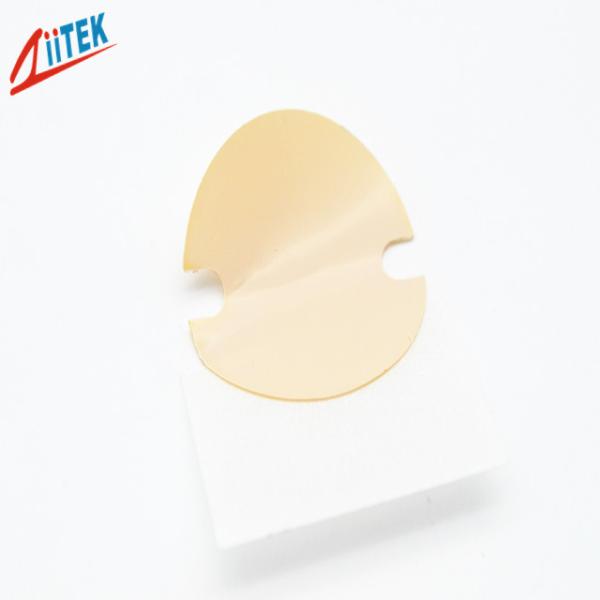

TIC®800D Series is a high thermal conductivity and high dielectric constant insulating pad. lt consists of a polyimide film substrate coated with a low-melting-point phase change material filled with ceramic blend. At 50 C, the material surface begins to soften and flow, effectively filling microscopic surface irregularities between the heat sink and the integrated circuit board, thereby reducing thermal resistance and enhancing heat transfer efficiency.

High Dielectric Constant Insulating Pad Phase Changing Materials For Electric Motor Control Equipment

Features
> Highly compliant surfacewith high thermal conductivity

> High dielectric strength
> Low thermal resistance with highvoltage isolation
> Resistant to tears and punctures


Applications
> Power semiconductors, MOSFETs,and IGBTs
> Audio and video components

> Automotive control devices

> Electric motor control equipment

Typical Properties of TIC®800D Series
Property Value Test Method
Color Light amber Visual
Composite Thickness 0.004"/0.102mm ASTM D374
Kapton MT Thickness 0.001"/0.025mm ASTM D374
Total Thickness 0.005"/0.127mm ASTM D374
Tensile Strength (Mpa) 17 ASTM D412
Recommended Use Temp(℃) -50~130 Ziitek Test Method
Phase Change Softening temp(℃) 50~60 ****
Electrical
Dielectric Breakdown Voltage(VAC) 5000 ASTM D149
Dielectric Constant @1MHz 1.8 ASTM D150
Volume Resistivity (Ohm-m) 1.0*1012 ASTM D257
Thermal Conductivity
Thermal Conductivity 1.6 W/mK ASTM D5470
Thermal Impedance (℃-in²/W) @50psi 0.16 ASTM D5470

Product Specification

Standard Thickness:
0.005" (0.127 mm). Individual die-cut shapes and custom thickness can be supplied. Please contact us for confirming.

Standard sizes:
10"x 100'(254 mm x 30 m), individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Not applicable to TIC800D series products.

Reinforcement:
TIC800D series is reinforced with polyimide film.

High Dielectric Constant Insulating Pad Phase Changing Materials For Electric Motor Control Equipment

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
