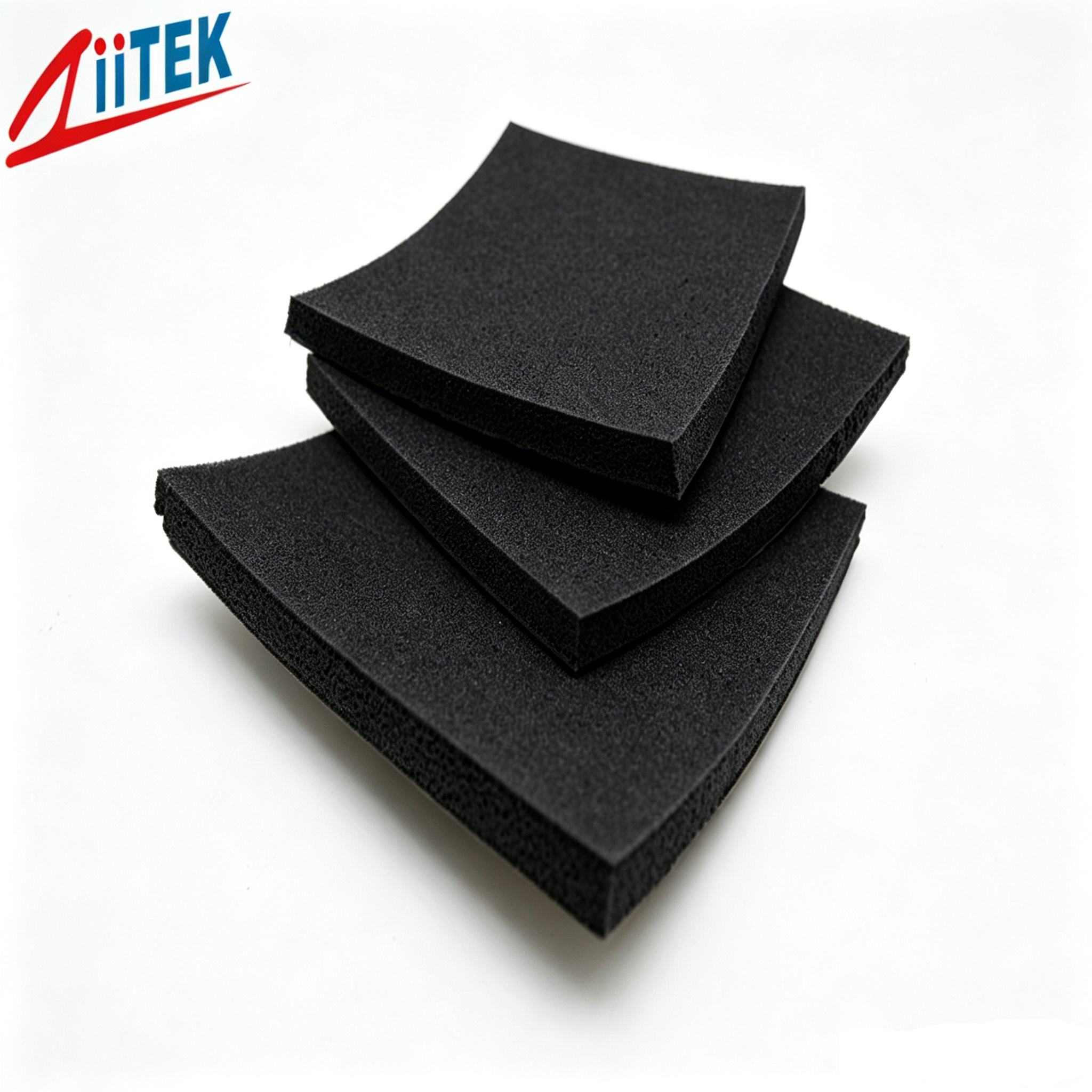

High Temperature Insulation Silicone Foam Sheet Manufacturers For Battery Management System
High Temperature Insulation Silicone Foam Sheet Manufacturers For Battery Management System
High Temperature Insulation Silicone Foam Sheet Manufacturers For Battery Management System
High Temperature Insulation Silicone Foam Sheet Manufacturers For Battery Management System
Specifications
Brand Name :
Ziitek
Model Number :
Z-Foam800-01FC
Certification :
RoHs
Place of Origin :
China
MOQ :
1000PCS
Supply Ability :
100000PCS/Day
Delivery Time :
2-3 Work Day
Packaging Details :
1000PCS/bag
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Products Name :
High Temperature Insulation Silicone Foam Sheet Manufacturers For Battery Management System
Color :
Black
Density(g/cm³) :
0.8
Tensile Strength (psi) :
45
Dielectric Constant @1MHz :
1.4
Recommended Operating Temperature (%22C) :
-55~200
Construction :
Silicone rubber
Keywords :
Silicone Foam Sheet
Application :
for Battery Management System
Description

High Temperature Insulation Silicone Foam Sheet Manufacturers For Battery Management System

Products description


Z-Foam® 800-01FC Series is a silicone foam extrusion material specifically designed for high-efficiency thermal insulation scenarios. It possesses a unique microcellular foam structure internally,which effectively reduces heat convection,thereby forming a good thermal barrier. Based on this characteristic, the material is widely used in applications requiring thermal insulation protection,such as new energy battery packs, electronic devices, and industrial cooling systems. At the same time, it not only exhibits excellent thermal insulation performance but also retains the good flexibility,high and low temperature resistance,and anti-aging characteristics inherent to silicone.This makes it suitable for complex installation environments and maintains stable performance over long-term use.


Features

>Good sealing capability
>Excellent aging resistance
>Can fit uneven surfaces
>Excellent flame retardancy
>Good resistance to compression deformation

Application

>Consumer electronics
>Battery management system
>Power module
>Communication equipment
>LED lighting fixtures

Typical Properties of Z-Foam®800-01FC Series
Properties Value Test method
Color Black Visual
Structure & Component Silicone rubber -
Density (g/cm3) 0.8 ASTM D1056
Compression Ratio (%)) @ 20psi 20 ASTM D1056
Tensile Strength (psi) 45 ASTM D412
Dielectric Constant @1MHz 1.4 ASTM D570
Recommended Operating Temperature (℃)) -55~200 -
Flame Rating V-0 UL94 (E331100)

High Temperature Insulation Silicone Foam Sheet Manufacturers For Battery Management System
Company profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

Our services

Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.

FAQ:

Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.

Q: What is your terms of payment ?

A: Payment<=2000USD, T/T in advance. Paying in time and faithful for several months, we can apply other payment term for you, pay together in every month or 30 days.

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online.
