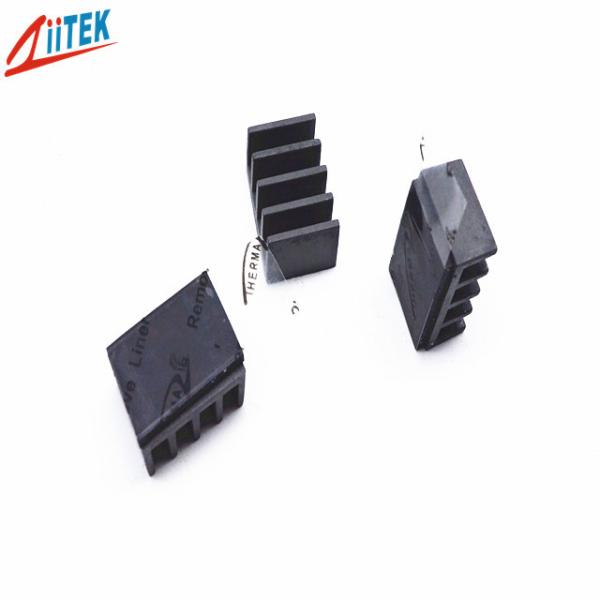

2.0mmt Thermal Gap Pad Silicone Hardness 20 Shore 00 Rohs Compliant For It Infrastructure
2.0mmt Thermal Gap Pad Silicone Hardness 20 Shore 00 Rohs Compliant For It Infrastructure
2.0mmt Thermal Gap Pad Silicone Hardness 20 Shore 00 Rohs Compliant For It Infrastructure
2.0mmt Thermal Gap Pad Silicone Hardness 20 Shore 00 Rohs Compliant For It Infrastructure
Specifications
Brand Name :
ZIITEK
Model Number :
TIF180-01US
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
1000pcs/bag
Application :
Audio and video components
Part number :
TIF180-01US
Outgasing (TML) :
0.35%
keyword :
thermal gap pad
name :
2.0mmT silicone pads Hardness 20 Shore 00 RoHS compliant for IT infrastructure
Volume Resistivity :
2.9 MHz
Description

2.0mmT silicone pads Hardness 20 Shore 00 RoHS compliant for IT infrastructure

The TIF180-01US is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.

TIF100-01US-Series-Datasheet.pdf

Features

> Good thermal conductive: 1.5 W/mK

>Thickness: 2.0mmT

>hardness:20 shore 00

>Colour: Black

>Naturally tacky needing no further adhesive coating
>Available in varies thicknesses
>Broad range of hardnesses available

Applications

>Automotive electronics

>Set top boxes

>Audio and video components

>IT infrastructure

>GPS navigation and other portable devices

>CD-Rom, DVD-Rom cooling

Typical Properties of TIF180-01US Series
Color
black
Visual
Composite Thickness
Thermal Impedance@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20

Specific gravity
1.9 g/cc
ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness
2.0mmT
***
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness
20 Shore 00
ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Outgasing (TML)
0.35%
ASTM E595
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp
-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Dielectric Breakdown Voltage
>5500 VAC
ASTM D149
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant

2.9 MHz
ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20
Volume Resistivity
1.0X1012
Ohm-cm
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating
94 V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity
1.5 W/m-K
ASTM D5470
Visua l/ ASTM D751
ASTM D5470

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

2.0mmt Thermal Gap Pad Silicone Hardness 20 Shore 00 Rohs Compliant For It Infrastructure

FAQ:

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
