Wholesale Customized High Thermal Conductivity Adhesive Silicone Thermal Pads
Wholesale Customized High Thermal Conductivity Adhesive Silicone Thermal Pads
Wholesale Customized High Thermal Conductivity Adhesive Silicone Thermal Pads
Wholesale Customized High Thermal Conductivity Adhesive Silicone Thermal Pads
Specifications
Brand Name :
ZIITEK
Model Number :
TIF7160HZ thermal pad
Certification :
UL
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
100000pcs/day
Delivery Time :
3-5 work days
Packaging Details :
1000pcs/bag
Name :
Wholesale Customized High Thermal Conductivity Adhesive Silicone Thermal Pads
keyword :
Silicone Thermal Pads
Applications :
GPU CPU Cooling
Material :
silicone
Thermal conductivity :
7.0 W/m-K
Thickness :
4.0mmT
Description

Wholesale Customized High Thermal Conductivity Adhesive Silicone Thermal Pads

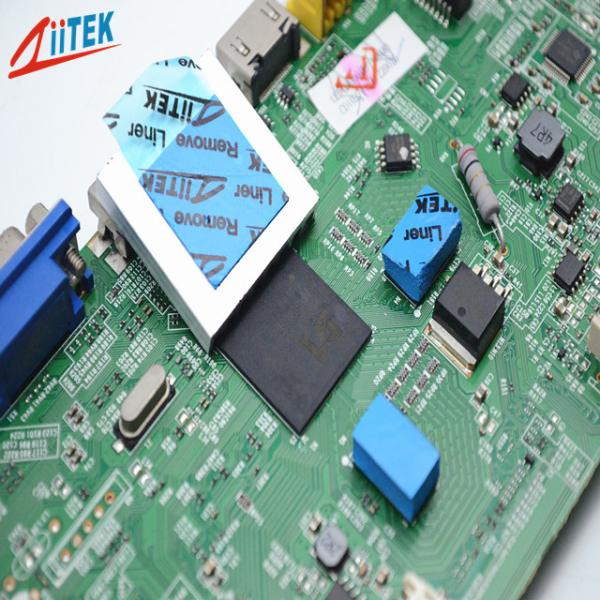

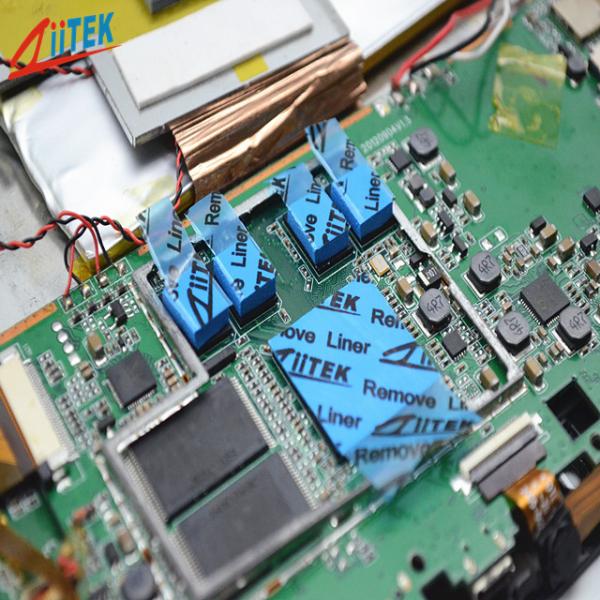

Ziitek TIF7160HZ thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.

TIF700HZ-Series-Datahseet.pdf

Wholesale Customized High Thermal Conductivity Adhesive Silicone Thermal Pads

Features

> Good thermal conductive: 7.0 W/mK

> Thickness: 4.0mmT

> hardness:55±5

> Colour: Blue

> RoHS compliant
> UL recognized
> Fiberglass reinforced for puncture, shear and tear resistance

Applications

> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices

Typical Properties of TIF7160HZ Series
Color
 Blue
Visual
Composite Thickness
Thermal Impedance@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20

Specific gravity

3.45 g/cc

ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness
4.0mmT
***
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness

55±5
ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Thermal conductivity
7.0W/mk
ASTMD5470
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp
-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Dielectric Breakdown Voltage
>5500 VAC
ASTM D149
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant

4.5MHz
ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20
Volume Resistivity
≥ 1.0X1012
Ohm-cm
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating
94 V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity

7.0 W/m-K
GB-T32064
Visua l/ ASTM D751
ASTM D5470

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.

Wholesale Customized High Thermal Conductivity Adhesive Silicone Thermal Pads

FAQ:

Q:How can we get detailed price list?

A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.

Q: What kind of packaging you offer?

A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
