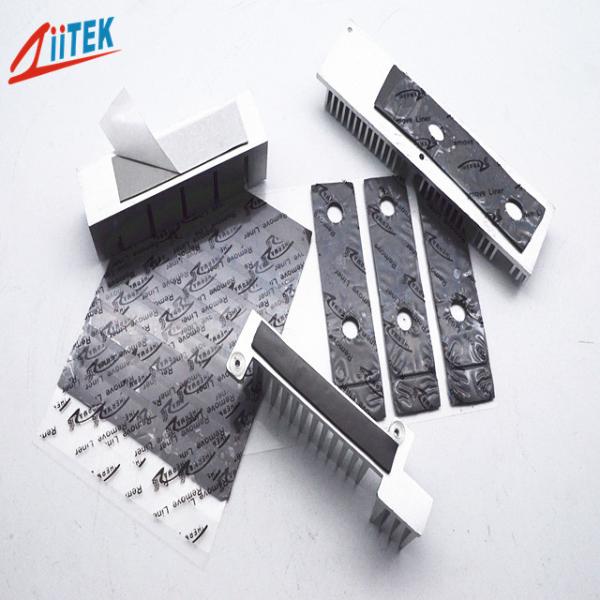

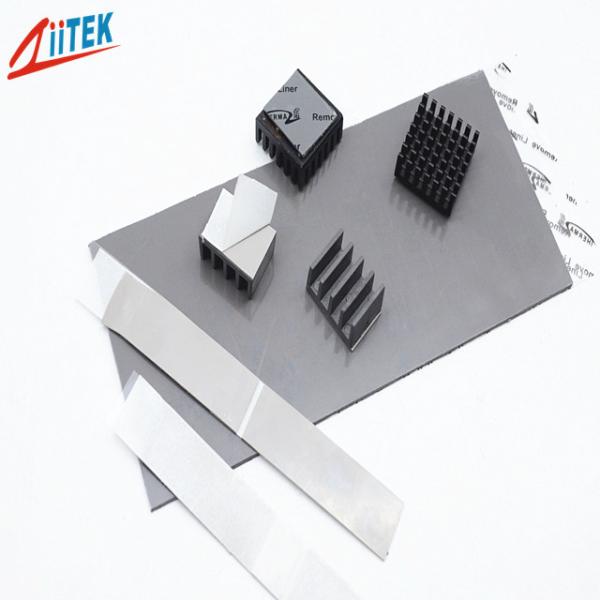

3.0mmT UL Recognized Silicone Sheets For Micro Heat Pipe Thermal Solutions 3.0 W/MK
3.0mmT UL Recognized Silicone Sheets For Micro Heat Pipe Thermal Solutions 3.0 W/MK
3.0mmT UL Recognized Silicone Sheets For Micro Heat Pipe Thermal Solutions 3.0 W/MK
3.0mmT UL Recognized Silicone Sheets For Micro Heat Pipe Thermal Solutions 3.0 W/MK
3.0mmT UL Recognized Silicone Sheets For Micro Heat Pipe Thermal Solutions 3.0 W/MK
3.0mmT UL Recognized Silicone Sheets For Micro Heat Pipe Thermal Solutions 3.0 W/MK
Specifications
Brand Name :
ZIITEK
Model Number :
TIF5120-30-11US
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
1000pcs/bag
Hardness :
20 Shore 00
Specific Gravity :
2.9 g/cc
Dielectric Breakdown Voltage :
>5000 VAC
Fire rating :
94-V0
Construction & Compostion :
Ceramic filled silicone rubber
Tensile Strength :
40 psi
Description

3.0mmT UL recognized silicone sheets For Micro heat pipe thermal solutions 3.0 W/MK


The TIF5120-30-11US Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.

TIF500-30-11US Datasheet-REV02.pdf

Features:
> Good thermal conductive: 3.0 W/mK
>Thickness:3.0mmT

>Easy release construction

>Electrically isolating
>High durability

Applications:

>Micro heat pipe thermal solutions

>Automotive engine control units

>Heat pipe thermal solutions

>Memory Modules

>LED Controller
>LED Ceilinglamp

Typical Properties of TIF5120-30-11US Series
Color

Gray

 Visual Composite Thickness hermalImpedance
@10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone rubber
 *** 10mils / 0.254 mm

0.55
20mils / 0.508 mm

0.82
Specific Gravity

2.9 g/cc

 ASTM D297

30mils / 0.762 mm

1.01

40mils / 1.016 mm

1.11
Thickness

3.0mmT

 ***

50mils / 1.270 mm

1.27

60mils / 1.524 mm

1.45
Hardness
 20 (Shore 00) ASTM 2240

70mils / 1.778 mm

1.61

80mils / 2.032 mm

1.77

Tensile Strength

40 psi

 ASTM D412

90mils / 2.286 mm

1.91

100mils / 2.540 mm

2.05
Continuos Use Temp
 -40 to 160℃

***

110mils / 2.794 mm

2.16

120mils / 3.048 mm

2.29

Dielectric Breakdown Voltage
 >5500 VAC ASTM D149

130mils / 3.302mm

2.44

140mils / 3.556 mm

2.56
Dielectric Constant
 4.0 MHz ASTM D150

150mils / 3.810 mm

2.67

160mils / 4.064 mm

2.77
Volume Resistivity
 1.0X1012
Ohm-meter		 ASTM D257

170mils / 4.318 mm

2.89

180mils / 4.572 mm

2.98
Fire rating
 94 V0

equivalent UL

190mils / 4.826 mm

3.05

200mils / 5.080 mm

3.14
Thermal conductivity
3.0W/m-K ASTM D5470 Visua l/ ASTM D751 ASTM D5470

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)


Consult the factory to alternate thickness.

3.0mmT UL Recognized Silicone Sheets For Micro Heat Pipe Thermal Solutions 3.0 W/MK

Our services

Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.

FAQ:

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: What is your terms of payment ?
A: Payment<=2000USD, T/T in advance. Paying in time and faithful for several months, we can apply other payment term for you, pay together in every month or 30 days.
