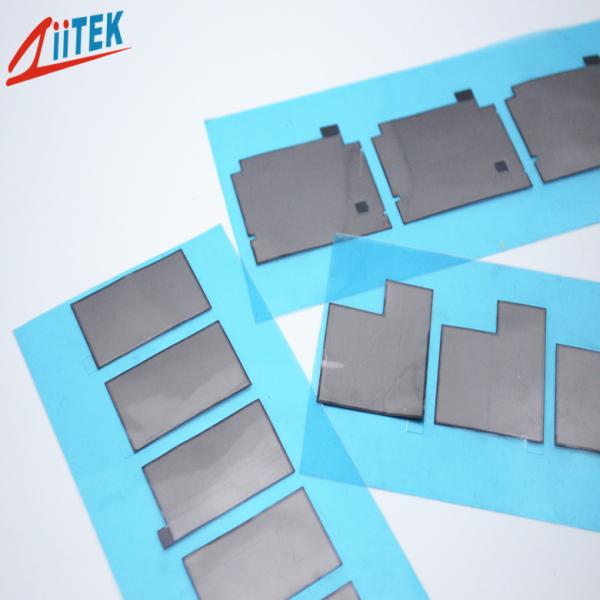

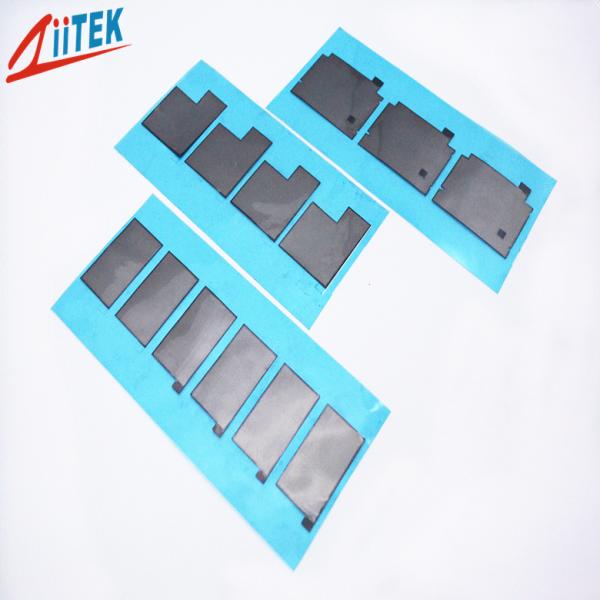

High Performance 85 Shore A Thermal Graphite Sheet 6.0W/MK With 0.25mm Composite Thickness
High Performance 85 Shore A Thermal Graphite Sheet 6.0W/MK With 0.25mm Composite Thickness
High Performance 85 Shore A Thermal Graphite Sheet 6.0W/MK With 0.25mm Composite Thickness
High Performance 85 Shore A Thermal Graphite Sheet 6.0W/MK With 0.25mm Composite Thickness
Specifications
Brand Name :
Ziitek
Model Number :
TIR™610
Certification :
RoHs
Place of Origin :
China
MOQ :
1000PCS
Delivery Time :
2-3 work days
Packaging Details :
1000pcs/bag
Product Name :
High Performance 85 Shore A Thermal Graphite Sheet 6.0W/MK With 0.25mm Composite Thickness
Hardness :
2.2 g/cc
Materials :
Natural graphite
Thermal conductivity (In Z Axis ) :
6.0W/m-K
Thermal conductivity (In X-Y Axis ) :
240W/m-K
Operating Temperature :
-200℃ ～300℃
Color :
Black
Keywords :
Thermal Graphite Sheet
Description

High Performance 85 Shore A Thermal Graphite Sheet 6.0W/MK With 0.25mm Composite Thickness

The TIR™610 Series products are high-performance and heat-conductive interface materials with the reasonable prices. They can be used in applications where no requirement for electric insulation is specified. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained.


Features

Easy to assemble
Ultra-thin type
RoHS Compliant
Thermal Conductivity:240W/mK
Reduce hot spots and protect sensitive areas
Light weight
Flexible
Ease of manufacturing for high volume production

Applications

PDP,LCD TV
Laptop,Notebook,Projector
Mobile phone
Automotive electronics
displays, lighting, telecom
Hand‐held devices
Set top box
LED Power Supply
LED Controller
LED Lights
LED Ceilinglamp
Monitoring the Power Box
AD-DC Power Adapters
Rainproof LED Power Supply
Waterproof LED Power Supply
Piranha wroof and common lED module
LED module for Channelletters
SMD LED module
LED Flesible strip, LED bar
High Performance 85 Shore A Thermal Graphite Sheet 6.0W/MK With 0.25mm Composite Thickness
Typical Properties of TIR™600 series
Product Name TIR™605 TIR™606 TIR™610 TIR™620 Test Method
Colour Black
Material Natural Graphite
Thickness 0.005" (0.127 mm) 0.006" (0.152 mm) 0.010" (0.254 mm) 0.020" (0.508 mm) ASTM D751
Total Thickness +/- 10% +/- 10% +/- 5% +/- 5% ASTM D751
Density 2.2 g/cc 2.2 g/cc 2.2 g/cc 2.2 g/cc ASTM D297
Hardness 85 Shore A ASTM D2240
Operation Temperature -200℃~ 300℃ ******
Volume Resistivity 3.2X10³ Ohm-meter ASTM D257
Typical Thermal Conductivit (In Z axis) 6.0W/m-K 6.0W/m-K 6.0W/m-K 6.0W/m-K ASTM D5470
Typical Thermal Conductivity (In X-Y axis) 240 W/m-K 240 W/m-K 240 W/m-K 240 W/m-K ******
Thermal Resistance @100psi 0.037 (in²℃/W) 0.042 (in²℃/W) 0.057 (in²℃/W) 0.098 (in²℃/W) ASTM D5470

High Performance 85 Shore A Thermal Graphite Sheet 6.0W/MK With 0.25mm Composite Thickness

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.
