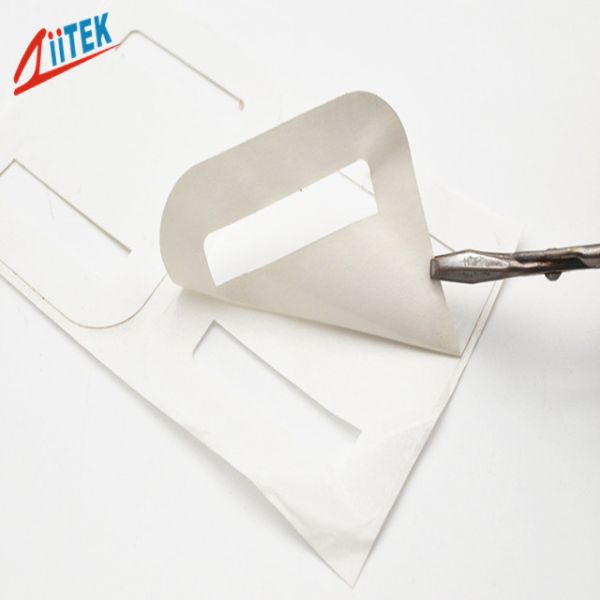

Consumer Electronics Thermal Conductive Adhesive Tape 0.8W/MK Glass Fiber Backing Heat Resistant Tape
Consumer Electronics Thermal Conductive Adhesive Tape 0.8W/MK Glass Fiber Backing Heat Resistant Tape
Consumer Electronics Thermal Conductive Adhesive Tape 0.8W/MK Glass Fiber Backing Heat Resistant Tape
Consumer Electronics Thermal Conductive Adhesive Tape 0.8W/MK Glass Fiber Backing Heat Resistant Tape
Specifications
Brand Name :
Ziitek
Model Number :
TIA815
Certification :
RoHs
Place of Origin :
China
MOQ :
10SQM
Supply Ability :
1000SQM/Day
Delivery Time :
2-3Work day
Packaging Details :
10RL/bag
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Prodcuts name :
Consumer Electronics Thermal Conductive Adhesive Tape 0.8W/MK Glass Fiber Backing Heat Resistant Tape
Thickness :
0.015"(0.38mm)
Adhesive Type :
Acrylic Adhesive
180° Peel Adhesion（gf/inch)Steel,Immediate :
1200
Thermal Conductivity :
0.8W/mK
Voltage Breakdown(V) :
≥4000
Keywords :
Thermal Conductive Adhesive Tape
Application :
Consumer Electronics,LED module
Description

Consumer Electronics Thermal Conductive Adhesive Tape 0.8W/MK Glass Fiber Backing Heat Resistant Tape

The TIA®815 Series is filled with good thermal conductivity ceramic particles, featuring excellent thermal conductivity, strong adhesion and electrical insulation. It is suitable for bonding and fixing electronic components to heat sinks or housings, such as LED modules, power devices, communication equipment and other scenarios. The product is solvent-free, pollution-free, easy to construct, and can replace the traditional combination scheme of screw fixation and thermal conductive grease.


Features

> Thermal Conductivity 0.8W/mK.
> High bond strength to a variety of surfaces
> Double sided pressure sensitive adhesive tape.
> High performance, thermally conductive acrylic adhesive
> Allow for good conformability to irregular surfaces and good electrical isolation
> Easy Application
> Eliminates need for external hardware (screws, clips, etc.)
> Available with easy release tabs

Applications

> Mount heat sink onto BGA graphic processor or drive processor.
> Mount heat spreader onto power converter PCB or onto motor control PCB
> Can be used instead of heat cure adhesive,screw mounting or clip mounting
> Heat sink onto BGA graphic processor
> Heat sink to computer processor
> Heat sink onto drive processor
> LED Power Supply
> LED Controller
> LED Lights
> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power Supply
> Waterproof LED Power Supply
> Piranha wroof and common lED module
> LED module for Channelletters
> SMD LED module
> LED Flesible strip, LED bar
> LED PanelLight

Typical Properties of TIA®800 Series
Product Name TIA®802 TIA®804 TIA®806 TIA®808 TIA®810 TIA®812 TIA®815 Test Method
Color White Visual
Adhesive Type Acrylic Adhesive ******
Continuous Use Temp -40℃ to 125℃ ******
Thickness 0.002" 0.05mm 0.004" 0.10mm 0.006" 0.15mm 0.008" 0.20mm 0.010" 0.25mm 0.012" 0.30mm 0.015" 0.38mm ASTM D374
Voltage Breakdown ≥600 ≥1200 ≥1800 ≥2500 ≥2700 ≥3000 ≥4000 ASTM D149
Thermal Conductivity 0.8 W/mK ASTM D5470
180° Peel Adhesion (gf/inch) Steel, Immediate ≥ 1200 ASTM D3330
180° Peel Adhesionk (gf/inch) Steel, 24 hrs ≥ 1400 ASTM D3330
Holding Power (H/inch) @25℃ ≥ 48 Hours ASTM D3654
Holding Power (H/inch) @80℃ ≥ 48 Hours ASTM D3654
Product Specifications

Standard Thickness:
0.002"(0.05 mm), 0.004"(0.10 mm), 0.006"(0.15 mm),
0.008"(0.20 mm), 0.010"(0.25 mm),0.012"(0.30mm), 0.015"(0.38mm)

Standard Size: 16" x 100" (406 mm x 30.48 M)
Reinforcing Carrier: TIA®800 Series rolls can be reinforced with glass fiber.

The TIA® series can be provided with die-cutting into vaious shapes, For different thicknesses or more information about
thermally conductive materials, please contact our company.
Consumer Electronics Thermal Conductive Adhesive Tape 0.8W/MK Glass Fiber Backing Heat Resistant Tape
Company profile
Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
