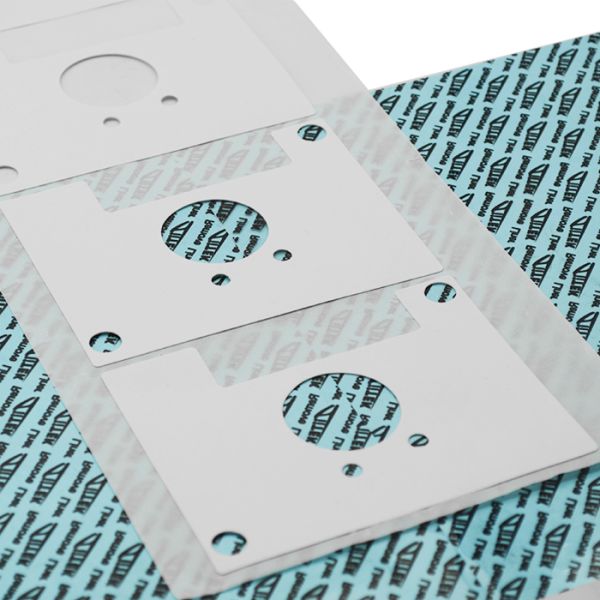

0.3mm Thickness IGBT Heatsink White Thermal Adhesive Tape With Glass Fiber Backing Acrylic
0.3mm Thickness IGBT Heatsink White Thermal Adhesive Tape With Glass Fiber Backing Acrylic
0.3mm Thickness IGBT Heatsink White Thermal Adhesive Tape With Glass Fiber Backing Acrylic
0.3mm Thickness IGBT Heatsink White Thermal Adhesive Tape With Glass Fiber Backing Acrylic
Specifications
Brand Name :
Ziitek
Model Number :
TIA812
Certification :
RoHs
Place of Origin :
China
MOQ :
10SQM
Supply Ability :
1000SQM/Day
Delivery Time :
2-3Work day
Packaging Details :
10RL/bag
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Products name :
0.3mm Thickness IGBT Heatsink white Thermal Adhesive Tape With Glass Fiber Backing Acrylic
Thickness :
0.012"(0.30mm)
Adhesive Type :
Acrylic Adhesive
Color :
White
180° Peel Adhesion(gf/inch) Steel, Immediate :
≥1200
Thermal Conductivity :
0.8 W/mK
Voltage Breakdown（V） :
≥3000
Keywords :
Thermal Adhesive Tape
Description

0.3mm Thickness IGBT Heatsink white Thermal Adhesive Tape With Glass Fiber Backing Acrylic

The TIA®812 Series is filled with good thermal conductivity ceramic particles, featuring excellent thermal conductivity, strong adhesion and electrical insulation. It is suitable for bonding and fixing electronic components to heat sinks or housings, such as LED modules, power devices, communication equipment and other scenarios. The product is solvent-free, pollution-free, easy to construct, and can replace the traditional combination scheme of screw fixation and thermal conductive grease.


Features

> Thermal Conductivity: 0.8 W/mK

> High bonding strength
> Good thermal conductivity efficiency
> Easy to apply and can be die-cut into custom sizes
> Stable operation over a wide temperature range

Applications

> LED module
> Power device
> Consumer electronics
> Communication equipment

Typical Properties of TIA®800 Series
Product Name TIA®802 TIA®804 TIA®806 TIA®808 TIA®810 TIA®812 TIA®815 Test Method
Color White Visual
Adhesive Type Acrylic Adhesive ******
Continuous Use Temp -40℃ to 125℃ ******
Thickness 0.002" 0.05mm 0.004" 0.10mm 0.006" 0.15mm 0.008" 0.20mm 0.010" 0.25mm 0.012" 0.30mm 0.015" 0.38mm ASTM D374
Voltage Breakdown ≥600 ≥1200 ≥1800 ≥2500 ≥2700 ≥3000 ≥4000 ASTM D149
Thermal Conductivity 0.8 W/mK ASTM D5470
180° Peel Adhesion (gf/inch) Steel, Immediate ≥ 1200 ASTM D3330
180° Peel Adhesionk (gf/inch) Steel, 24 hrs ≥ 1400 ASTM D3330
Holding Power (H/inch) @25℃ ≥ 48 Hours ASTM D3654
Holding Power (H/inch) @80℃ ≥ 48 Hours ASTM D3654
Product Specifications

Standard Thickness:
0.002"(0.05 mm), 0.004"(0.10 mm), 0.006"(0.15 mm),
0.008"(0.20 mm), 0.010"(0.25 mm),0.012"(0.30mm), 0.015"(0.38mm)

Standard Size: 16" x 100" (406 mm x 30.48 M)
Reinforcing Carrier: TIA®800 Series rolls can be reinforced with glass fiber.

The TIA® series can be provided with die-cutting into vaious shapes, For different thicknesses or more information about
thermally conductive materials, please contact our company.
0.3mm Thickness IGBT Heatsink White Thermal Adhesive Tape With Glass Fiber Backing Acrylic

Company profile

Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:

Thermal gap pad

Thermal graphite sheet/film

Thermal double-sided tape

Thermal insulation pad

Thermal grease

Phase change material

Thermal gel

All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
