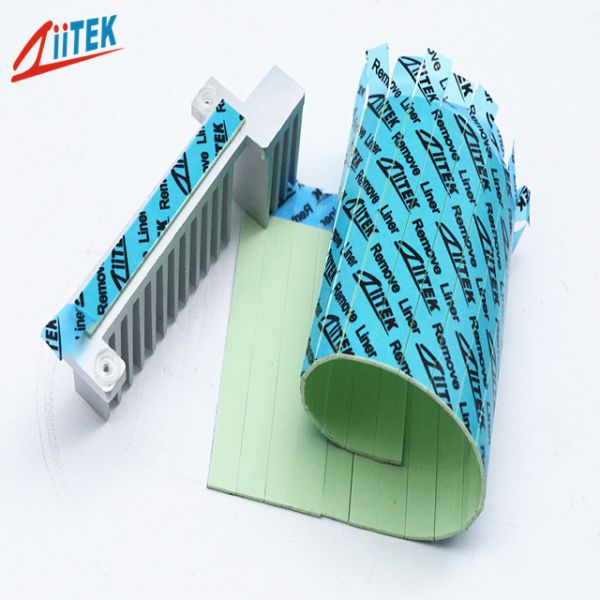

Heat Conductivity Materials Pad Low Thermal Resistance Good Insulating Thermal High Heat Transfer Materials
Heat Conductivity Materials Pad Low Thermal Resistance Good Insulating Thermal High Heat Transfer Materials
Heat Conductivity Materials Pad Low Thermal Resistance Good Insulating Thermal High Heat Transfer Materials
Heat Conductivity Materials Pad Low Thermal Resistance Good Insulating Thermal High Heat Transfer Materials
Specifications
Brand Name :
ZIITEK
Model Number :
TIF140-07E
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiation
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
1000pcs/bag
Payment Terms :
T/T
Products name :
Heat Conductivity Materials Pad Low Thermal Resistance Good Insulating Thermal High Heat Transfer Materials
Hardness :
65/35 Shore 00
Density(g/cm³） :
2.1
Color :
Green
Construction & Compostion :
Ceramic filled silicone elastomer
Dielectric Constant @1MHz :
4.7
Keywords :
Heat Conductivity Materials
Application :
GPU CPU Chip Display Card Heat Transfer
Description

Heat Conductivity Materials Pad Low Thermal Resistance Good Insulating Thermal High Heat Transfer Materials

Products description

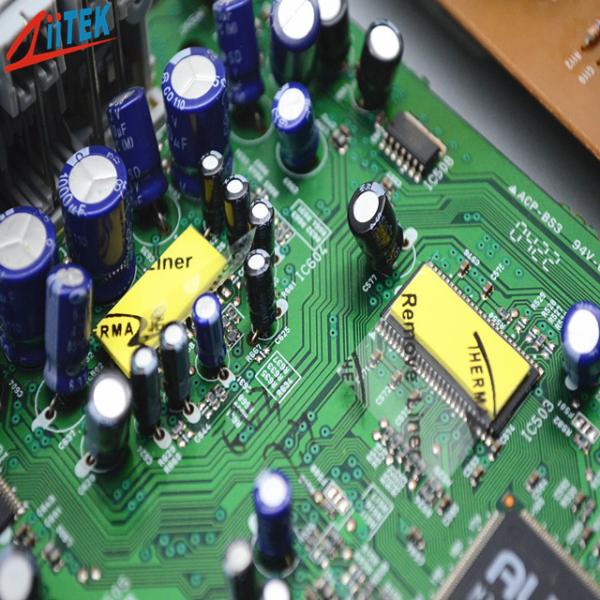

The TIF140-07E thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Features:


> Good thermal conductive: 1.5 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> Good softness and fillability

> Good insulation performance


Applications:


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)

> Medical Devices
> Auditioning electronic products
> unmanned aerial vehicle(UAV)

Typical Properties of TIF®100-07E Series
Property Value Test method
Color Green Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Density(g/cm³) 2.1 ASTM D792
Thickness Range(inch/mm) 0.010~0.020 0.030~0.200 ASTM D374
(0.25~0.50) (0.75~5.00)
Hardness (Shore 00) 65 35 ASTM 2240
Recommended Operating Temperature -40 to 200℃ ******
Breakdown Voltage(V/mm) ≥5500 ASTM D149
Dielectric Constant 4.7 MHz ASTM D150
Volume Resistivity ＞1.0X1012 Ohm-meter ASTM D257
Flame rating V-0 UL 94 (E331100)
Thermal conductivity 1.5 W/m-K ASTM D5470
1.5 W/m-K ISO22007

Product Specification


Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm)with increments of 0.010" (0.25 mm)
Standard Size: 16"X 16" (406 mmX406 mm)


Component Codes:


Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).


The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Heat Conductivity Materials Pad Low Thermal Resistance Good Insulating Thermal High Heat Transfer Materials

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company profile

Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:

Thermal gap pad

Thermal graphite sheet/film

Thermal double-sided tape

Thermal insulation pad

Thermal grease

Phase change material

Thermal gel

All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer
6.Quality assurance contract

Heat Conductivity Materials Pad Low Thermal Resistance Good Insulating Thermal High Heat Transfer Materials
