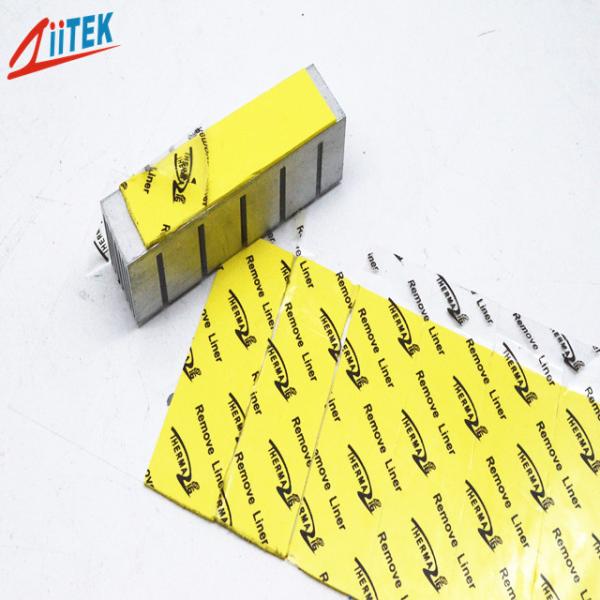

High Quality High Performance Heat Desipition Insulated Thermal gap filler For Electronics Cooling
High Quality High Performance Heat Desipition Insulated Thermal gap filler For Electronics Cooling
High Quality High Performance Heat Desipition Insulated Thermal gap filler For Electronics Cooling
High Quality High Performance Heat Desipition Insulated Thermal gap filler For Electronics Cooling
Specifications
Brand Name :
ZIITEK
Model Number :
TIF160-20-19F
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
1000pcs/bag
Products name :
High Quality High Performance Heat Desipition Insulated Thermal Silicone Pad For Electronics Cooling
Thermal conductivity& Compostion :
2.0 W/m-K
Specific Gravity :
2.7 g/cc
Flame rating :
94-V0
Color :
Yellow
Continuos Use Temp :
-45 to 200℃
Hardness :
45 Shore 00
Keywords :
Thermal gap filler
Application :
Electronics Cooling
Description

High Quality High Performance Heat Desipition Insulated Thermal Silicone Pad For Electronics Cooling

The TIF160-20-19F is an extremely soft gap filling material rated at a thermal conductivity of 2.0W/m-K. It is specially formulated for high performance applications requiring low assembly stress. The material offers exceptional thermal performance at low pressures due to the unique filler package and ultra low modulus resin formulation. Ziitek TIF160-20-19F is highly conformal to rough or irregular surfaces, allowing excellent wet-out at the interface. Protective liners are supplied on both sides allowing for ease of use.


Features:


> Good thermal conductive:2.0 W/mK

> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> RoHS compliant
> UL recognized
> Easy release construction

High Quality High Performance Heat Desipition Insulated Thermal gap filler For Electronics Cooling
Applications:


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Telecommunication hardware
> Handheld portable electronics
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components

Typical Properties of TIF160-20-19F Series
Color Yellow Visual
Construction & Compostion Ceramic filled silicone elastomer *******
Specific Gravity 2.7g/cc ASTM D297
Thickness range 0.020"-0.200"(0.5mm~5.0mm) ASTM D374
Hardness 60 Shore 00 ASTM 2240
Dielectric Breakdown Voltage >5500 VAC ASTM D149
Operating Temp -45 ~200℃ *******
Outgassing(TML) 0.40% ASTM E595
Dielectric Constant 5.0 MHz ASTM D150
Volume Resistivity 1.0X1012Ohm-meter ASTM D257
Fire rating 94 V0 equivalent UL
Thermal conductivity 2.0W/mK ASTM D5470

Standard Thicknesses:

0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.


Standard Sheets Sizes:

8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.
High Quality High Performance Heat Desipition Insulated Thermal gap filler For Electronics Cooling

Company profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
