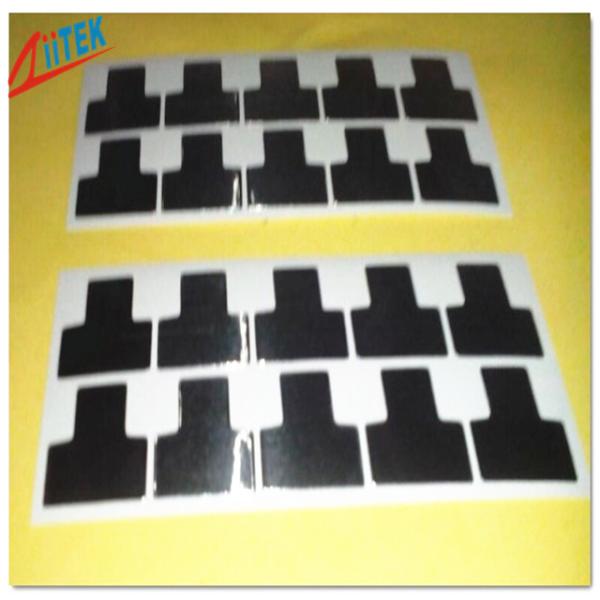

High Thermal Conductivity Ultra Thin Thermal Natural Graphite Gasket Graphite Sheet Manufacturer
High Thermal Conductivity Ultra Thin Thermal Natural Graphite Gasket Graphite Sheet Manufacturer
High Thermal Conductivity Ultra Thin Thermal Natural Graphite Gasket Graphite Sheet Manufacturer
High Thermal Conductivity Ultra Thin Thermal Natural Graphite Gasket Graphite Sheet Manufacturer
High Thermal Conductivity Ultra Thin Thermal Natural Graphite Gasket Graphite Sheet Manufacturer
High Thermal Conductivity Ultra Thin Thermal Natural Graphite Gasket Graphite Sheet Manufacturer
High Thermal Conductivity Ultra Thin Thermal Natural Graphite Gasket Graphite Sheet Manufacturer
High Thermal Conductivity Ultra Thin Thermal Natural Graphite Gasket Graphite Sheet Manufacturer
Specifications
Brand Name :
Ziitek
Model Number :
TIR605
Certification :
RoHs
Place of Origin :
China
MOQ :
1000PCS
Delivery Time :
2-3 work days
Packaging Details :
1000pcs/bag
Products name :
High Thermal Conductivity Ultra Thin Thermal Natural Graphite Gasket Graphite Sheet Manufacturer
Materials :
Natural graphite
Color :
Black
Hardness :
2.2 g/cc
Thermal conductivity (Z Axis Direction) :
6.0W/m-K
Thermal conductivity (X-Y Axis Direction) :
240W/m-K
Operating Temperature :
-200℃ ～300℃
Keywords :
Natural Graphite Gasket
Description

High Thermal Conductivity Ultra Thin Thermal Natural Graphite Gasket Graphite Sheet Manufacturer

The TIRTM605 Series products are high-performance and heat-conductive interface materials with the reasonable prices. They can be used in applications where no requirement for electric insulation is specified. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained.


Features

>Good thermal conductive: 240 W/mK
>Easy to assemble
>Ultra-thin type
>RoHS Compliant


Applications

>PDP,LCD TV,Set top box
>Laptop,Notebook,Projector
>Mobile phone,Hand-held devices
>Automotive electronics

Typical Properties of TIR™600 series
Product Name TIR™605 TIR™606 TIR™610 TIR™620 Test Method
Colour Black
Material Natural Graphite
Thickness 0.005" (0.127 mm) 0.006" (0.152 mm) 0.010" (0.254 mm) 0.020" (0.508 mm) ASTM D751
Total Thickness +/- 10% +/- 10% +/- 5% +/- 5% ASTM D751
Density 2.2 g/cc 2.2 g/cc 2.2 g/cc 2.2 g/cc ASTM D297
Hardness 85 Shore A ASTM D2240
Operation Temperature -200℃~ 300℃ ******
Volume Resistivity 3.2X10³ Ohm-meter ASTM D257
Typical Thermal Conductivit (In Z axis) 6.0W/m-K 6.0W/m-K 6.0W/m-K 6.0W/m-K ASTM D5470
Typical Thermal Conductivity (In X-Y axis) 240 W/m-K 240 W/m-K 240 W/m-K 240 W/m-K ******
Thermal Resistance @100psi 0.037 (in²℃/W) 0.042 (in²℃/W) 0.057 (in²℃/W) 0.098 (in²℃/W) ASTM D5470

Standard Sheets Sizes: 500mm x 50m
TIRTM 600 series Individual die cut shapes can be supplied.
Consult the factory altemate thickness.

High Thermal Conductivity Ultra Thin Thermal Natural Graphite Gasket Graphite Sheet Manufacturer

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.
