Low Compression Thermally Conductive Putty Thermal Gel 3.5W/MK For Vihicel Enginee Controller Cooling
Low Compression Thermally Conductive Putty Thermal Gel 3.5W/MK For Vihicel Enginee Controller Cooling
Low Compression Thermally Conductive Putty Thermal Gel 3.5W/MK For Vihicel Enginee Controller Cooling
Low Compression Thermally Conductive Putty Thermal Gel 3.5W/MK For Vihicel Enginee Controller Cooling
Specifications
Brand Name :
ZIITEK
Model Number :
TIF035-05
Certification :
UL and RoHs
Place of Origin :
China
MOQ :
1000pcs
Price :
negotiation
Supply Ability :
10000/day
Delivery Time :
3-5work days
Packaging Details :
600cc/tube
Product name :
Low Compression Thermally Conductive Putty Thermal Gel 3.5W/MK For Vihicel Enginee Controller Cooling
Density :
3.25g/cc
Fire rating :
94-V0
Color :
blue
Recommended Operating Temp :
-45-200 ℃
Thermal conductivity :
3.5 W/mK
Shelf Life :
12 months
Keywords :
Thermal gel
Description

Low Compression Thermally Conductive Putty Thermal Gel 3.5W/MK For Vihicel Enginee Controller Cooling

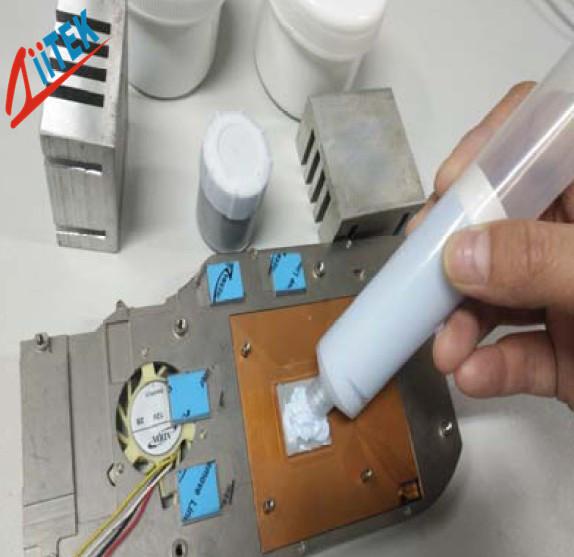

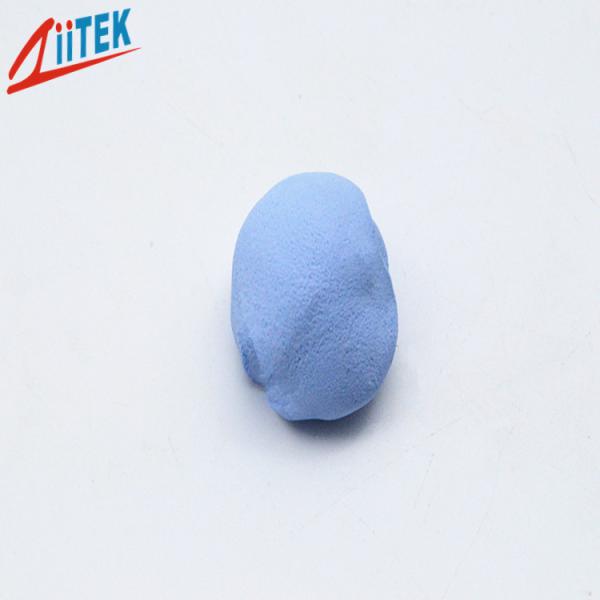

TIF®035-05 is a soft silicone gel-based gap filer pad, formulated with a special blend of filers to provide both excellent thermal conductivity and superior softness. Compared to conventional thermal greases, TIF®035-05 has a higher viscosity, which effectively prevents filler separation from the silicone matrix and reduces filler migration, helping maintain consistent thermal performance. It is applied in a similar manner to thermal grease and is suitable for commercial dispensing or automated equipment. Typical applications include flip-chip microprocessors, PPGAs, micro BGA packages, BGA packages, DSP chips, circular Isilicon chips, LED lighting, and other high-power electronic components.

Feature

>Thermal conductivity: 3.0 W/mK
>Soft, very low compression
>Low thermal impedance
>Operate automatically
>Proven long-term reliability

Application

>Heat-sink & frame
>LED backlight module,LED lighting
>High speed hardware driver
>Micro heat pipe
>Vihicel enginee controller
>Telecom industry
>Semiconductor automatic laboratory equipment

TIF®035-05​ Typical Properties
Property Value Test method
Color Blue Visual
Construction & Composition Ceramic filled silicon material -
Flow Rate(g/min) 30 Ziitek Test Method (30 cc syringe/ 2.5 mm orifice/ 90 psi)
Density(g/cc) 3.25g/c ASTM D297
Thermal conductivity 3.5W/mK ASTM D5470
Thermal Impedance @10psi (℃.in²w) 0.08 ASTM D5470
Thermal Impedance @50psi (℃.in²w) 0.075 ASTM D5470
Recommended Operating Temp -45 ~200°C Ziitek Test Method
Dielectric Strength(V/mm) ≥4000 ASTM D149
Bond Line Thickness(mm) 0.1 Ziitek Test Mothod
Flame Rating V-0 UL 94
Shelf Life 12 months -

Product Specification:

30 cc/pcs, 98 pcs/box; 300 cc/pcs, 6 pcs/box.
Custom packaging available for automation use. Please contact us for confirming.
If you want to know our thermal products, please visit our website.

Low Compression Thermally Conductive Putty Thermal Gel 3.5W/MK For Vihicel Enginee Controller Cooling
