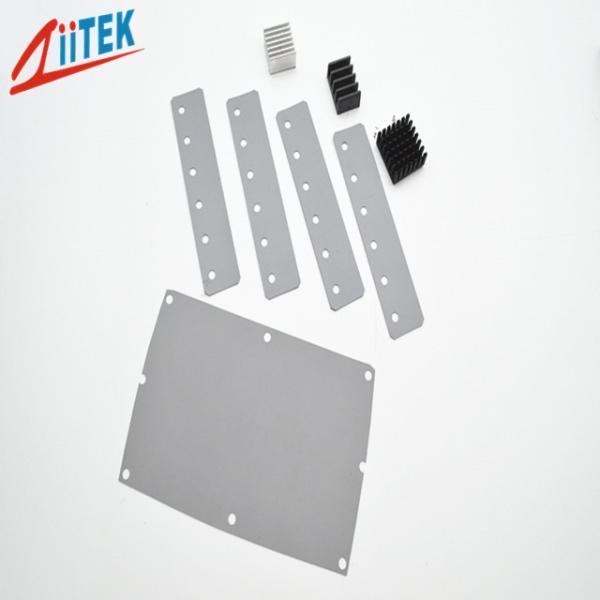

Grey Thermal Conductive Silicone Insulation Soft Pad 0.45mmT For IC Component With Good Insulation
Grey Thermal Conductive Silicone Insulation Soft Pad 0.45mmT For IC Component With Good Insulation
Grey Thermal Conductive Silicone Insulation Soft Pad 0.45mmT For IC Component With Good Insulation
Grey Thermal Conductive Silicone Insulation Soft Pad 0.45mmT For IC Component With Good Insulation
Grey Thermal Conductive Silicone Insulation Soft Pad 0.45mmT For IC Component With Good Insulation
Grey Thermal Conductive Silicone Insulation Soft Pad 0.45mmT For IC Component With Good Insulation
Specifications
Brand Name :
Ziitek
Model Number :
TIS118-01
Certification :
RoHs and UL
Place of Origin :
China
MOQ :
1000PCS
Supply Ability :
100000PCS/Day
Delivery Time :
2-3Word days
Packaging Details :
1000pcs/bag
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Product Name :
Grey Thermal Conductive Silicone Insulation Soft Pad 0.45mmT For IC Component With Good Insulation
Specific Gravity :
2.06 g/cc
Application :
IC Component With Good Insulation
Keywords :
Silicone Insulation Soft Pad
Tensile Strength :
425 Kpsi
Thickness range :
0.45mmT
Color :
Gray
Dielectric Constant @1MHz :
5.5
Description

Grey Thermal Conductive Silicone Insulation Soft Pad 0.45mmT For IC Component With Good Insulation​

The TIS™118-01 products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.


Features


> Soft and High thermal conductive
> High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures


Applications


> Car Battery & Power Supply
> Power semiconductors
> Audio and Video components
> Motor controllers

Typical Properties TISTM118-01 Series
Color Gray Visual
Construction & Composition Ceramic filled silicone elastomer/ Fiberglass ******
Thickness range 0.45mm ASTM D374
Specific Gravity 2.06 g/cc ASTM D297
Tensile Strength 425 Kpsi ASTM D412
Continuous Use Temperature -45~180℃ ******
Dielectric breakdown voltage ＞3500 VAC ASTM D149
Dielectric Constant @1MHz 5.5 MHz ASTM D150
Volume Resistivity ＞4.0x1012 Ohm-cm ASTM D257
Thermal Conductivity 1.0 W/mK ASTM D5470
1.0W/mK ISO22007.2.2
Flame Rating 94 V0 UL E331100

Product Specification


Product Thicknesses
TIS 106-01:0.15mm
TIS 108-01:0.20mm
TIS 109-01:0.23mm
TIS 110-01:0.25mm
TIS 112-01:0.30mm
TIS 118-01:0.45mm


Product Sizes
12" x 160′(304mm x 48.76M)


Individual die cut shapes and custom thickness can be supplied.Please contact us for confirming.
The product come standard with fiberglass reinforcement designated by the suffix " FG".

Grey Thermal Conductive Silicone Insulation Soft Pad 0.45mmT For IC Component With Good Insulation

Company Profile


Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us.

4. We will reply you as soon as possible with Email or online.
