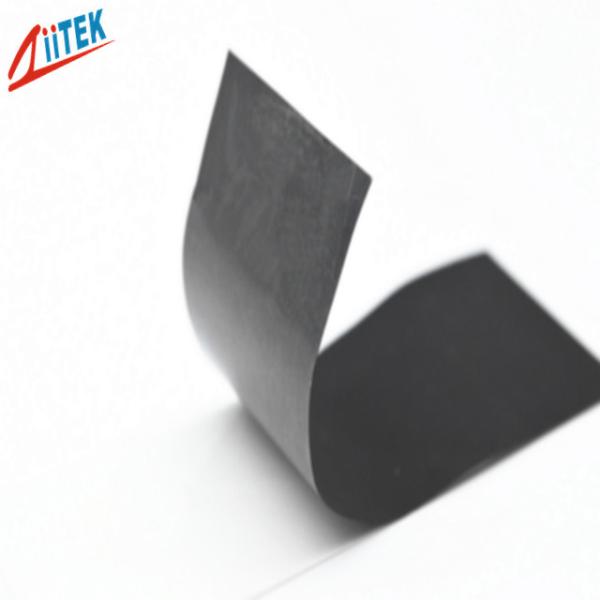

Manufactured Popular 0.06mm Black Thermal Conductive Graphite Sheet 320W/K
Manufactured Popular 0.06mm Black Thermal Conductive Graphite Sheet 320W/K
Manufactured Popular 0.06mm Black Thermal Conductive Graphite Sheet 320W/K
Manufactured Popular 0.06mm Black Thermal Conductive Graphite Sheet 320W/K
Specifications
Brand Name :
Ziitek
Model Number :
TIR360CU-T2
Certification :
RoHS
Place of Origin :
China
MOQ :
1000PCS
Price :
0.1-10 USD/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/month
Delivery Time :
3-8 work days
Packaging Details :
25*24*13cm cantons
Products name :
Manufactured Popular 0.06mm Black Thermal Conductive Graphite Sheet 320W/K
Typical Thermal conductivity(In X-Y axis) :
320W/mK
Feature :
Ultra-thin type
Thickness :
0.060mm
Keywords :
Thermal Conductive Graphite Sheet
Typical Thermal conductivity(In Z axis) :
140W/m-K
ardness :
85 Shore A
Application :
GPU CPU Chip Display Card Heat Transfer
Description

Manufactured Popular 0.06mm Black Thermal Conductive Graphite Sheet 320W/K

TIRTM300CU Series products are a new material with highly effective heat conductivity and absorption, stabilized device function and reduce the chance of malfunction by spreading the high temperature heat radiated from specific parts or devices.

Feature:

> Excellent thermal conductivities :320W/mK

> Easy to assemble

> Ultra-thin type

> RoHS Compliant

Application:

> PDP,LED TV,Set top box

> Laptop,Notebook,Projector

> Mobile phone,Hand-held devices

> Automotive electronics

> LED

> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions

Typical Properties of TIR™300CU Series
Product Name TIR™360CU-T2 TIR™380CU-T2 Test Method
Colour Black ViSual
Material Copper composite carbon nano coating ****
Total thickness 0.060mm 0.080mm ASTM D751
Copper foil Thickness 0.030mm 0.050mm ASTM D751
Single-side coating thickness 0.015mm 0.015mm ASTM D751
Thickness Tolerance +/- 10% +/- 10% ASTM D751
Density 2.7g/cc 2.7g/cc ASTM D297
Hardness 85 Shore A ASTM D2240
Operation Temperature - 40℃ ~ 250℃ ****
Volume Resistivity 6.3X10 Ohm-meter ASTM D257
Tensile Strength 30 psi 40 psi ASTM D412
Typical Thermal Conductivit(ln Z axis) 140W/m-K 140W/m-K ASTM D5470
Typical Thermal Conductivit (ln X-Y axis) 320W/m-k 320W/m-k ASTM D5470
Thermal Resistance @100psi 0.075 (in²℃/W) 0.100 (in²℃/W) ASTM D5470

Standard Sheets Sizes : 500mm x 50m

TIR™ 300CU series Individual die cut shapes can be supplied.Consult the factory alternate thickness.
Manufactured Popular 0.06mm Black Thermal Conductive Graphite Sheet 320W/K

Company profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract

FAQ:

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
