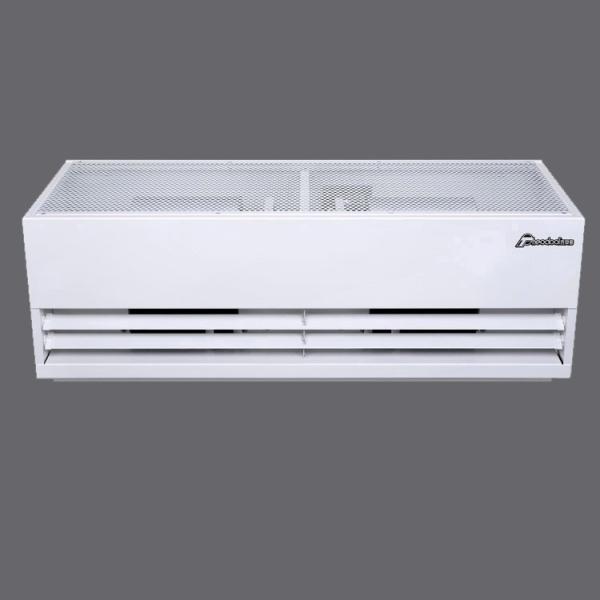

Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse
Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse
Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse
Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse
Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse
Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse
Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse
Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse
Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse
Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse
Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse
Industrial Air Curtain with Powerful Air Volume 30m/s 380V Power Supply and 2600-6500CFM for Factory Warehouse
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Theodoor
Model Number :
FM-6509A
Certification :
CCC
MOQ :
10
Price :
$299
Blade Material :
Cast Iron
Fan Material :
Aluminum
Cover Material :
Galvanized Steel
Fan Type :
Centrifugal
Power Supply :
380V
Air Volume :
2600-6500CFM
Air Velocity :
30m/s
Motor Power :
1350-3400W
Noise Level :
70-74dB
Effective Distance :
7-8m
Fan Wheel Diameter :
Φ160mm
Dimensions :
900-2000x352x306mm
Number of Fans :
2-5pc
Voltage Frequency :
380V/60Hz
Mounting Type :
Wall Fan
Description
Product Description

Industry Air Curtain Powerful Air Volume 30m/s For Factory Warehouse Terminal Opening Door

Fine workmanship

The square reinforced structure is made from galvanized steel with powder coated, sturdy and durable which is never being deformed.

Powerful airflow

Centrifugal Metal fan blower (Fan diameter Φ160) supply powerful airflow. Large air outlet and higher air velocity reach up to 30m/s create more sufficient air volume.

Stable performance

The centrifugal turbine fan is made from steel which is safe and durable. The high velocity powerful motor can meet the higher installation and special environments.

Extra wind force Air Curtain for special situations.

Application: installation in plant, cold storage, garage, workshop and other industries use.

Specifications:

Model

Dia. of fan wheel
(mm)

Dimension
(mm)

Voltage

Frequency
(V /Hz)

Motor power
(W)

Air volume
(m3/h)

Air velocity
(m/s)

number

of fan
(pc)

Noise (dB)

Effective
(m)

FM-6509A

Φ160

900*352*306

380 /60

1350

4510

30

2

70

7-8

FM-6510A

1000*352*306

380 /60

1450

4950

30

2

70

7-8

FM-6512A

1200*352*306

380 /60

2100

6760

30

3

71

7-8

FM-6515A

1500*352*306

380 /60

2700

9000

30

4

72

7-8

FM-6518A

1800*352*306

380 /60

2900

10000

30

4

73

7-8

FM-6520A

2000*352*306

380 /60

3400

11200

30

5

74

7-8

Company Information

FAQ

What's the main functions of Air Curtain?

1. Dust-proof, insect prevention

2. Isolate the smell

3. Energy saving

4. Comfortable heating

How to select suitable air curtain?

There are many factors that we have to consider when selecting an air curtain, some of which are listed below:

1. Application

2. Door height

3. Door width

4. Outside wind

5. Building static pressure

6. Door structure

7. Ambient temperature

8. Air curtain size

9. Air curtain design and look

10. Noise level

11. Power consumption
