Specifications
Place of Origin :
Guangdong, China
Brand Name :
Theodoor
Model Number :
FM-3515S-L
MOQ :
10
Price :
$399
Mounting Type :
Wall / Window Mount

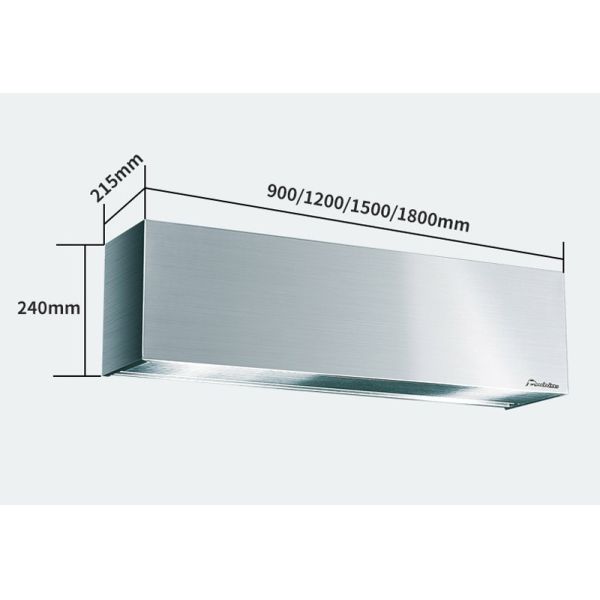

Dimension :
1500x215x240mm
Weight :
25 KG
Material :
Stainless steel 304
Air speed :
16-20m/s
Fan type :
Centrifugal Fan
Available sizes :
900, 1000, 1200, 1500, 1800mm
Speed settings :
2-speed
Voltage/Frequency :
220v/50Hz
Input power (Hi) :
380W
Input power (Lo) :
350W
Air flow (Hi) :
1900 m3/h
Air flow (Lo) :
1500 m3/h
Noise level (Hi) :
55 dB
Noise level (Lo) :
52 dB
Description
Product Description

Stainless Steel SS304 FM-3515S-L Residential Air Curtain For 2.5-4m Door

Features:

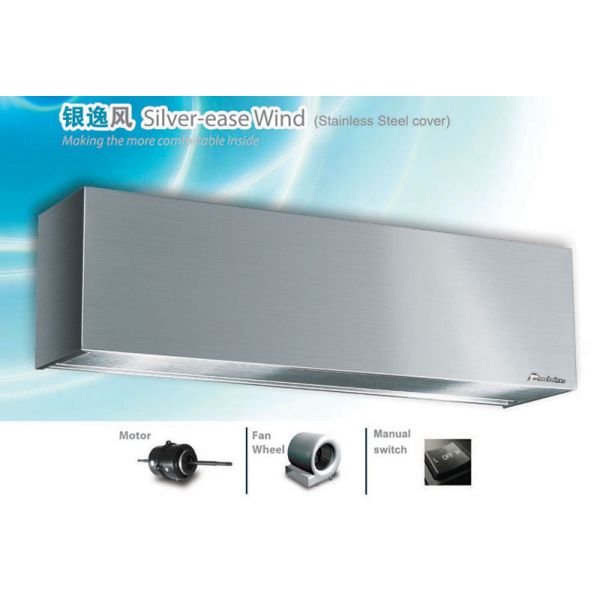

1) Switch
2) Two speeds
3) Stainless steel cover
4) Centrifugal type air flow
5) Applications: 3-4m doors
6) Available size: 900mm, 1,000mm, 1,200mm, 1,500mm, 1,800mm

Specifications:

Model

Size

(mm)

Volt./ Freq.

Input power(W)

Air flow

(m3/h)

Air speed

(m/s)

Noise

(dB)

N.W(kg)

Hi

Lo

Hi

Lo

Hi

Lo

FM-3509S-L

900x215x240

220v/50Hz

230

200

1100

900

13-16

52

49

14

FM-3510S-L

1000x215x240

250

220

1200

1000

52

49

15

FM-3512S-L

1200x215x240

290

260

1500

1200

53

50

18.5

FM-3515S-L

1500x215x240

380

350

1900

1500

55

52

25

FM-3518S-L

1800x215x240

450

420

2200

1800

57

54

30

FM-4009S-L

900x215x240

220v/50Hz

300

270

1400

1000

16-20

57

54

14

FM-4010S-L

1000x215x240

320

290

1550

1100

57

54

15

FM-4012S-L

1200x215x240

400

370

1900

1500

57

55

18.5

FM-4015S-L

1500x215x240

500

470

2300

1900

58

55

25

FM-4018S-L

1800x215x240

600

570

2850

2250

61

58

30

Easy clean and fireproof

Stainless steel (304) covers, stronger and rust-proof, easy clean;

Luxury materials

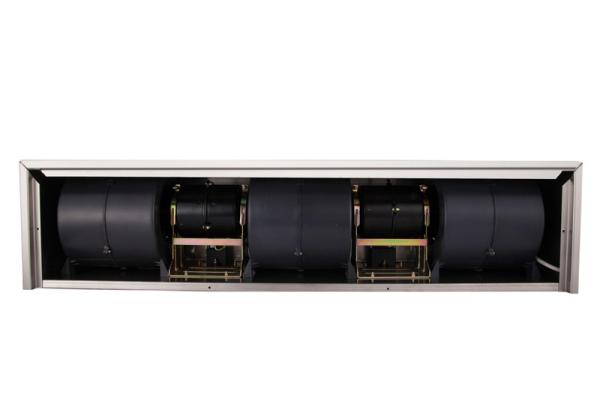

Low noise centrifugal turbine fan, high velocity motor and apply quality bearing. Create powerful air pressure and durable operation.

Easy operation

Air inlet from top design, with special air deflector design and air direction is adjustable.

Selectable high and lower air velocity controlled by remote control or key switch.

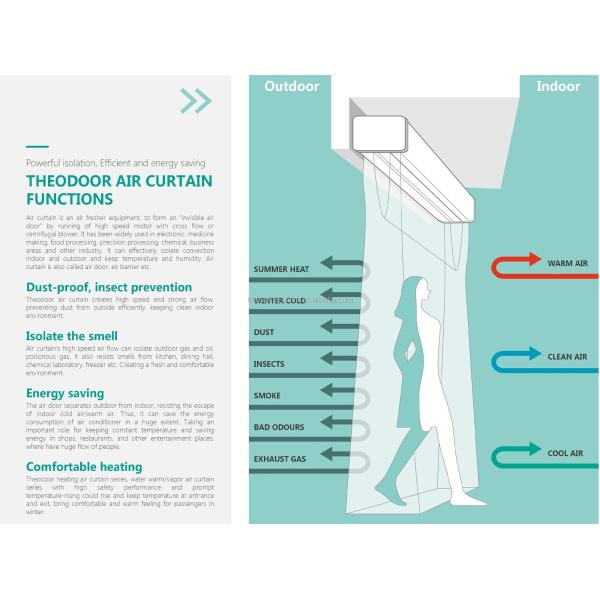

Application: for waiting rooms, food factories, hotel kitchens and bakeries etc.

SS304 Stainless Steel Air Curtain 1500mm for 2.5-4m Doors

SS304 Stainless Steel Air Curtain 1500mm for 2.5-4m DoorsSS304 Stainless Steel Air Curtain 1500mm for 2.5-4m Doors

SS304 Stainless Steel Air Curtain 1500mm for 2.5-4m DoorsSS304 Stainless Steel Air Curtain 1500mm for 2.5-4m Doors

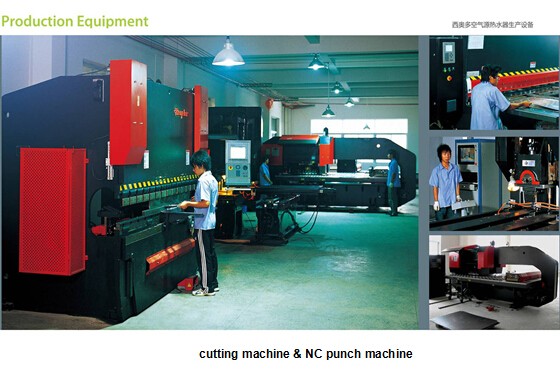

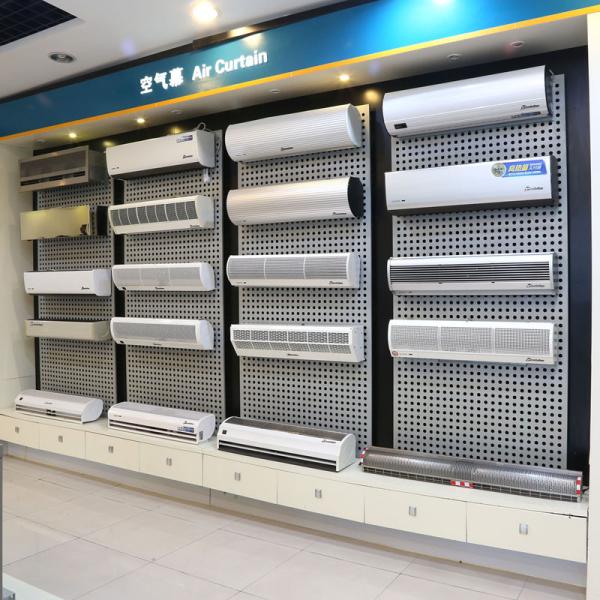

Factory information:
Theodoor Company is a professional manufacturer engaged in the research, development, production, sale and service of Air curtain, Heat pump water heater and ventilating system. We supply many series of products, suitable for different environments; with superior performance, attractive design and fine workmanship. Theodoor has gained ISO9001 international quality management system and ISO14001 Environmental management system certification. The products are qualified with CCC, CE, ROHS and UL certifications.
