S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor
S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor
S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor
S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor
S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor
S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor
S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor
S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor
S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor
S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor
S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor
S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Theodoor
MOQ :
50
Price :
$89-100
Mounting Type :
Wall / Window Mount
Motor Type :
AC Motor
Weight :
15 kg
Fan Type :
Centrifugal type air curtain
Cover Material :
Aluminum
Power Supply :
220-240/110V 50/60HZ
Fan Speed :
2 Speeds
Control Type :
Button+Remote
Color :
White
Input Power :
200-400W
Air Volume :
790-2360 m3/h
Air Speed :
11.5-14.5 m/s
Noise Level :
<51-57 dB
Net Weight :
12-24 kg
Size :
900-2000x198x215 mm
Description
Product Description

New Air Curtain Product S7 Series From 0.9m to 2m Door Centrifugal Fan

Aluminum alloy elegant design

Apply aluminum cover combine with ABS, compact and elegant, light and durable, never rusty.

Evenly air delivery, high performance

Compact size, powerful performance. Apply centrifugal turbine fans which produce high air velocity and low noise. New design turbine fans increase the air volume and air pressure effectively. Combine with pure copper high performance motor, the product can be running for 8000 hours continuous.

New workmanship, shock resistance

3N design (new air duct, new turbine fan, and new connection process of motor), enable the product is shock resistance. Provide safety and reliability during transportation and long term use.

Easy control, updated configuration

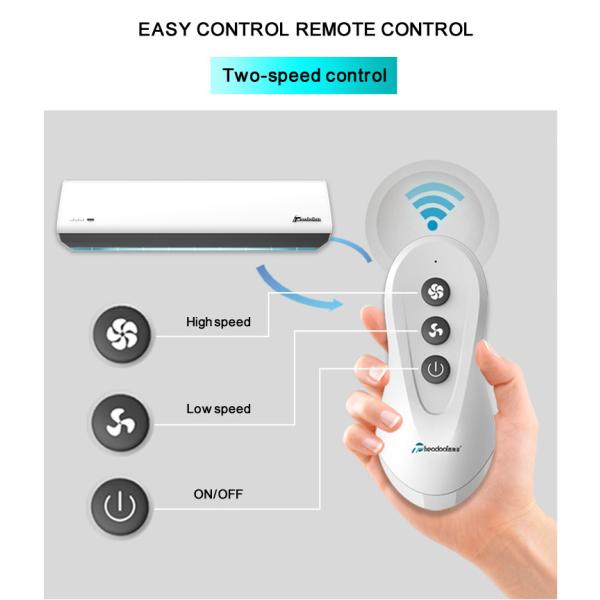

Special air guide plate design, with adjustable air direction provide thicker air barrier. Available with new remote control and key switch; with selectable high and lower air velocity.

Application: for high grade restaurants, hotels, clubs, shops and commercial buildings etc.

Coverage door height: 2.5-3.2m.

S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor

S7 Series Air Curtain 0.9m to 2m Door 220-240V AC MotorS7 Series Air Curtain 0.9m to 2m Door 220-240V AC MotorS7 Series Air Curtain 0.9m to 2m Door 220-240V AC MotorS7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor

Specifications:

Model

Voltage

Input power

Air Volume

Air Speed

Noise

Net W.

Size

V/ HZ

(W)

(m3/h)

(m/s)

(db)

(Kg)

(mm)

Hi

Low

Hi

Low

Hi

Low

Hi

Lo

FM-3209-L/Y

220~50

200

170

1030

790

14.5

11.5

<51

<48

12

900x198 x215

FM-3210-L/Y

210

180

1130

870

<51

<48

12.5

1000x198 x215

FM-3212-L/Y

260

230

1400

1080

<52

<49

14.5

1200x198 x215

FM-3215-L/Y

330

300

1780

1370

<54

<52

18

1500x198 x215

FM-3218-L/Y

390

360

2140

1640

<56

<53

21.5

1800x198 x215

FM-3220-L/Y

400

370

2360

1820

<57

<55

24

2000x198 x215

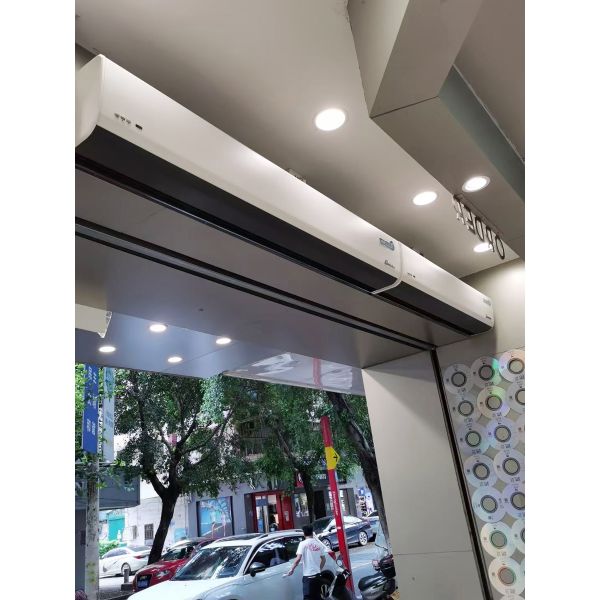

Applications: door entrance

Business Organizations

Supermarket, shopping malls, chain shops, department store, hotels, restaurants;

Public Places

subway, airports, stations, bookstores, exhibition halls, stadiums, museums,

commercial buildings, hospital;

Entertainments

Movie theaters, clubs, bars, cafes, Internet bars, beauty shops.

S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor

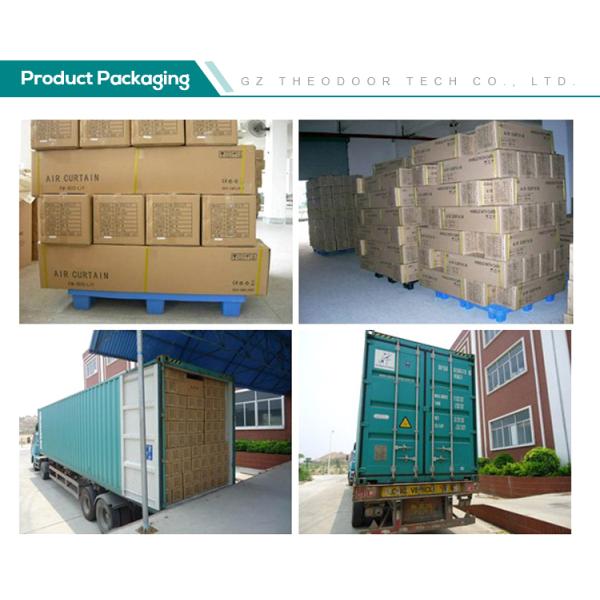

Packaging & Shipping

S7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor

Company Information

S7 Series Air Curtain 0.9m to 2m Door 220-240V AC MotorS7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor

Why choose us:

Experience: More than 23 years manufacture & export experience. More than 100 models air curtain, suitable for different environments.

Engineer: Professional R&D and engineer teams focus on Air curtain.

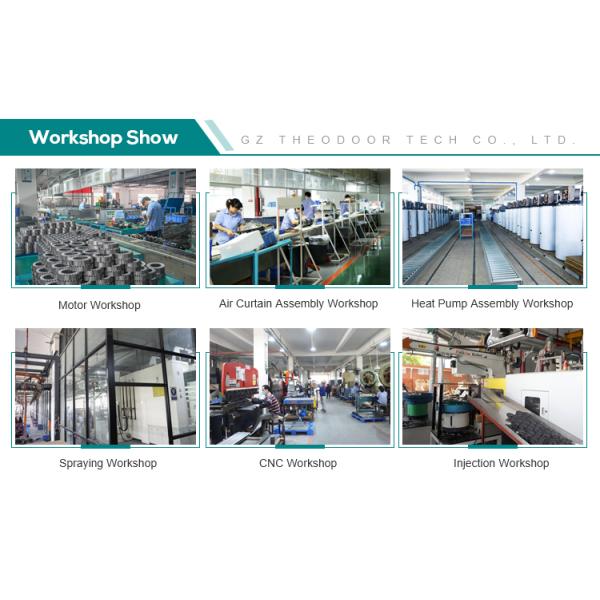

Machinery & technology: Advanced mould machines and equipments ensure products performance and reliability.

Materials and Quality: At every stage, from raw materials to the end products we insist on results: safety, efficiency, energy conservation and environmental protection, and our rigorous testing ensure that we reach standards higher than similar products. We want consumers to depend on the precision and reliability of our Air Curtain machinery.

Quality control: 100% product performance testing.

Cost saving: We provide long-life and high reliability air curtains with excellent quality and better performance, resulting in increased cost saving.

Feedback customers queries promptly: Customers are always given quick support.

S7 Series Air Curtain 0.9m to 2m Door 220-240V AC MotorS7 Series Air Curtain 0.9m to 2m Door 220-240V AC MotorS7 Series Air Curtain 0.9m to 2m Door 220-240V AC Motor
