Specifications
MOQ :
100
Price :
$199
Voltage/Frequency :
220V/50-60Hz
Size :
900x190x230mm to 2000x219x263mm
Length :
900mm to 2000mm
Air velocity :
9-11m/s to 9-13m/s
Air volume :
1400m3/h to 4400m3/h
Noise level :
55dB to 73dB
Power :
160W to 450W
Net weight :
10.5kg to 27kg
Motor type :
High efficient motor
Operation time :
5000h continuous
Shell material :
Stainless steel (SS304)
Control type :
Remote control/key switch
Air flow :
Stable & even
Body design :
Super thin
Protection :
Overheat protector
Description

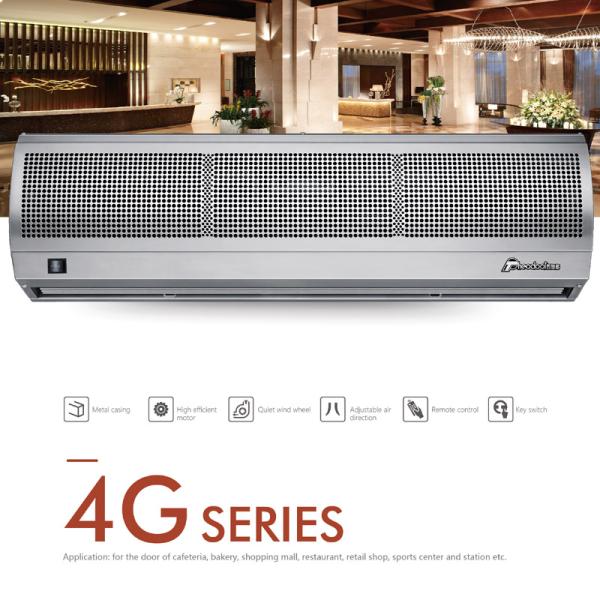

Indoor Air Conditioning Equipment Cross Flow Type SS304 Air Strip Hanging Door Curtain

Product Description

Application: for the door of cafeteria, bakery, shopping mall, restaurant, retail shop, sports center and station etc.

Elegant appearance

Full metal (or stainless steel) shell with super thin body design, easy clean and never rusty.

Stable performance

The high efficient motor, with overheat protector and has safety operate continuously 5000h without failure.

Low noise operation

The optimized fan wheel provides stable & even air flow.

Easy operation

Adopting remote control or key switch, it’s able to adjust high and low air speed.

SS304 Cross Flow Air Curtain 900mm 1600m3/h for Commercial Doors

Technical specifications

Model

Volt/frequency
(v/hz)

Size
(mm)

Length
(mm)

Air velocity
(m/s)

Air volume
(m3/h)

Noise
(dB)

Power
(w)

Net
weight

FM-1209S2

220v/50-60hz

900x190x230

900

9-11

1400

55

160

10.5

FM-1210S2

220v/50-60hz

1000x190x230

1000

9-11

1600

56

180

11

FM-1212S2

220v/50-60hz

1200x190x230

1200

9-11

1900

56

190

13.5

FM-1215S2

220v/50-60hz

1500x190x230

1500

9-11

2500

57

230

16.5

FM-1218S2

220v/50-60hz

1800x190x230

1800

9-11

3200

58

300

19.5

FM-1220S2

220v/50-60hz

2000x190x230

2000

9-11

3600

59

350

22.5

FM-1509S2

220v/50-60hz

900x219x263

900

9-13

2000

67

230

15

FM-1512S2

220v/50-60hz

1200x219x263

1200

9-13

2800

69

350

19

FM-1515S2

220v/50-60hz

1500x219x263

1500

9-13

3600

71

430

23

FM-1518S2

220v/50-60hz

1800x219x263

1800

9-13

4400

73

450

27

What is Air Curtain?

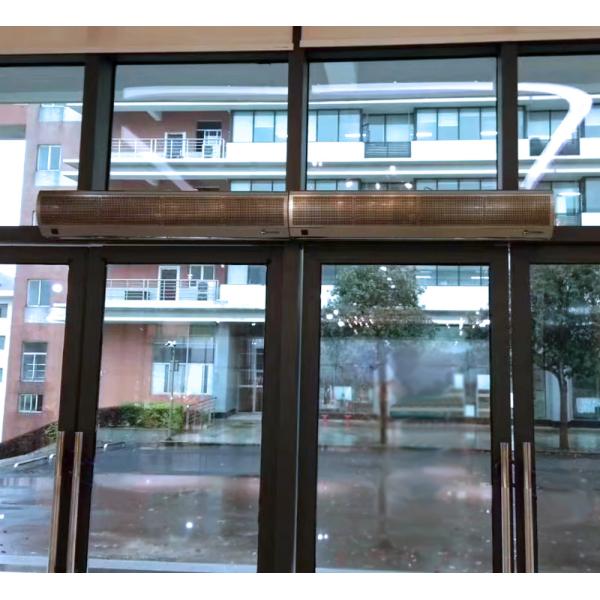

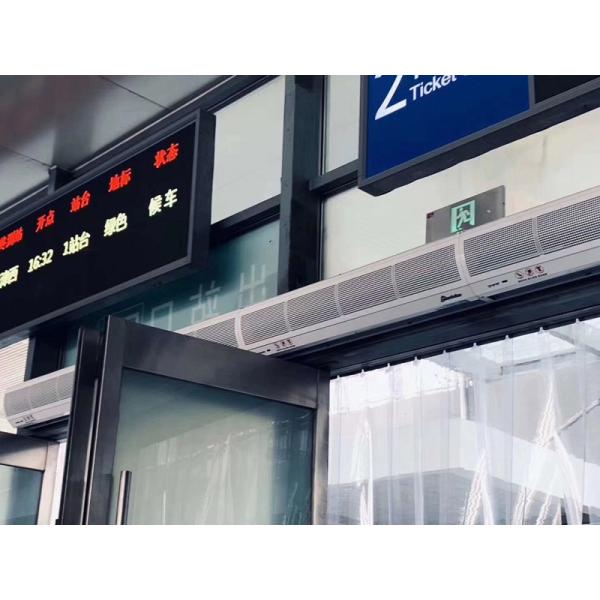

Theodoor Air curtain is installed above the entryway of store, restaurant, hotel...etc. It can effectively isolate convection indoor and outdoor and keep temperature and humidity. Especially used in the location with air conditioner to keep indoor environment and save energy of refrigeration equipment. In addition, Air Curtain can prevent the invasion of dust, pest and harmful fumes from outside. In this way, a comfortable indoor climate is maintained.
