2024 SS304 Silver Ceiling large air volume Recessed Air Curtain Doors
2024 SS304 Silver Ceiling large air volume Recessed Air Curtain Doors
2024 SS304 Silver Ceiling large air volume Recessed Air Curtain Doors
2024 SS304 Silver Ceiling large air volume Recessed Air Curtain Doors
2024 SS304 Silver Ceiling large air volume Recessed Air Curtain Doors
2024 SS304 Silver Ceiling large air volume Recessed Air Curtain Doors
2024 SS304 Silver Ceiling large air volume Recessed Air Curtain Doors
2024 SS304 Silver Ceiling large air volume Recessed Air Curtain Doors
Specifications
Brand Name :
Theodoor
Model Number :
FM-35**CS
Certification :
ISO 9001, ISO14001, CCC, CE,
Place of Origin :
China
MOQ :
50pcs
Price :
negotiation
Payment Terms :
T/T or L/C at sight
Supply Ability :
10,000pcs per month
Delivery Time :
25 working days after received the payment
Packaging Details :
Corrugated carton
Product Name :
Ceiling Wind Air Curtain
Application :
For door, entryway
Supplied :
220v-50/60Hz
Type :
Single cooling, has at least 2 motors
Length :
90cm, 100cm, 120cm, 150cm, 180cm
Color :
Silver (stainless steel)
Air speed :
13-16m/s, 16-20m/s
Description

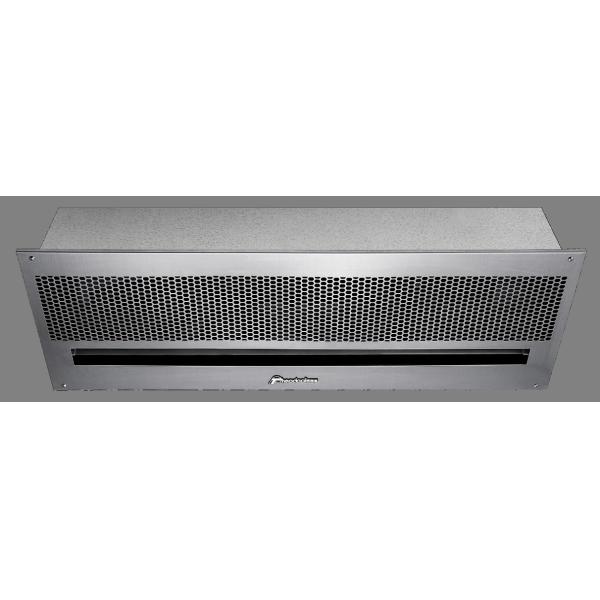

Stainless Steel Cover Ceiling Wind Commercial Air Curtain Recessed type​

Specifications:

Model

Size

(mm)

Volt./ Freq.

Input power(W)

Air flow

(m3/h)

Air speed

(m/s)

Noise

(dB)

N.W (kg)

Hi

Lo

Hi

Lo

Hi

Lo

FM-3509CS

900x235X320

220v/50Hz

230

200

1100

900

13-16

52

49

17

FM-3510CS

1000x235X320

250

220

1200

1000

52

49

19

FM-3512CS

1200x235X320

290

260

1500

1200

53

50

22

FM-3515CS

1500x235X320

380

350

1900

1500

55

52

27

FM-4009CS

900x235X320

220v/50Hz

300

270

1400

1000

16-20

57

54

17

FM-4010CS

1000x235X320

320

290

1400

1000

57

54

18

FM-4012CS

1200x235X320

400

370

1900

1500

58

55

22

FM-4015CS

1500x235X320

500

470

2300

1900

61

58

27

Feature:

1. The bottom air-inlet and air-outlet designed for our ceiling air curtain makes it suitable for installation in

the ceiling.

2. The stainless steel design of the outer casing is easy to clean and has high performance fire protection.

3. Adopting high-performance motor, safe and reliable; Centrifugal turbine creates higher air velocity;

4. Adopting updated remote control with high and low speeds operation;

5. Installation height: 3-4m

Stainless Steel Air Curtain:

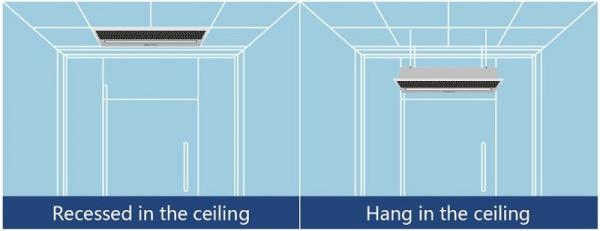

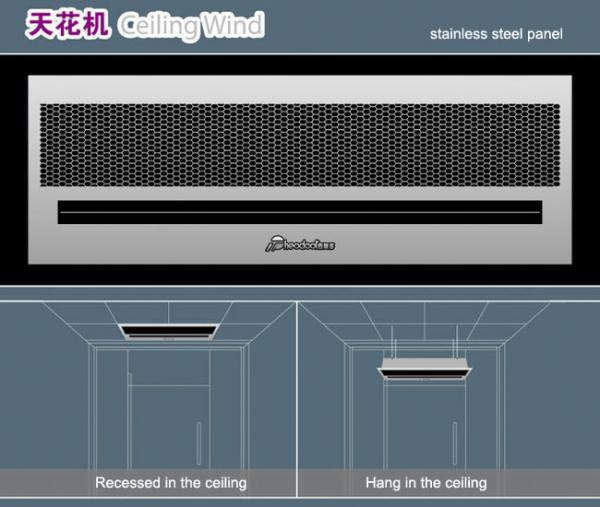

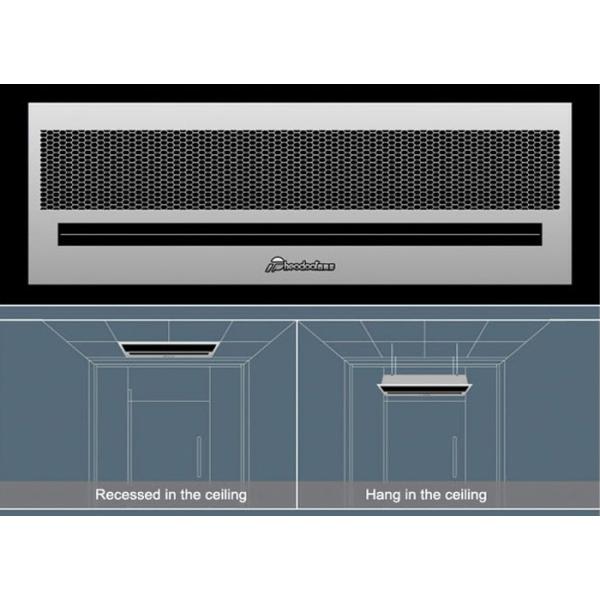

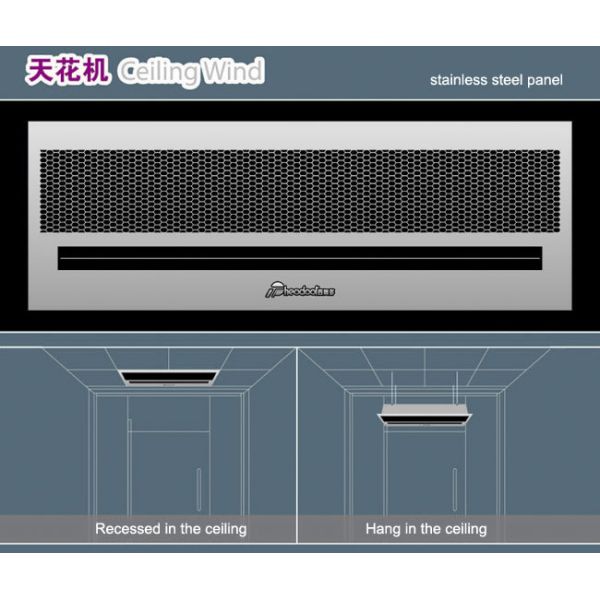

Recessed in the ceiling designed, suitable for simple glass door and the side without enough space and

special environment.
Stainless steel covers design, high quality performance.
Available size: 900mm, 1,000mm, 1,200mm, 1,500mm
