Specifications
Brand Name :
THLB
Model Number :
6.4V 1.8Ah LiFePO4 Battery pack
Place of Origin :
China
MOQ :
10
Price :
CN¥17.29-18.68
Battery Size :
18650
Application :
Toys, Power Tools, Home Appliances, Consumer Electronics, Boats, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, BOATS
Weight :
43g
Type :
lifepo4
Voltage :
6.4V
Capacity :
1.8Ah
Category :
Rechargeable Batteries pack
Cycle Characteristic :
3000 times
Working Temperature :
-20°C~60°C
Battery Weight :
11.5 kg
Anode Material :
LFP
The charging ratio :
0.5C
The discharge rate :
5C
Packaging Details :
Standard Packaging
Delivery Time :
7-15 Working Days
Description

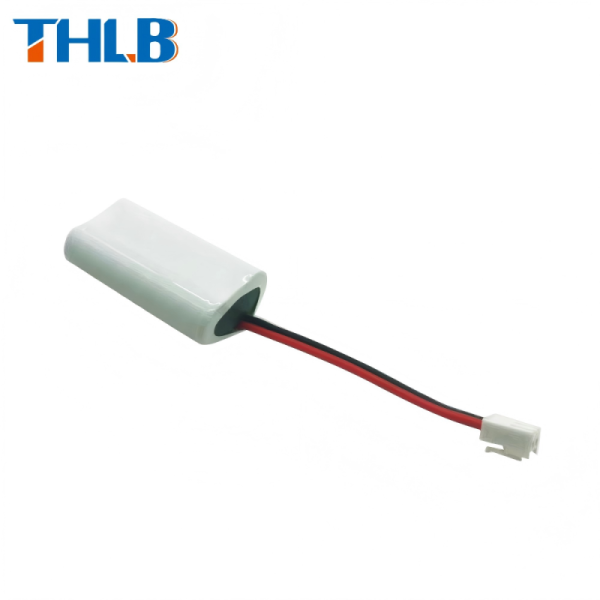

OEM 6.4V 1.8AH 18650 2S1P Rechargeable and High Energy Density Robot, E-bike, Hover Board with PCM Lithium-ion Battery
Product Parameters
OEM 2S1P THLB Battery Rechargeable PCM Lithium Battery 6.4V 1.8AH 18650
OEM 2S1P THLB Battery Rechargeable PCM Lithium Battery 6.4V 1.8AH 18650
OEM 2S1P THLB Battery Rechargeable PCM Lithium Battery 6.4V 1.8AH 18650
MAIN KIT INCLUDES
1 x 6.4V1.5Ah LiFePO4 Battery Module
1 x 2S-3A PCM
1 x Molex5557-2P
PRODUCT SPECIFICATION
Normal Voltage
6.4V
Normal Capacity
1.8Ah
Battery Energy
9.6Wh
Inner Resistance
< 20mΩ

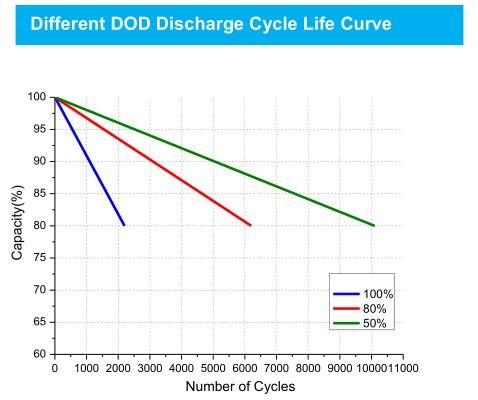

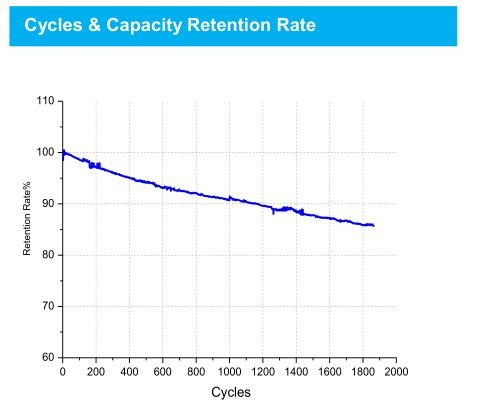

Battery Cycle Life
2000 Times @100%DOD
6000 Times @80%DOD
Cell Configuration
LiFePO4 18650 3.2V 1800mAh-2S1P
Reference Battery Size
(φ18.6±2)mm *(135±2)mm
Reference Battery Weight
88±2g
Battery Encapsulation
PVC
Operation Temperature Range
Charge: 0'C---45'C
Discharge : -20'C---60'C
Battery Storage Temperature
-20'C---25'C
Individual Cell Approval
CE / RoHS / UN38.3 / UL 1642 / IEC 62133 / CB / KC / BIS
OEM 2S1P THLB Battery Rechargeable PCM Lithium Battery 6.4V 1.8AH 18650
OEM 2S1P THLB Battery Rechargeable PCM Lithium Battery 6.4V 1.8AH 18650
OEM 2S1P THLB Battery Rechargeable PCM Lithium Battery 6.4V 1.8AH 18650
OEM 2S1P THLB Battery Rechargeable PCM Lithium Battery 6.4V 1.8AH 18650
OEM 2S1P THLB Battery Rechargeable PCM Lithium Battery 6.4V 1.8AH 18650

Safety performance classification

(1) Resistance to heavy loads. The battery pack shall be tested according to the regulations and shall not ignite or explode.

(2) Resistance to thermal shock. The battery pack shall be tested according to the regulations and shall not ignite or explode.

(3) Anti-overcharge. The battery module shall be tested according to the regulations and shall not ignite or explode.

(4) Resistance to overdischarge. The battery module shall be tested according to the regulations and shall not ignite or explode.

(5) Resistance to short circuit. The battery module shall be tested according to the regulations and shall not ignite or explode.

(6) High temperature storage. The battery shall be tested according to the regulations and shall not leak, smoke, catch fire or explode.

(7) Anti-heating. The battery module is tested according to the regulations. No part of the explosion battery penetrates the screen, and some or all of the batteries protrude from the screen.

(8) Anti-puncture. The battery pack shall be tested according to the regulations and shall not ignite or explode.

(9) Anti-extrusion. The battery module shall be tested according to the regulations and shall not ignite or explode.

(10) Resistance to low pressure. The battery pack shall be tested in accordance with regulations and shall not leak, smoke, catch fire or explode.

(11) Constant damp heat. After the battery pack is tested according to the regulations, its appearance shall be free from obvious deformation, rust, smoke or explosion, and its capacity shall not be less than 90% of the rated value.

(12) Anti-vibration. The battery pack shall be tested according to the regulations, and its appearance shall be free from obvious damage, liquid leakage, smoke or explosion, and it can work normally.

(13) Anti-collision. The battery pack shall be tested according to the regulations, and its appearance shall be free from obvious damage, liquid leakage, smoke or explosion, and it can work normally.

(14) Temperature cycling. The battery pack shall be tested in accordance with the provisions of 6.6.15, which shall not leak, smoke, ignite or explode; the appearance of the battery pack shall be free of cracks, no loss of quality, and the capacity shall not be lower than 70% of the initial state.

(15) Flame retardant properties. For battery packs with plastic casing and protective cover, the test shall be carried out in accordance with the provisions of 6.6.16. The outer casing shall comply with the provisions of Article 8.3.2 of the GB/T2408-2008, FH-1 (horizontal level) and 9.3.2 of FV-0 (vertical). Level) requirements.

(16) Insulation resistance. For a battery pack with a metal case, the insulation resistance of the battery pack's metal and cathode housings is not less than 2 MW.

OEM 2S1P THLB Battery Rechargeable PCM Lithium Battery 6.4V 1.8AH 18650
OEM 2S1P THLB Battery Rechargeable PCM Lithium Battery 6.4V 1.8AH 18650
OEM 2S1P THLB Battery Rechargeable PCM Lithium Battery 6.4V 1.8AH 18650
OEM 2S1P THLB Battery Rechargeable PCM Lithium Battery 6.4V 1.8AH 18650
OEM 2S1P THLB Battery Rechargeable PCM Lithium Battery 6.4V 1.8AH 18650
OEM 2S1P THLB Battery Rechargeable PCM Lithium Battery 6.4V 1.8AH 18650
Our Company
OEM 2S1P THLB Battery Rechargeable PCM Lithium Battery 6.4V 1.8AH 18650
OEM 2S1P THLB Battery Rechargeable PCM Lithium Battery 6.4V 1.8AH 18650
OEM 2S1P THLB Battery Rechargeable PCM Lithium Battery 6.4V 1.8AH 18650
OEM 2S1P THLB Battery Rechargeable PCM Lithium Battery 6.4V 1.8AH 18650
Packing & Delivery
OEM 2S1P THLB Battery Rechargeable PCM Lithium Battery 6.4V 1.8AH 18650
OEM 2S1P THLB Battery Rechargeable PCM Lithium Battery 6.4V 1.8AH 18650
FAQ

Q1. Can I have few free samples for evaluation?

A: Yes, free samples are ok, but not covering shipping cost

Q2. What about the lead time?

A: Samples needs 3-5 days

B: Mass production time is approx 2-3 weeks

Q3. Do you have any MOQ limit for bulk order?

A: MOQ=100pcs

Q4. How do you ship the goods and how long does it take to arrive?

A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days

B: Big quantity bulk order: Air shipping or Sea shipping

Q5. How to proceed an order for Lithium ion cell?

A: Pls confirm the cell models that you are interested in

B: We send cell specifications and best quotation to you for reference

C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly

D: After deposit or full payment confirmed, production started

Q6. Is it OK to print my logo on lithium ion cell product?

A: Yes. OEM is welcomed

Q7: Do you offer guarantee for the products?

A: Yes, 3-5 Years Warranty
