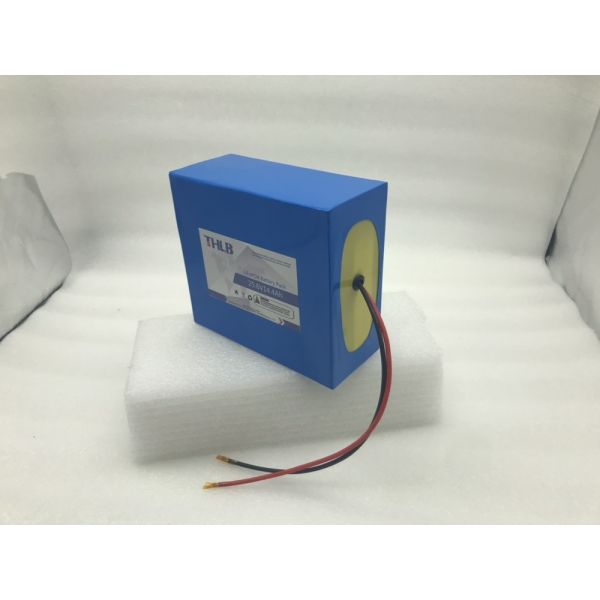

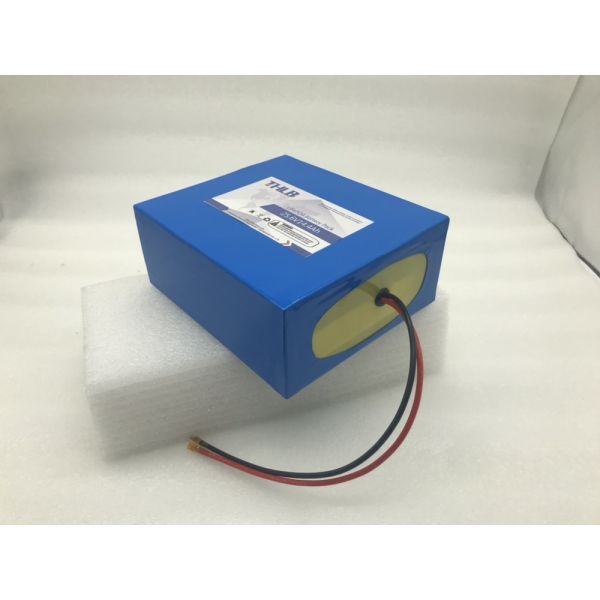

25.6V 24V LiFePO4 Deep Cycle 15Ah 18Ah Solar Panel Tracker Lithium Ion Battery
25.6V 24V LiFePO4 Deep Cycle 15Ah 18Ah Solar Panel Tracker Lithium Ion Battery
25.6V 24V LiFePO4 Deep Cycle 15Ah 18Ah Solar Panel Tracker Lithium Ion Battery
25.6V 24V LiFePO4 Deep Cycle 15Ah 18Ah Solar Panel Tracker Lithium Ion Battery
25.6V 24V LiFePO4 Deep Cycle 15Ah 18Ah Solar Panel Tracker Lithium Ion Battery
25.6V 24V LiFePO4 Deep Cycle 15Ah 18Ah Solar Panel Tracker Lithium Ion Battery
Specifications
Brand Name :
THLB
Model Number :
THLB2415
Place of Origin :
China
MOQ :
5 units
Price :
$106/units 5-199 units
Packaging Details :
Standard Packaging
Delivery Time :
7-15 Working Days
Application :
Power Tools, Consumer Electronics, Boats, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Solar Energy Storage Systems
Weight :
3Kg
Product Name :
24V15Ah LiFePO4 Lithium Battery
Nominal Voltage :
24V
Nominal Capacity :
15Ah
Charge Voltage :
28.8V
Casing :
PVC
Cycle :
over 2000 times
Working Temperature :
-20°C~60°C
Battery Weight :
3kg
BMS :
YES
PVC Color :
Blue
Anode Material :
LFP
Battery Size :
24V15Ah
The charging ratio :
0.5C/1C
The discharge rate :
0.5C/1C/1.5C
Storage Type :
-20~40 degree
Electric Energy :
360 Wh
Description
25.6V 24V LiFePO4 Deep Cycle Battery - 15Ah 18Ah
High-performance rechargeable lithium iron phosphate battery pack designed for Solar Tracker and similar applications. Features deep cycle capability and removable design.
Technical Specifications
25.6V 24V LiFePO4 Deep Cycle 15Ah 18Ah Solar Panel Tracker Lithium Ion Battery 25.6V 24V LiFePO4 Deep Cycle 15Ah 18Ah Solar Panel Tracker Lithium Ion Battery 25.6V 24V LiFePO4 Deep Cycle 15Ah 18Ah Solar Panel Tracker Lithium Ion Battery 25.6V 24V LiFePO4 Deep Cycle 15Ah 18Ah Solar Panel Tracker Lithium Ion Battery
Parameter Value
Nominal Voltage 25.6V
Typical Capacity 14.4Ah
Normal Discharge Current <30A
Discharge Cut-off Voltage 20V
Charging Voltage 28.8V
Charging Current 7.2A
Charging Method CC/CV
Cut-off Current 0.01C
Discharging Inner Resistance <=50mΩ
Charge Temperature Range 0℃～+45℃
Discharge Temperature Range -20℃～+60℃
Operating Humidity RH<85%
Storage Temperature 0℃～+40℃ (capacity 80%)
Recommended long-term storage: 15-25℃
Storage Humidity RH<50%
Protection Functions Overcharge protection, over discharge protection, temperature protection, balanced function
Battery Case Material PVC
Dimensions (172±1)mm × (72±1)mm × (152±1)mm
Cycle Life 1500 cycles (capacity retention rate >80%)
Standard charge at 0.2C, discharge at 0.2C to cut-off voltage
Note: When environment temperature exceeds 45℃, ensure proper ventilation and heat dissipation. When humidity exceeds 85%, implement appropriate protection measures.
Manufacturer Profile
Shandong TianHan New Energy Technology Co., Ltd specializes in research, development, manufacturing, sales and service of lithium batteries, power lithium batteries, battery packs, and BMS systems. Our products are widely used in intelligent manufacturing, new energy electric vehicles, starting batteries, communication station batteries, e-bikes, solar-wind energy storage systems, and home-use energy storage solutions.
25.6V 24V LiFePO4 Deep Cycle 15Ah 18Ah Solar Panel Tracker Lithium Ion Battery 25.6V 24V LiFePO4 Deep Cycle 15Ah 18Ah Solar Panel Tracker Lithium Ion Battery
Certifications
We maintain all necessary industry certifications and compliance standards.
25.6V 24V LiFePO4 Deep Cycle 15Ah 18Ah Solar Panel Tracker Lithium Ion Battery
Packaging & Delivery
25.6V 24V LiFePO4 Deep Cycle 15Ah 18Ah Solar Panel Tracker Lithium Ion Battery
