10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery
10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery
10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery
10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery
10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery
10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery
Specifications
Model Number :
36v10ah
MOQ :
2 pieces
Price :
$90/pieces 2-29 pieces
Place of Origin :
China
Brand Name :
THLB
Packaging Details :
Standard Packaging
Delivery Time :
15-20 Working Days
Payment Terms :
T/T
Cathode Materials :
LiMn2O4
Voltage :
36V
Cycle life :
500-800 Times
Battery type :
Lithium Battery
Nominal Capacity (Ah) :
10ah
Battery Cell :
NCM 3.7v
Weight :
approx 3.5kg
Operating Temperature(℃) :
-20-60
Place of Origin: :
Shandong
Warranty :
3 Year
Description

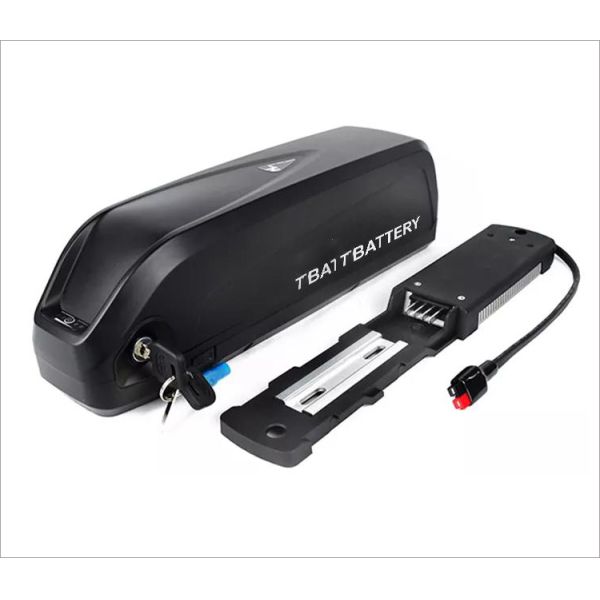

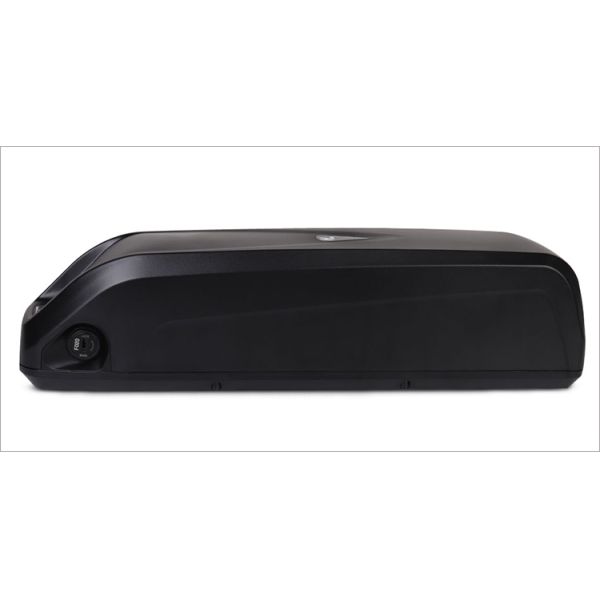

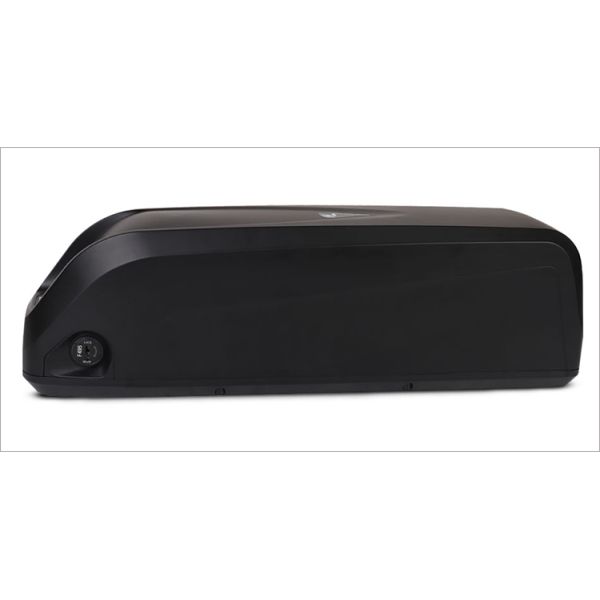

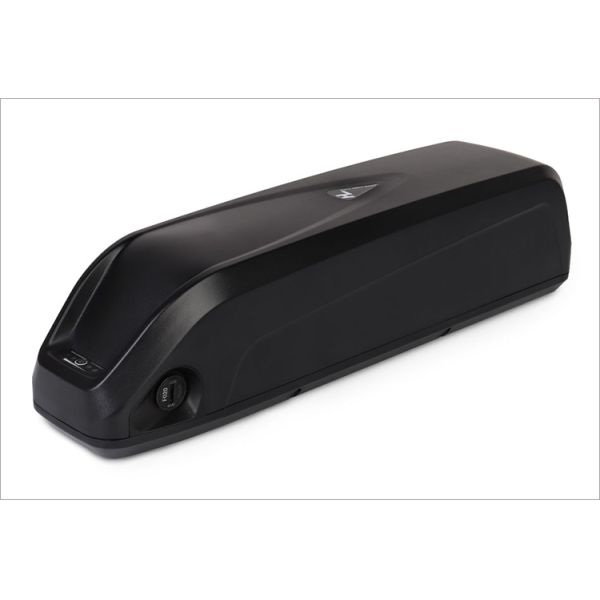

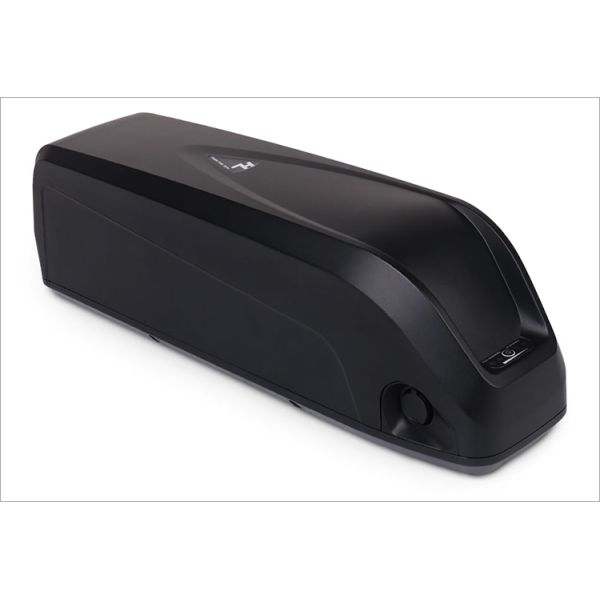

36V 10Ah NCM Electric Bicycle Lithium Battery
High-performance NCM 3.7V battery cell electric bicycle conversion kit with 36V 14.5Ah lithium battery capacity. Premium e-bike battery solution for reliable power and extended range.
Available Configurations
THLB 36V, 48V, 52V, 72V batteries available in 7.8Ah, 10Ah, 13Ah, 15.6Ah, 18.2Ah, and 20.8Ah capacities

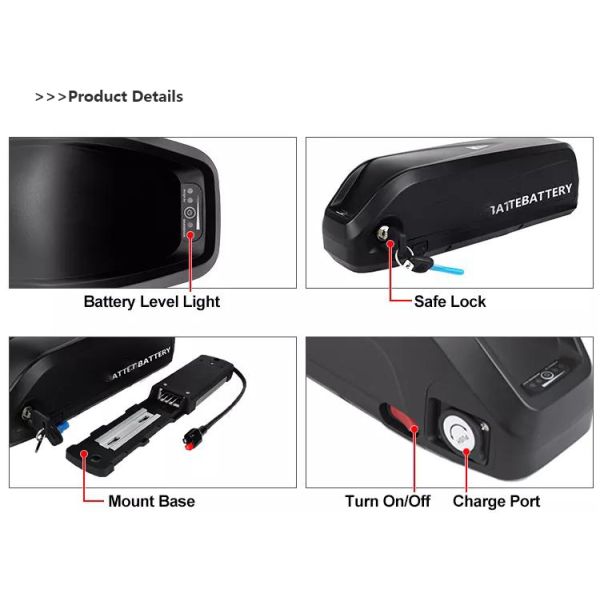

Key Advantages
  • No memory effect - charging interruptions do not harm the battery
  • Comprehensive short circuit protection
  • Overcharge and over discharge protection
  • Excellent low temperature resistance
  • Advanced overvoltage protection
  • Reliable overcurrent protection
  • Extended service life
  • Easy installation and setup
Product Images
10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery 10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery
10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery 10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery
10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery 10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery
10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery 10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery
Technical Specifications
Parameter Details
Nominal Voltage 36V
Typical Capacity 10Ah
Array Mode 10S4P
Typical Capacity 10±0.2Ah (At 0.2C discharge rate)
Discharge
Working Current ≤ 10A
Over Current Protection Current 20±3A
Cut-off Voltage About 35V
Terminal 14AWG, length 300mm
Charge
Voltage 42.0±0.5V
Max Charging Current ≤10A
Charge Mode CC/CV, please use a special lithium charger
Charging Cut-off Current About 0.5A
Terminal DC2.1
Operation Temperature
Charge 0℃～+45℃
Discharge -20℃～+60℃
Storage Temperature -20℃～60℃
Discharging Inner Resistance ≤ 150mΩ
Protection Function Overcharge protection, over discharge protection, temperature protection and short circuit protection
Shell Material SSE-046/ABS
Weight 2±0.5Kg

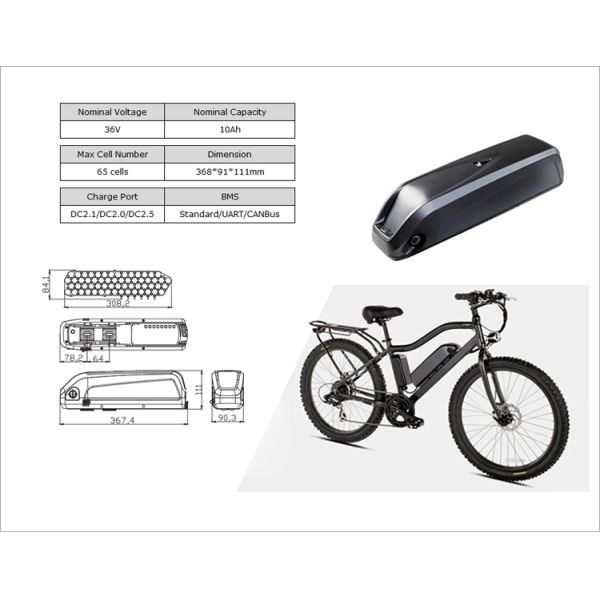

Size (L*W*H) (368±2)mm *(91±2)mm*(111±2)mm
Cycle Life Not less than 500 cycles with capacity retention rate ≥80%
Packaging & Delivery
10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery 10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery
Manufacturer Profile
Professional manufacturer of rechargeable lithium-ion and LifePO4 batteries located in Shandong, certified with ISO9001:2008 quality system.
10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery 10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery 10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery 10ah NCM Electric Bicycle Lithium Battery LiMn2O4 36v 14.5ah Lithium Battery
Frequently Asked Questions
Q1: Are you a factory or a trading company?
A1: We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer located in Shandong. We passed ISO9001:2008 quality system certification.
Q2: Can I have samples to test? And what is lead time for sample order?
A2: Yes, we can supply samples. The lead time for samples is 7-10 days, and buyer pays for sample cost and shipping cost.
Q3: Do you provide after-sales service?
A3: Yes, the warranty is 3 years. If any quality problems occur on our side during this period, we can send a new one as replacement.
Q4: What is your company's advantage?
A4: We only supply high quality lithium batteries and guarantee on-time shipment. We also provide excellent after-sales service.
Q5: Do you accept OEM/ODM?
A5: Yes, OEM/ODM services are available.
Q6: What information do you need to make a customized battery pack?
A6: We need: 1. Battery pack size in mm, 2. Capacity, 3. Voltage, 4. Max discharge current, 5. Cable and connector types, 6. Casing and terminals if required, 7. Any protection circuits needed.
Q7: Are your batteries real capacity?
A7: All of our battery cells are Grade A, 100% new with real capacity.
Q8: What kind of certificates do you have?
A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3 certifications.
Q9: What is your lead time for the mass production?
A9: Generally about 25-30 days depending on different items after receiving down payment and sample confirmation.
