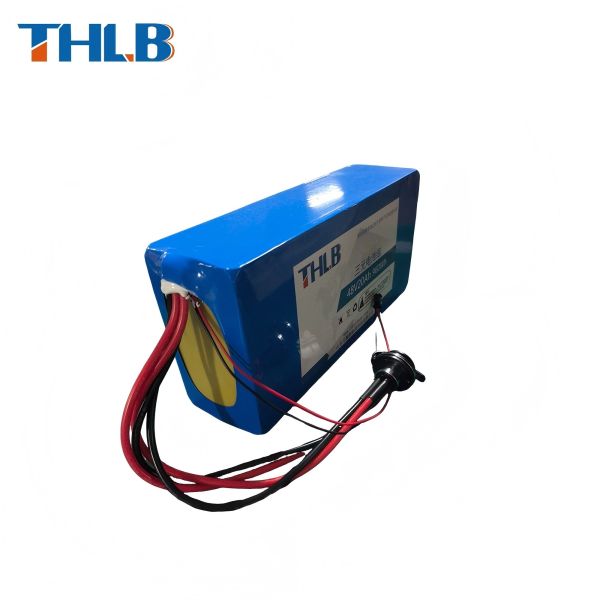

factory directly Electric Bike Battery Pack 48V Lithium Ion Battery
factory directly Electric Bike Battery Pack 48V Lithium Ion Battery
factory directly Electric Bike Battery Pack 48V Lithium Ion Battery
factory directly Electric Bike Battery Pack 48V Lithium Ion Battery
factory directly Electric Bike Battery Pack 48V Lithium Ion Battery
factory directly Electric Bike Battery Pack 48V Lithium Ion Battery
factory directly Electric Bike Battery Pack 48V Lithium Ion Battery
factory directly Electric Bike Battery Pack 48V Lithium Ion Battery
factory directly Electric Bike Battery Pack 48V Lithium Ion Battery
factory directly Electric Bike Battery Pack 48V Lithium Ion Battery
factory directly Electric Bike Battery Pack 48V Lithium Ion Battery
factory directly Electric Bike Battery Pack 48V Lithium Ion Battery
Specifications
Warranty :
2 Year
Nominal Capacity (Ah) :
7.8ah/10.4ah/14ah
Weight :
approx 3.5kg
Cell Configuration: :
INR18650-3500mah-3.6v-10S4P
Delivery Time :
15-25 Working Days
Battery type :
Lithium Battery
Cycle life :
800-1000 Times
Place of Origin :
China
Brand Name :
THLB
Packaging Details :
Standard Packaging
Voltage :
24V/36V/48V
Application :
Boats, Electric Wheelchairs, Golf Carts, Electric Bicycles/Scooters, E-Bike, Electric Bicycle, Electric Bike
Payment Terms :
T/T
Model Number :
3614
MOQ :
5 pieces
Price :
$130/pieces 5-49 pieces
Description
Customizable Electric Bike Battery Packs
High-performance 24V, 36V, and 48V lithium-ion and LiFePO4 battery packs with capacities of 10Ah and 14Ah, designed for electric bicycles with approximately 3.5kg weight and cycle life of 800 to 1000 cycles.
Custom Manufacturing Available: We specialize in producing customized battery solutions according to your specific requirements. Share your needs with us, and we'll handle the rest with professional expertise.

factory directly Electric Bike Battery Pack 48V Lithium Ion Battery

factory directly Electric Bike Battery Pack 48V Lithium Ion Battery factory directly Electric Bike Battery Pack 48V Lithium Ion Battery
Technical Specifications
Parameter Specification
Nominal Voltage 36V
Typical Capacity 14Ah
Discharge Normal Current: 14A
Max Continuous Current: 20A
Cut-off Voltage: about 27.5V
Charging Voltage: 42V
Current: ≤2A
Charging Cut-off current: approx 0.2A
Inner Resistance Discharging Inner Resistance: ≤90mΩ
Operation Temperature/Humidity Range Charge: 0℃ to 45℃
Discharge: -20℃ to 60℃
When environment temperature exceeds 45℃, ensure proper ventilation and heat dissipation
Humidity Range: RH≤85%
Storage Temperature/Humidity Range Temperature: 0℃ to 40℃ (capacity 80%)
Recommended long-term storage: 15℃ to 25℃
Humidity: RH≤50%
Protection Function Over charge protection, Over discharge protection, temperature protection
Shell Material Aluminum 6061/PC+ABS
Weight 3.5±0.1kg
Size 435*151*66mm
Cycle Life ≥500 cycles / 80% SOC
Packaging & Delivery
factory directly Electric Bike Battery Pack 48V Lithium Ion Battery
Company Profile
Professional manufacturer of rechargeable lithium-ion and LiFePO4 batteries located in Shandong, certified with ISO9001:2008 quality system.
factory directly Electric Bike Battery Pack 48V Lithium Ion Battery factory directly Electric Bike Battery Pack 48V Lithium Ion Battery
Frequently Asked Questions
Q1: Are you a factory or a trading company?
We are a professional rechargeable lithium-ion battery and LiFePO4 battery manufacturer located in Shandong, certified with ISO9001:2008 quality system.
Q2: Can I have samples to test? What is the lead time for sample orders?
Yes, we provide samples with a lead time of 7-10 days. Sample cost and shipping are covered by the buyer.
Q3: Do you provide after-sales service?
Yes, we offer a 3-year warranty. If any quality issues occur during this period, we provide replacements.
Q4: What is your company's advantage?
We supply high-quality lithium batteries, guarantee on-time shipment, and provide excellent after-sales service.
Q5: Do you accept OEM/ODM?
Yes, OEM and ODM services are available.
Q6: What information do you need for custom battery packs?
We require: battery pack dimensions, capacity, voltage, max discharge current, cable/connector types, casing/terminals, and protection circuit requirements.
Q7: Are your batteries real capacity?
All our battery cells are Grade A, 100% new with real capacity.
Q8: What kind of certificates do you have?
We provide CE, ROHS, FCC, IEC62133, MSDS, and UN38.3 certifications.
Q9: What is your lead time for mass production?
Typically 25-30 days after receiving down payment and sample confirmation.
