Cathode 24V 12Ah Lithium Battery BMS Rechargeable LiFePO4 Battery
Cathode 24V 12Ah Lithium Battery BMS Rechargeable LiFePO4 Battery
Cathode 24V 12Ah Lithium Battery BMS Rechargeable LiFePO4 Battery
Cathode 24V 12Ah Lithium Battery BMS Rechargeable LiFePO4 Battery
Specifications
Brand Name :
THLB
Model Number :
THLB2412
Place of Origin :
China
MOQ :
5 pieces
Price :
$65/pieces 5-199 pieces
Packaging Details :
Standard Packaging
Delivery Time :
7-15 Working Days
Payment Terms :
T/T
Cycle Life :
1500 cycles
Cathode Materials :
LiFePO4
Weight :
3Kg
Operating Temperature(℃) :
-20-60℃
Product Name :
24V12Ah LiFePO4 Lithium Battery
Nominal Voltage :
24V
Nominal Capacity :
12Ah
Charge Voltage :
28.8V
Casing :
PVC
Cycle :
over 2000 times
BMS :
YES
PVC Color :
Blue
Description

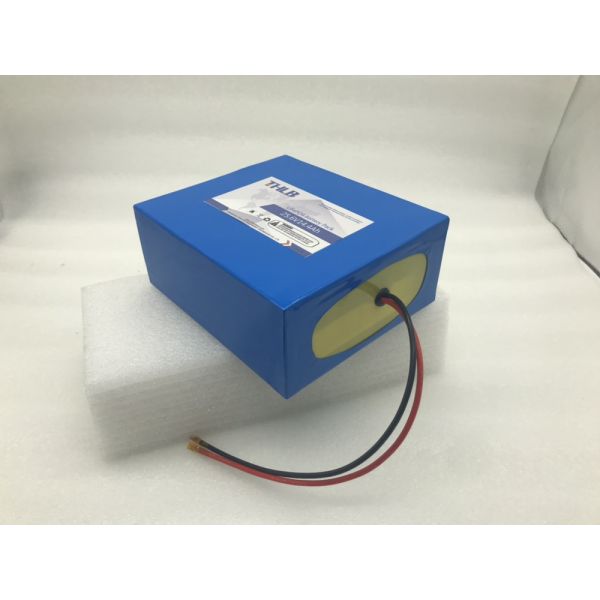

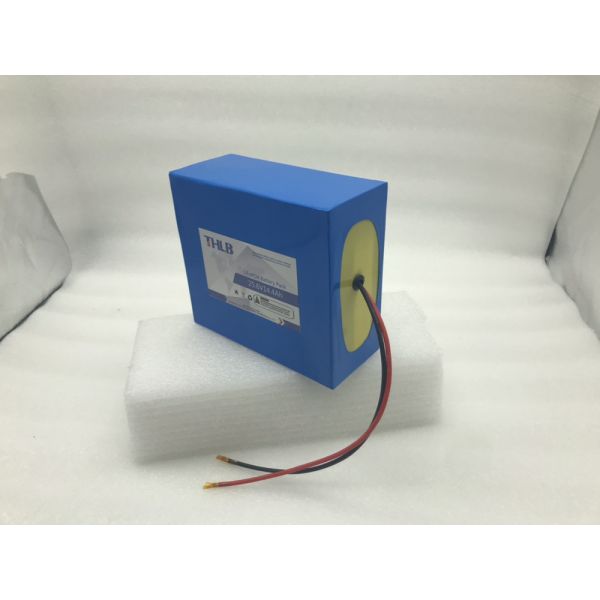

24V 12Ah LiFePO4 Lithium Battery Pack
High-performance rechargeable 24V 12Ah cylindrical lithium iron phosphate battery pack with PVC casing, designed for electric wheelchairs and various industrial applications.
Cathode 24V 12Ah Lithium Battery BMS Rechargeable LiFePO4 Battery Cathode 24V 12Ah Lithium Battery BMS Rechargeable LiFePO4 Battery
Technical Specifications
Nominal Voltage 25.6V
Typical Capacity 12Ah
Normal Discharge Current <20A
Discharge Cut-off Voltage 20V
Charging Voltage 28.8V
Charging Current 7.2A
Charging Method CC/CV
Charging Cut-off Current 0.01C
Discharging Inner Resistance <=50mΩ
Charge Temperature Range 0℃～+45℃
Discharge Temperature Range -20℃～+60℃
Storage Temperature Range 0℃～+40℃ (capacity 80%)
Recommended Long-term Storage 15-25℃
Operating Humidity RH<85%
Storage Humidity RH<50%
Battery Case Material PVC
Dimensions (172±1)mm × (72±1)mm × (152±1)mm
When environment temperature exceeds 45℃, ensure proper ventilation and heat dissipation.
When environment humidity exceeds 85%, implement appropriate protection measures.
Easily oxidized components require sealed storage conditions.
Protection Features
  • Overcharge protection
  • Over discharge protection
  • Temperature protection
  • Balanced function
Cycle Life
Standard charge at 0.2C (A), rest 0.5-1h, discharge at 0.2C to cut-off voltage, rest 0.5-1h. Repeat for 1500 cycles with capacity retention rate >80%.
Cathode 24V 12Ah Lithium Battery BMS Rechargeable LiFePO4 Battery Cathode 24V 12Ah Lithium Battery BMS Rechargeable LiFePO4 Battery Cathode 24V 12Ah Lithium Battery BMS Rechargeable LiFePO4 Battery

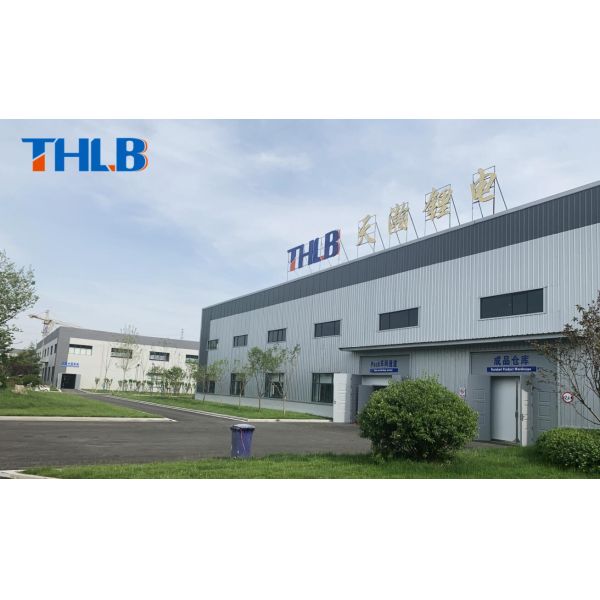

Manufacturer Profile
Shandong TianHan New Energy Technology Co., Ltd specializes in R&D, manufacturing, sales and service of lithium batteries, power lithium batteries, battery packs, and BMS systems. Our products are widely used in intelligent manufacturing, new energy electric vehicles, starting batteries, communication station batteries, e-bikes, and solar-wind energy storage systems.
Cathode 24V 12Ah Lithium Battery BMS Rechargeable LiFePO4 Battery Cathode 24V 12Ah Lithium Battery BMS Rechargeable LiFePO4 Battery
Quality Certifications
We maintain all necessary industry certifications to ensure product quality and safety standards.
Cathode 24V 12Ah Lithium Battery BMS Rechargeable LiFePO4 Battery

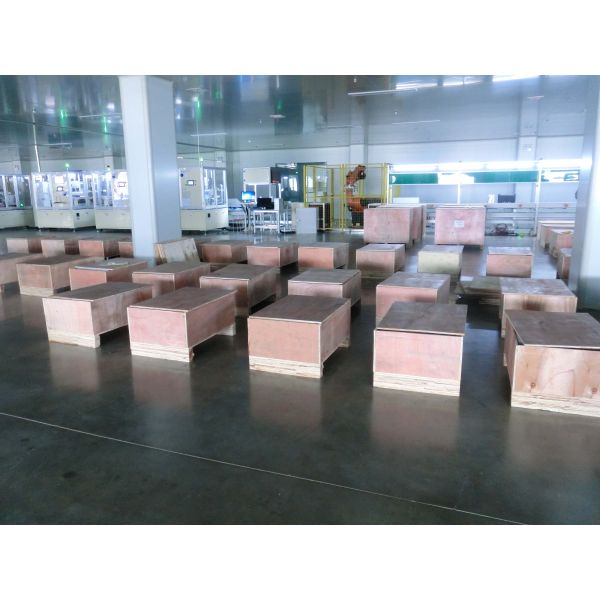

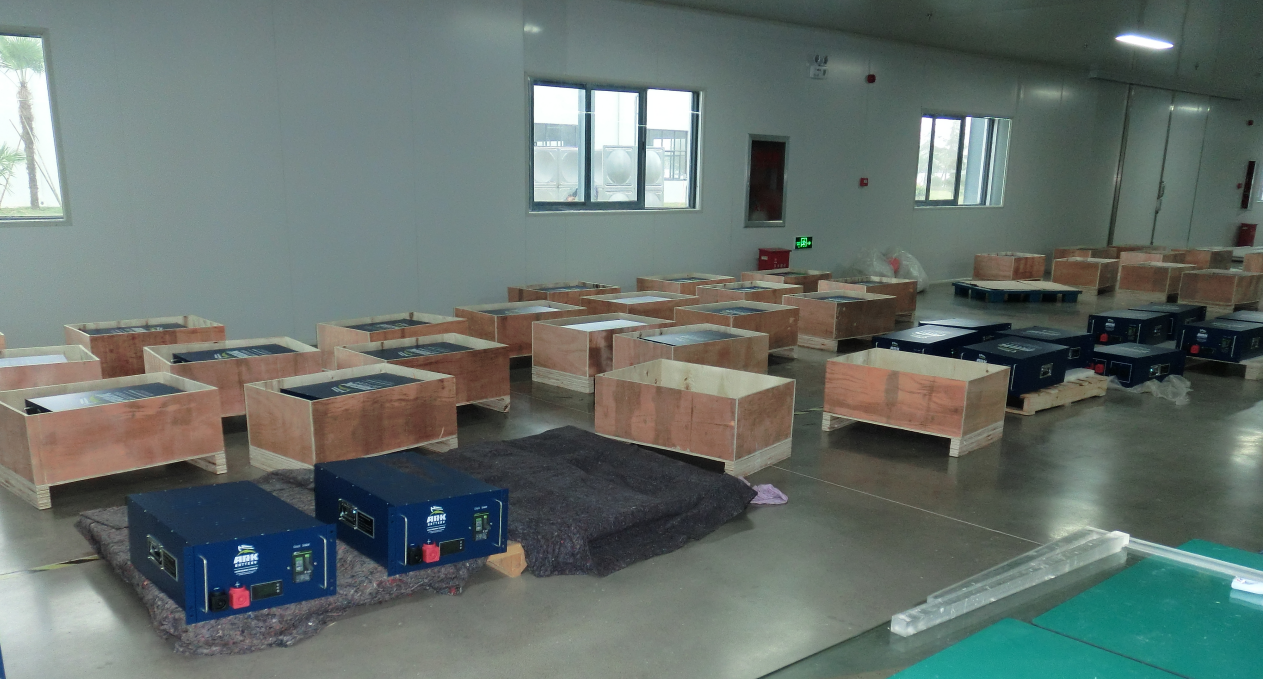

Packing & Delivery
Cathode 24V 12Ah Lithium Battery BMS Rechargeable LiFePO4 Battery Cathode 24V 12Ah Lithium Battery BMS Rechargeable LiFePO4 Battery
Cathode 24V 12Ah Lithium Battery BMS Rechargeable LiFePO4 Battery Cathode 24V 12Ah Lithium Battery BMS Rechargeable LiFePO4 Battery
