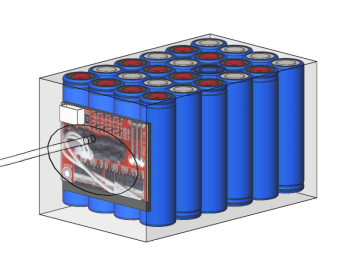

INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
Specifications
Brand Name :
THLB
Model Number :
22.2V8.8Ah Li-ion Battery Pack
Place of Origin :
China
MOQ :
10 units
Price :
$39/units >=10 units
Application :
Toys, Power Tools, Home Appliances, Consumer Electronics, Electric Power Systems
Battery Size :
22.2V8.8Ah
Weight :
1.1kg
Electric Energy :
195 Wh
Type :
Li-ion
Voltage :
22.2V
Capacity :
8.8Ah
Category :
Rechargeable Batteries pack
Cell Configuration :
INR18650-2200mah-3.6v-6S4P
Cycle Characteristic :
1000-1500 times
Working Temperature :
-20°C~60°C
Battery Weight :
1.1kg
BMS :
YES
warranty :
18 months
Packaging Details :
Standard Packaging
Delivery Time :
7-15 Working Days
Description
BMS Included 22.2V 8.8Ah Lithium Ion Battery Pack Perfect Solution for Portable Medical and Monitoring Devices
Product Parameters
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
Item
Parameter
Nominal Voltage
22.2V
Typical Voltage
8.8Ah
Discharge
Normal Current
<=5A
Cut-off Voltage
about 16.5V
Charge
Charging Voltage
25.2v
Charging Current
<5A
Charging Method
CC/CV
Cut-off Current
0.18A
Inner Resistance
Discharging Inner Resistance
<=80mΩ
Operation temperature/humidity range
Charge
0℃～+45℃
Discharge
-20℃～+60℃
When the environment temperature is higher than 45℃, please pay attention to ventilation and heat rejection
Humidity
RH<85%, when the environment humdity is higher than 85%, please pay attention to protect
Storage temperature/ humidity range
Temperature
0℃～+40℃ (capacity 80%) recommended long-term storage temperature is 15-25℃
Humidity
RH<50%, easily oxidized components note sealed
Protection function
Overcharge protection, over discharge protection, temperature protection, balanced function
Material of battery case
PVC

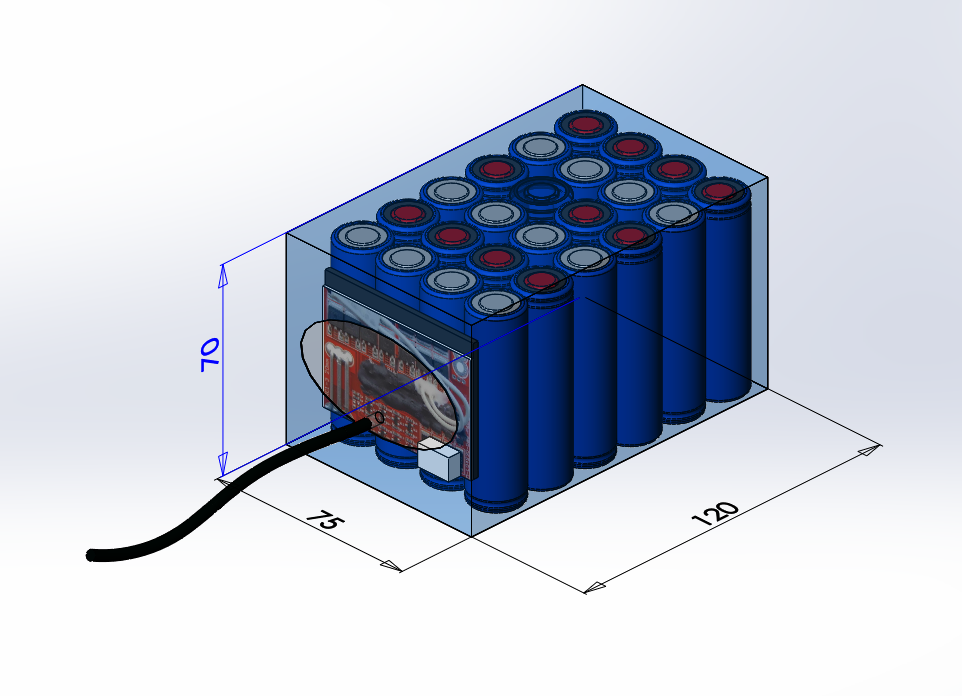

Size
(120±2)mm *(75±2)mm *(70±2)mm
Cycle
Standard charge at 0.2C (A), rest 0.5-1h, discharge at 0.2C to cut off voltage, rest 0.5-1h, repeat the above steps until 1000 cycles. (capacity retention rate >80%)
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
Packing & Delivery
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
Our Company
Shandong TianHan New Energy Technology Co., Ltd is specialized in R&D, manufacturing, sales and service of lithium battery, power lithium battery and battery pack, BMS, products are widely used in intelligent manufacturing, new energy electric vehicles, starting-up batteries, communication station battery, e-bike, solar-wind energy storage system and houme-use energy storage system solutions.
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
Exhibition
INR18650 BMS 22.2V 8.8Ah Lithium Ion Batteries For Medical Devices
FAQ

Q1. Can I have few free samples for evaluation?
A: Yes, free samples are ok, but not covering shipping cost

Q2. What about the lead time?
A: Samples needs 3-5 days
B: Mass production time is approx 2-3 weeks

Q3. Do you have any MOQ limit for bulk order?
A: MOQ=100pcs

Q4. How do you ship the goods and how long does it take to arrive?

A: Samples and small quantity trial order: Courier shipping with door to door; normally 6-10 days
B: Big quantity bulk order: Air shipping or Sea shipping

Q5. How to proceed an order for Lithium ion cell?
A: Pls confirm the cell models that you are interested in
B: We send cell specifications and best quotation to you for reference
C: You confirm the quotation and inform quantity or issue PO, we will send PI accordingly
D: After deposit or full payment confirmed, production started

Q6. Is it OK to print my logo on lithium ion cell product?

A: Yes. OEM is welcomed

Q7: Do you offer guarantee for the products?

A: Yes, 2-5 Years Warranty
