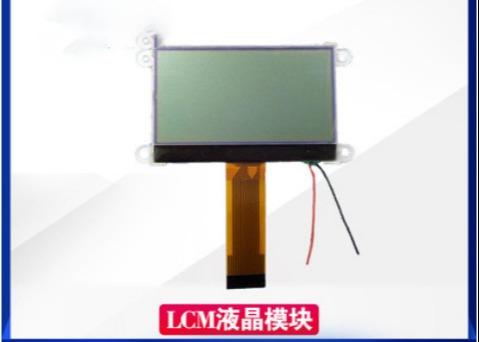

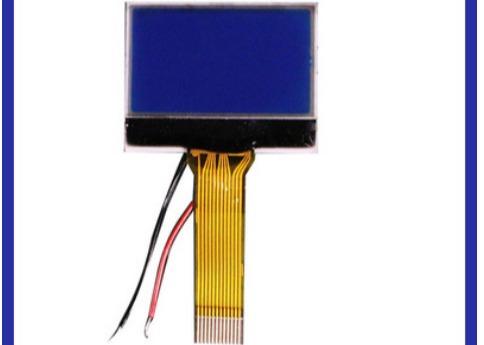

128x64 Graphic Lcd Panel With Backlight
128x64 Graphic Lcd Panel With Backlight
128x64 Graphic Lcd Panel With Backlight
128x64 Graphic Lcd Panel With Backlight
128x64 Graphic Lcd Panel With Backlight
128x64 Graphic Lcd Panel With Backlight
128x64 Graphic Lcd Panel With Backlight
128x64 Graphic Lcd Panel With Backlight
128x64 Graphic Lcd Panel With Backlight
128x64 Graphic Lcd Panel With Backlight
128x64 Graphic Lcd Panel With Backlight
128x64 Graphic Lcd Panel With Backlight
128x64 Graphic Lcd Panel With Backlight
128x64 Graphic Lcd Panel With Backlight
Specifications
Brand Name :
hainengzhichuang
Model Number :
custom
Place of Origin :
Shenzhen, China
MOQ :
custom
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Name :
128x64dots Graphic LCD Module
Viewing Angle :
6 O' clock
LCD Mode :
STN-Blue
Backlight :
Blue
Driver IC :
ST7565R
Power supply :
3V or 5V
Interface :
Parallel
Operating Temp :
-20º C~70º C
Description

Graphic Lcd Display Gray Color Screen With Backlight High Brightness

General Specifications

1. Display Format 128x64 dots
2. Parallel interface
3. 5V power supply
4. Ultra high contrast, YG & White LED backlight as option
5. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option

Display Specifications

Item Description
Product Name 128x64dots Graphic LCD Module
Model No. RYG12864M
Dot Format(dot) 128x64
Outline Dimension(mm) 40.8x34.8
VA Size(mm) 37.7X25.1
AA Size( mm) 34.5x21.7
Viewing Angle 6 O' clock
LCD Mode STN-Blue
Backlight Blue
Driver IC ST7565R
Power supply 3V or 5V
Interface Parallel
Operating Temp -20º C~70º C
Storage Temp -30º C~80º C

Typical Applications

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Features

Transmissive, Transflective and Reflective Model
Duty Ratio: up to 1:240
support gray scale display
Wide Operation & Storage temperature range
128x64 Graphic Lcd Panel With Backlight
FAQ

Q1. How can I get the samples?

A: If you need samples, we can make as per your request .

You should pay the sample fee and freight. Sample lead time always be within 2-5 days.

Q2. How to order lcd?

A:Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.

1)Product information-Quantity, part number

2)Delivery time required.

3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.

4)Forwarder's contact details if you have any in China.

Q3. How long can I expect to get the sample?

A:The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.

Q4. When can I get the datasheet?

A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately

Custom Made Project Order Flow

1. Enquiry


Send us draft / details drawing, project schedule, application, qty. demand, etc by email ( to wendy@rylcd.com)
Quotation will be ready within 3 days ( normally 1 day).

2. Counter drawing


We will send out counter drawing after confirm of our quotation and received the tooling charge.
normally, 3 days for LCD glass and 1 week for LCD module.

3. Tooling samples


After drawing approval, tooling samples will be finished around 30 days

4. Mass production


After samples approval, mass production goods will be finished around 30 to 60 days. Depends of the order situation and materials supply siutuation.
