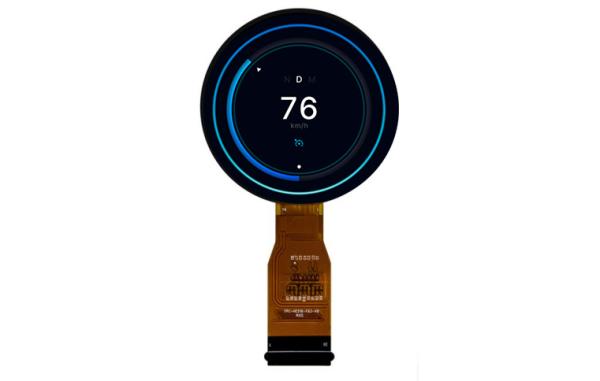

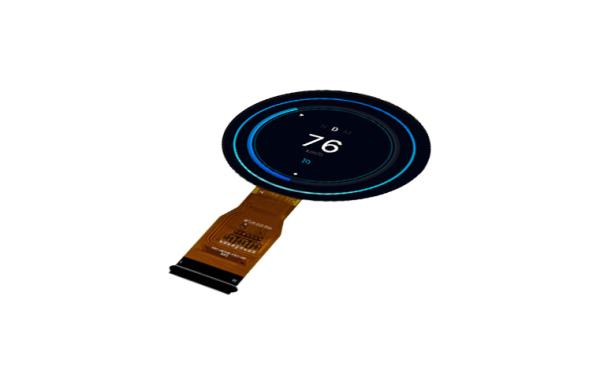

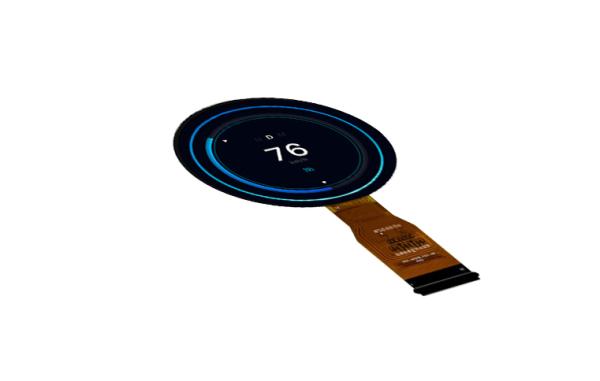

1.77 Inch Round TFT LCD Display Module
1.77 Inch Round TFT LCD Display Module
1.77 Inch Round TFT LCD Display Module
1.77 Inch Round TFT LCD Display Module
1.77 Inch Round TFT LCD Display Module
1.77 Inch Round TFT LCD Display Module
Specifications
Brand Name :
HETECH
Model Number :
HC018IX20020-F63
Certification :
ISO9001,ISO14001,ISO13485,IATF16949
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T
Supply Ability :
150K/month
Delivery Time :
4-6weeks
P/N :
HC018IX20020-F63
Size :
1.8"(IPS)
Display type :
IPS
Resolution :
360*360
Outline dimension :
48.08(W)*49.95(H)*1.96(D)mm
Active area :
φ45.68mm
Brightness :
250cd/m2
Interface :
30pinMIPI
Viewing angle :
85/85/85/85
Operation Temp. :
-20~70℃
Storage Temp. :
-30~80℃
Contrast ratio :
1200
Aspect ratio :
1:1
Application :
Control knobs
Description

1.77 inch round LCD display module with 30pin MIPI Interface for Control Knobs


Product Description:


HC018IX20020-F63 is a 1.77-inch round LCM with IPS screen engineered for clarity and durability. With a sharp 360*360 resolution and 1200:1 contrast ratio, it delivers crisp visuals with vibrant details, even in bright environments of 250nits. Its ultra-wide 85° viewing angles ensure consistent performance from any direction, while the ultra-slim profile of 1.96mm thickness and compact footprint of 48.08mm*49.95mm fit seamlessly into space-constrained setups. Featuring a 30-pin MIPI interface for smooth integration and visual diameter of 45.68mm optimized for intuitive interaction, this display is ideal for control controls.


General Specification:


P/N HC018IX20020-F63
Size 1.8 inch
Display type Normally black,transmissive
Resolution 360*360
Outline Dimension(mm) 48.08(W)*49.95(H)*1.96(D)mm
Active Area(mm) φ45.68mm
Brightness(cd/m²) 250
Viewing Angle(L/R/T/B) 85/85/85/85
Interface 30pinMIPI
Operation Temperature -20~70℃
Storge Temperature -30~80℃
Aspect ratio 1:1
Contrast ratio 1200
Application Control knobs


Pin assignment:


1.77 Inch Round TFT LCD Display Module


Electrical Characteristics


Item Symbol MIN TYP MAX UNIT Test Condition
Supply Voltage Vf 2.7 3.05 3.4 V If=40mA
Supply Current If - 60 - mA -
Life Time - - 50000 - hrs If=40mA



Product drawings:

1.77 Inch Round TFT LCD Display Module


Round lcd display series


Round LCD Display Sizes
Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc.
No. Size Part No. LCD type Resolution Outline dimension Active area Interface Contrast ratio Brightness Operation temperature Storage temperature
1 1.8" HC018IX20020-F63 IPS 360*360 48.08*49.95*1.96mm φ45.68mm 30pin MIPI 1200 250 -20~70℃ -30~80℃
2 2.1" HCCH210WV01A IPS 480*480 56.18*59.71*2.3mm φ53.28mm 40pinSPI+RGB 1000 250 -20~70℃ -30~80℃
3 3.5" HC035IXA0040-G10 IPS 800*640 97.6*83.79*4.0mm 90.0*72.0mm 40pinSPI+RGB 1200 1000 -30~80℃ -40~90℃
4 3.5" HC035IXA0040-F13 IPS 800*640 97.6*83.79*4.0mm 90.0*72.0mm 40pinSPI+RGB 1200 1000 -20~70℃ -30~80℃
5 3.5" HC035IXA0077-G82 IPS 720*670 98.88*94.12*7.75mm 89.74*83.51mm 40pin RGB 1200 1000 -30~80℃ -30~80℃
6 4" HC040IXA4077-F34 IPS 720*720 110*112.49*7.7mm φ101.52mm 40pin MIPI 1000 1400 -30~85℃ -30-85℃
7 4" HC040IXA4077-F35 IPS 720*720 110*112.49*7.7mm φ101.52mm 40pinLVDS 1200 1000 -30~80℃ -30-85℃


Customization:


1.77 Inch Round TFT LCD Display Module

FAQ:

Q1. Can I have a sample order for LCD Display

A: Yes, we welcome sample order to test and check quality

Q2. What about the lead time?

A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).

Q3. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx.

Q4. How to proceed an order for LCD Display?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q5: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our products.

Q6: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
