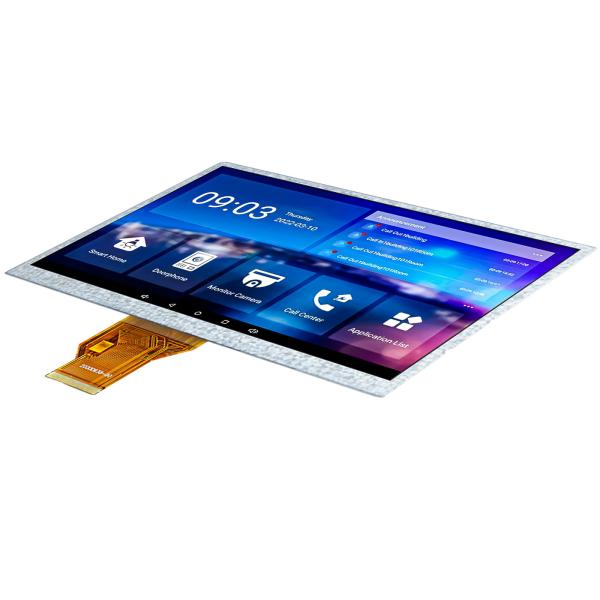

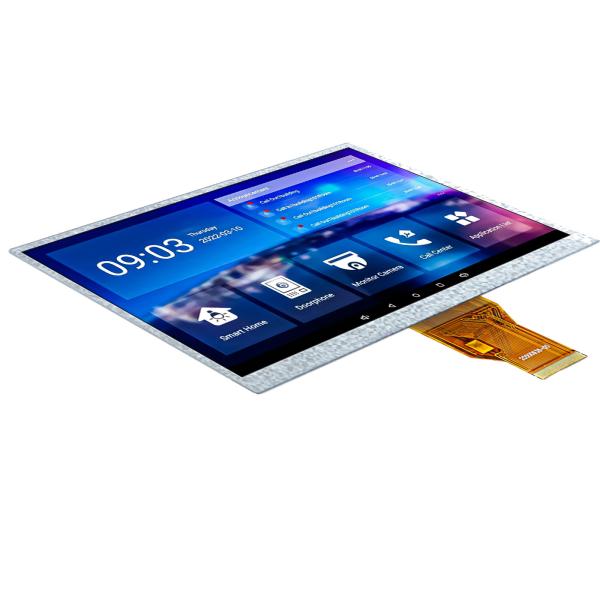

Normally White 9 Inch TFT LCD Display Module With 50pin RGB Interface
Normally White 9 Inch TFT LCD Display Module With 50pin RGB Interface
Normally White 9 Inch TFT LCD Display Module With 50pin RGB Interface
Normally White 9 Inch TFT LCD Display Module With 50pin RGB Interface
Normally White 9 Inch TFT LCD Display Module With 50pin RGB Interface
Normally White 9 Inch TFT LCD Display Module With 50pin RGB Interface
Specifications
Brand Name :
HETECH
Model Number :
HC090TG25050-D80
Certification :
ISO9001,ISO14001,ISO13485,IATF16949
Place of Origin :
China
MOQ :
100pcs
Payment Terms :
T/T
Supply Ability :
50K/month
Delivery Time :
4-6weeks
P/N :
HC090TG25050-D80
Size :
9"(TN)
Display type :
(TN)
Resolution :
800*480
Outline dimension :
211.1(W )*126.5(H)*5(T)mm
Active area :
198(W)*111.696(H)mm
Brightness :
250cd/m2
Interface :
50pinRGB
Viewing angle :
70/70/50/70
Operation Temp. :
-20~70℃
Storage Temp. :
-30~80℃
Contrast ratio :
500
Aspect rati16:9o :
16:9
Application :
12 channel ECG machine
Description

9 Inch TFT LCD display module with 16:9 Aspect Ratio and 50pin RGB Interface

Product Description:

HC090TG25050-D80 with 800*480 pixels resolution is a popular choice in the world of digital display technology, providing users with a vibrant visual experience. This 9-inch display has an outline dimension of 211.10mm*126.50mm*5.00mm that make it suitable for 12 channel ECG machine. With a 500:1 contrast ratio and 250 nits brightness, this display with a TN panel offers a comfortable viewing experience for indoor use while improving energy efficiency. The HC090TG25050-D80 uses a 50pin RGB interface that excels at precise color representation, making it suitable for applications where accurate color display is crucial. Additionally, the display has a wide operation temperature range of -20℃ to 70℃, suitable for use in harsh environments.


General Specification:

P/N HC090TG25050-D80
Size 9inch
Display type
Normally White, Transmissive
Resolution 800*480
Outline Dimension(mm) 211.1(W )*126.5(H)*5(T)mm
Active Area(mm) 198(W)*111.696(H)mm
Brightness(cd/m²) 250
Viewing Angle(L/R/T/B) 70/70/50/70
Interface 50pinRGB
Operation Temperature -20~70℃
Storge Temperature -30~80℃
Aspect ratio 16:9
Contrast ratio 500
Application 12 channel ECG machine

Pin assignment:

Normally White 9 Inch TFT LCD Display Module With 50pin RGB Interface

Product drawings:

Normally White 9 Inch TFT LCD Display Module With 50pin RGB Interface

9-inch lcd display series:

9-inch LCD Display Sizes
Warm reminds:if models listed below can't meet your requirements,customization can be made according to your specific requirements but it is not limited to LCM,RTP,CTP,driver board.etc.
No. Size Part No. LCD type Resolution Outline dimension Active area Interface Contrast ratio Brightness Operation temperature Storage temperature
1 9" HC090IK50057-C16 IPS 1024*600 211.10*126.50*5.7mm 196.61*114.15mm 40pinLVDS 800 500 -20~70℃ -30~80℃
2 9" HC090TG25050-D80 TN 800*480 211.10*126.50*5.00mm 198.00*111.7mm 50pinRGB 500 250 -20~70℃ -30~80℃
3 9" HC090TG35050-D80V.1 TN 800*480 211.10*126.50*6.50mm 198.00*111.7mm 50pinRGB 500 300 -20~70℃ -30~80℃
4 9" HC090TGA0057-97 TN 800*480 211.10*126.50*5.7mm 198.00*111.69mm 50pinRGB 500 1000 -20~70℃ -30~80℃
5 9" HC090IK50057-C16V.C IPS 1024*600 211.10*126.50*7.10mm 196.60*114.15mm 40pinLVDS 800 500 -20~70℃ -30~80℃
6 9" HC090IKA0057-C16H IPS 1024*600 211.10*126.50*5.70mm 196.60*114.15mm 40pinLVDS 800 1000 -20~70℃ -30~80℃
7 9" HC090TG35050-D80 TN 800*480 211.10*126.50*5.00mm 198.00*111.7mm 50pinRGB 500 350 -20~70℃ -30~80℃
8 9" HC090TG55050-D80 TN 800*480 211.10*126.50*5.00mm 198.00*111.7mm 50pinRGB 500 550 -20~70℃ -30~80℃


Customization:

Normally White 9 Inch TFT LCD Display Module With 50pin RGB Interface

FAQ:
Q1. Can I have a sample order for LCD Display
A: Yes, we welcome sample order to test and check quality
Q2. What about the lead time?
A: Usually 4~5 days for sample orders if goods are in stock, and 4~6 weeks for mass production (basing on the quantity and product).
Q3. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx.
Q4. How to proceed an order for LCD Display?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
B.Besides danmage caused by human factors, within one year warranty from the start of shipping.
If there are special conditions, the warranty time will be separately notified.
