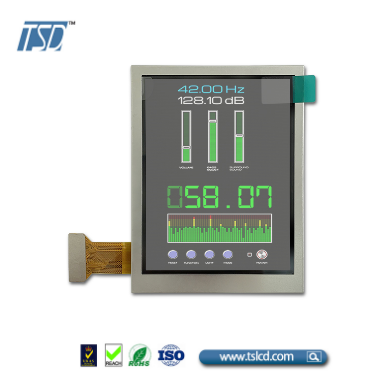

240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
Specifications
Place of Origin :
Guangdong, China
Model Number :
TST350FPQI-02
Brand Name :
TSD
Packaging Details :
240x320 transflective Lcd module qvga outdoor screen 3.5inch tft Lcd module
Packed in anti-static bag each,a certain quantity in one carton
Supply Ability :
5200000 Piece/Pieces per Month
MOQ :
Negotiable
Price :
Negotiable
Type :
Lcd Module
Display Size :
3.5inch
Supplier Type :
Manufacturer
Viewing direction :
6 O'clock
Resolution :
240x320
Active Area :
53.64x71.52mm
Outline Dimension :
64x85x3mm
Driver IC :
ILI9341V
Interface Type :
3wire SPI+RGB18-bit
Brightness :
150 Cd/m2
Backlight Type :
6LEDs
Warranty :
12 Months
Port :
Shenzhen/Hong Kong
Description
240x320 transflective Lcd module qvga outdoor screen 3.5inch tft Lcd module
240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
Item
Specification
Display Mode
3.5''/Transflective/Normally White
LCD Type
α-Si TFT
Part NO.
TST350FPQI-02
Resolution
240x(RGB)x320
Outline Size
64(W)x85(H)x3(D)mm
Active Area
53.64(W)x71.52(H)mm
View Direction
6 O'clock
Color Depth
65K
Pixel Pitch
0.2235x0.2235
Interface
3 wire SPI+RGB18-bit
Driver IC
ILI9341V
Backlight
6LEDs, 20mA, 19.2V
Surface Lumiannce
150nits
Input Voltage
2.8V
Operating Temperature
-20℃~70℃
Storage
Temperature
-30℃~80℃
About us
240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
Application
240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
What TSD has?
1)TFT LCD
Size:Our standard TFT LCD display size range from 0.96 inch to 13.3 inch, including 0.96”, 1.44", 1.77",
2", 2.2'', 2.4", 2.8", 3.2", 3.5", 4.3", 5", 5.5”, 7", 8", 10.1", 13.3”.
Brightness: can be designed per customer's requirements
Polarizer: TV, EWV, Ofilm
Connection: All kinds of FPC design supported

2)CTP CAPACITIVE TOUCH PANEL
Structure: G+G, G+F, G+F+F
Cover Lens: Glass (AR, AF, AG coating can be added), PMMA etc.
Driver: FT, GT, Atmel, ILITEK, ST, EETI etc.
Have standard one and also available to make the customization with different size, shape, color, logo etc.

3) Passive LCD
Mode: TN, HTN, STN, FSTN, DFSTN, VA
Structure: LCD Panel, COB, COG
Connection: Zebra,Pin, FPC, Rubber
Backlight: All kinds of design

4)HMI
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1''
Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
Packing & Delivery
240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
Customer Photos
240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
240x320 3.5 Inch Tft Lcd Display , ILI9341V Transflective Lcd Module
Related Products
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
