Specifications
Place of Origin :
Guangdong, China
Brand Name :
TSD
Packaging Details :
240x320 display lcd screen 2.0 inch lcd tft module wide viewing ips 3LEDs backlight
Packed in anti-static bag each,a certain quantity in one carton
Supply Ability :
50000 Piece/Pieces per Month
MOQ :
Negotiable
Price :
Negotiable
Type :
TFT, TFT LCD
Display Size :
2.0inch
Supplier Type :
Manufacturer
Resolution :
240x320
Viewing direction :
All O'clock
Active Area :
30.6x40.8mm
Interface Type :
MCU 8/16bit
Driver IC :
ST7789V
Backlight :
3LEDs, 20mA, 9.3V
Brightness :
400 Cd/m2
Operating Voltage :
2.8V
Surface Treatment :
Anti-glare
Port :
Shenzhen/Hong Kong
Description

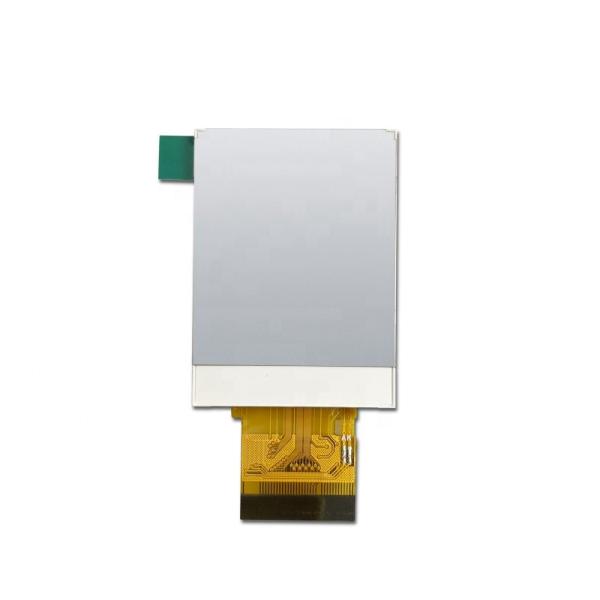

240x320 display lcd screen 2.0 inch lcd tft module wide viewing ips 3LEDs backlight
1000 nits 4.3 Inch Tft Lcd Display , high brightness lcd display 480x272
Item
Specification
Display Mode
2.0''/α-Si TFT/IPS/
Transmissive/Normally Black
Part NO.
TST020QVHS-03
Resolution
240x(RGB)x320
Outline Size
35.6x48.7x2.35mm
Active Area
30.6x40.8mm
View Direction
All O'clock
Color Depth
65K/262K
Interface
MCU 8/16-bit
Driver IC
ST7789V
Backlight
3LEDs, 20mA, 9.3V
Surface Lumiannce
400 cd/m2
Operating Voltage
2.8V
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
About us
1000 nits 4.3 Inch Tft Lcd Display , high brightness lcd display 480x272
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
1000 nits 4.3 Inch Tft Lcd Display , high brightness lcd display 480x272
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
1000 nits 4.3 Inch Tft Lcd Display , high brightness lcd display 480x272
1000 nits 4.3 Inch Tft Lcd Display , high brightness lcd display 480x272
1000 nits 4.3 Inch Tft Lcd Display , high brightness lcd display 480x272
Application
1000 nits 4.3 Inch Tft Lcd Display , high brightness lcd display 480x272
What TSD has?
1)TFT:
0.96''-13.3''(TN&IPS). Brightness can be designed per customer's requirement. Polarizer has TV, EWV, Ofilm. All kind of FPC design supported.

2) Passive:
display mode with TN, HTN, STN, FSTN, DFSTN, VA.
Structure has LCD Panel, COB, COG. Connection with Zebra, Pin, FPC, Rubber. Brightness can be designed per customer's requirement.

3)CTP:
we have standard one and also available to make the customization of with different size, shape, color, logo etc. Having G+G, G+F, G+F+F Structure. OCA and OCR Optical Bonding. Cover lens can add AR, AF,AG coating. Driver can be used FT, GT, Atmel,
ILITEK, ST...

4)HMI:
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1'' Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
1000 nits 4.3 Inch Tft Lcd Display , high brightness lcd display 480x272
Packing & Delivery
1000 nits 4.3 Inch Tft Lcd Display , high brightness lcd display 480x272
Customer Photos
1000 nits 4.3 Inch Tft Lcd Display , high brightness lcd display 480x272
1000 nits 4.3 Inch Tft Lcd Display , high brightness lcd display 480x272
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
