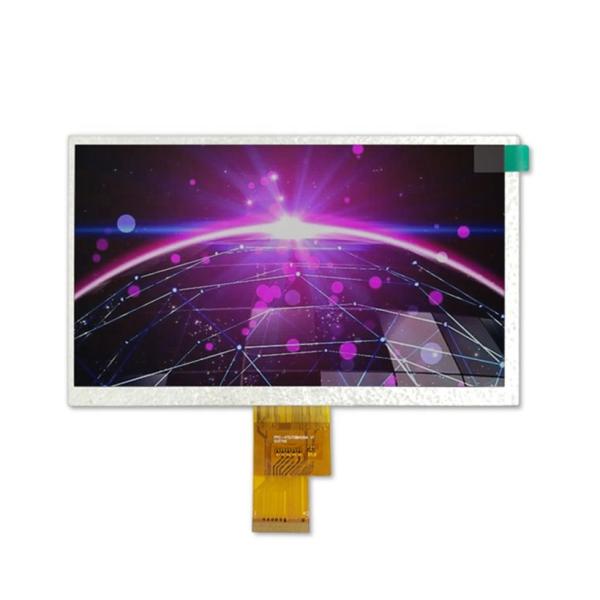

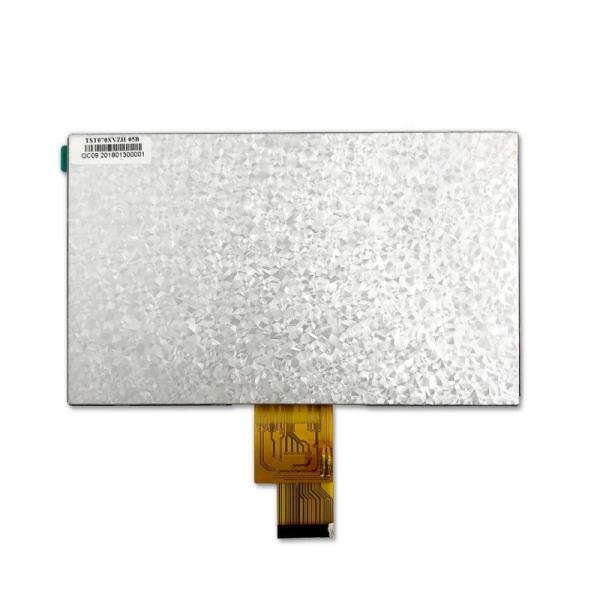

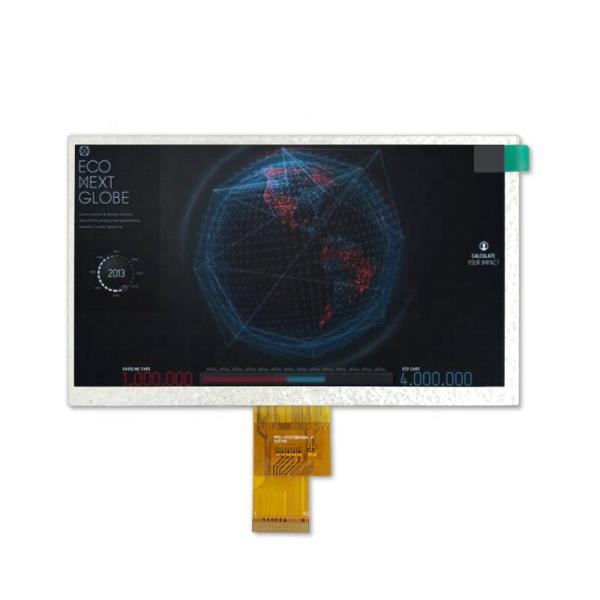

High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
Specifications
Place of Origin :
Guangdong, China
Brand Name :
TSD
Packaging Details :
High luminance 7.0inch screen tft lcd panel ips display wide viewing 30LEDs LVDS
Packed in anti-static bag each,a certain quantity in one carton
Supply Ability :
10000 Piece/Pieces per Month
Price :
Negotiable
Type :
TFT, TFT LCD
Display Size :
7.0inch
Supplier Type :
Manufacturer
Resolution :
1024x(RGB)x600
Active Area :
154.21x85.92mm
Outline Dimension :
164.9x100x3.5mm
Viewing direction :
All O'clock
Interface Type :
LVDS
Brightness :
1000 Cd/m2
Backlight :
30LEDs
Operating Voltage :
DVDD=3.3V
Color Depth :
16.7M
Port :
Shenzhen/Hong Kong
MOQ :
Negotiable
Description
High luminance 7.0inch screen tft lcd panel ips display wide viewing 30LEDs LVDS
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
Item
Specification
Display Mode
7.0''/α-Si TFT/IPS/
Transmissive/Normally Black
Part NO.
TST070XVZH-05B
Resolution
1024x(RGB)x600
Outline Size
164.9x100x3.5mm
Active Area(WxH)
154.21x85.92mm
View Direction
All O'clock
Pixel Pitch
0.1506x0.1432
Interface
LVDS
Driver IC
EK79001+EK73215
Backlight
30LEDs, 200mA, 17V
Surface Lumiannce
1000nits
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
About us
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
Application
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
What TSD has?
1)TFT:
0.96''-13.3''(TN&IPS). Brightness can be designed per customer's requirement. Polarizer has TV, EWV, Ofilm. All kind of FPC design supported.

2) Passive:
display mode with TN, HTN, STN, FSTN, DFSTN, VA.
Structure has LCD Panel, COB, COG. Connection with Zebra, Pin, FPC, Rubber. Brightness can be designed per customer's requirement.

3)CTP:
we have standard one and also available to make the customization of with different size, shape, color, logo etc. Having G+G, G+F, G+F+F Structure. OCA and OCR Optical Bonding. Cover lens can add AR, AF,AG coating. Driver can be used FT, GT, Atmel,
ILITEK, ST...

4)HMI:
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1'' Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
Packing & Delivery
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
Customer Photos
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
High Luminance Lcd Display 7 Inch 1024x600 , Tft Lcd Ips 30LEDs
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
