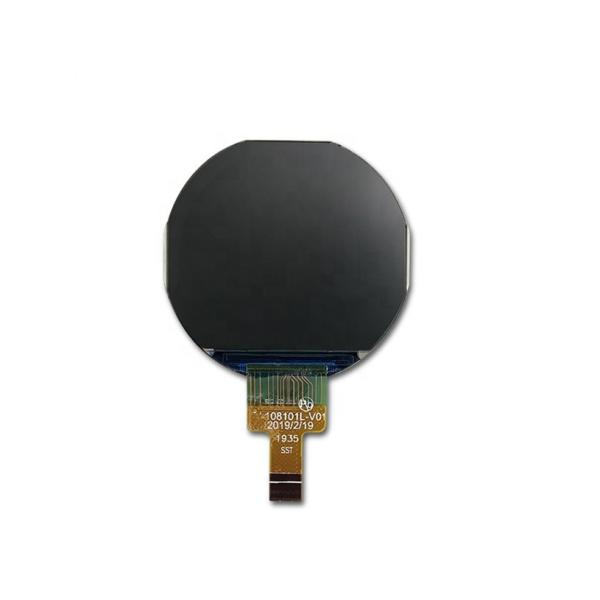

Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Specifications
Place of Origin :
Guangdong, China
Brand Name :
TSD
Packaging Details :
round lcd tft 1.08 inch 240x210 round screen with spi interface
Packed in anti-static bag each,a certain quantity in one carton
Supply Ability :
10000 Piece/Pieces per Month
MOQ :
Negotiable
Price :
Negotiable
Type :
TFT, TFT LCD
Display Size :
1.08inch
Supplier Type :
Manufacturer
Backlight :
2LEDs
Active Area :
27.58x24.13mm
Outline Dimension :
31.28x30.3x1.45mm
Resolution :
240x210
Interface Type :
4-SPI
Color :
65k
Viewing direction :
All O'clock
Driver IC :
GC9307
Port :
Shenzhen/Hong Kong
Description
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Small round 240*210 1.08 inch 4 line spi interface 13 pin ips screen tft lcd display module panel
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Item
Specification
Display Mode
1.08''/α-Si TFT/IPS/
Transmissive/Normally Black
Part NO.
TST108101
Resolution
240x(RGB)x210
Outline Size
31.28x30.3x1.45mm
Active Area(WxH)
27.58x24.13mm
View Direction
All O'clock
Color Depth
65K
Interface
4-SPI
Driver IC
GC9307
Backlight
2LEDs, 40mA, 3.2V
Surface Lumiannce
400nits
Connector
COG+FPC
Operating Temperature
-20℃~60℃
Storage Temperature
-30℃~70℃
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
More detailed datasheet can be provided! Click here to contact us!
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
What TSD has?
1)TFT:
0.96''-13.3''(TN&IPS). Brightness can be designed per customer's requirement. Polarizer has TV, EWV, Ofilm. All kind of FPC design supported.

2)Passive:
display mode with TN, HTN, STN, FSTN, DFSTN, VA.
Structure has LCD Panel, COB, COG. Connection with Zebra, Pin, FPC, Rubber. Brightness can be designed per customer's requirement.

3)CTP:
we have standard one and also available to make the customization of with different size, shape, color, logo etc. Having G+G, G+F, G+F+F Structure. OCA and OCR Optical Bonding. Cover lens can add AR, AF,AG coating. Driver can be used FT, GT, Atmel,
ILITEK, ST...

4)HMI:
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1'' Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
About us
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Production Process
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Application
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Exhibition & Certificate
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Packing & Delivery
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
Small Round TFT LCD Display 1.08inch 4 line spi interface GC9307 ips 13pin
