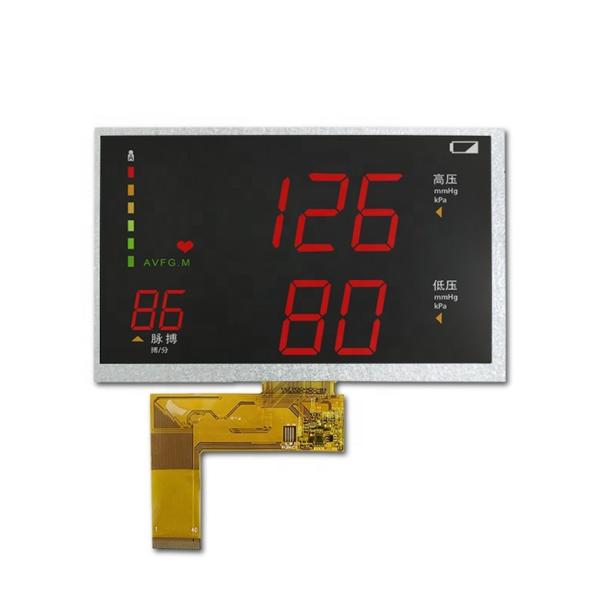

Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Specifications
Place of Origin :
Guangdong, China
Model Number :
TST070WVBE-32
Brand Name :
TSD
Packaging Details :
800x480 7 inch tft lcd display 500 nits brightness RGB interface lcd display
Packed in anti-static bag each,a certain quantity in one carton
Supply Ability :
50000 Piece/Pieces per Month
Price :
Negotiable
Type :
TN Panel, TFT LCD
Display Size :
7.0inch
Supplier Type :
Manufacturer
Active Area :
153.84x85.63mm
Resolution :
800x480
Outline Dimension :
164.9x100x3.25mm
Interface Type :
RGB 24bit
Viewing direction :
12 O'clock
Surface Treatment :
Anti-glare
Driver IC :
EK9716BD/BD3&EK73002ACGB
Brightness :
500 Cd/m2
Backlight :
21LEDs, 60mA, 22.4V
Port :
Shenzhen/Hong Kong
MOQ :
Negotiable
Description
800x480 7 inch tft lcd display 500 nits brightness RGB interface lcd display
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Item
Specification
Display Mode
7.0''/α-Si TFT/TN/
Transmissive/Normally White
Part NO.
TST070WVBE-32
Resolution
800x(RGB)x480
Outline Size
164.9x100x3.25mm
Active Area
153.84x85.63mm
View Direction
12 O'clock
Color Depth
16.7M
Interface
TTL(RGB-24bit)
Backlight
21LEDs, 60mA, 22.4V
Surface Lumiannce
500nits
Surface Treatment
Anti-glare
Operating Voltage
3.3V
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
About us
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Application
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
What TSD has?
1)TFT:
0.96''-13.3''(TN&IPS). Brightness can be designed per customer's requirement. Polarizer has TV, EWV, Ofilm. All kind of FPC design supported.

2) Passive:
display mode with TN, HTN, STN, FSTN, DFSTN, VA.
Structure has LCD Panel, COB, COG. Connection with Zebra, Pin, FPC, Rubber. Brightness can be designed per customer's requirement.

3)CTP:
we have standard one and also available to make the customization of with different size, shape, color, logo etc. Having G+G, G+F, G+F+F Structure. OCA and OCR Optical Bonding. Cover lens can add AR, AF,AG coating. Driver can be used FT, GT, Atmel,
ILITEK, ST...

4)HMI:
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1'' Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Packing & Delivery
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Customer Photos
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Rgb 24bits Tft Lcd Display Modules 7in 500 Nits 21LEDs Backlight
Related Products
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
