7 Inch 500 Nits 800x480 LVDS TFT LCD Display Module Of Automotive Standard
7 Inch 500 Nits 800x480 LVDS TFT LCD Display Module Of Automotive Standard
Specifications
Brand Name :
TSD
Model Number :
TSM070WVHN-117
Certification :
IATF16949/ISO13485/ISO9001/ISO14001
Place of Origin :
China
MOQ :
1
Price :
16.8
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
850KK per month
Delivery Time :
7 days
Packaging Details :
Normal foam package
Size :
7.0 inch
Resolution :
800*480
Interface :
LVDS
Brightness :
500 nits
Application :
Vehicle/Automotive industry
Active Area :
152.4*91.44 mm
Outline Dimension :
171*110*9.65 mm
Viewing Direction :
All o'clock
Pixel Pitch :
0.1905*0.1905
Contrast :
1000:1
Description

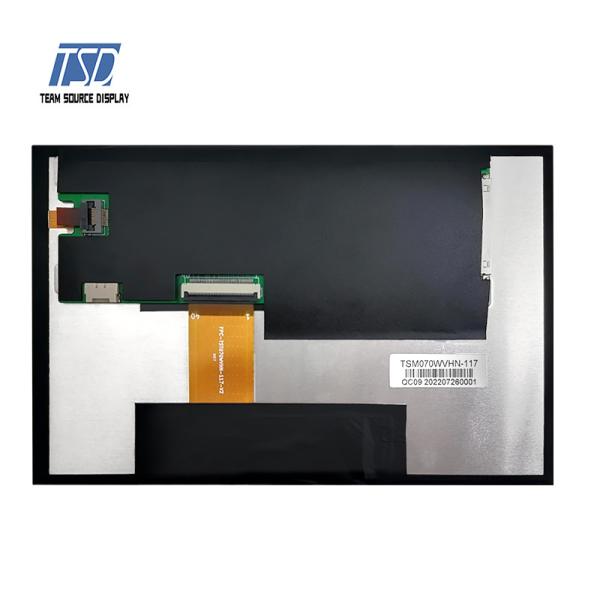

7 inch 500 nits 800*480 LVDS TFT LCD Display Module of Automotive Standard

TSD Display model TSM070WVHN-117 is a color active matrix thin film transistor liquid crystal display that uses amorphous silicon TFT as a switching device. This model is composed of a TFT LCD panel, a backlight and a driving circut, This model is composed of a TFT LCD panel, a backlight and a driving circuit. This TFT LCD has a 7.0(15:9) inch diagonally measured active display area with WVGA (800 horizontal by 480 vertical pixel) resolution.

Type: a-si TFT, transmissive, normally black, IPS

Size: 7 inch

Resolution: 800*480
Brightness: 500 nits typically
Active Area: 153.84 * 85.63 mm
Outline Dimension: 164.9 * 100 * 6.55 mm
Interface: LVDS 8 bits
Color Depth: 16.7M
Input Voltage: 3.3V
Backlight Voltage: 12V
Backlight Type: LEDs
Surface Treatment: anti-glare
Touchscreen: capacitive touch/resistive touch
Brand: TSD (Team Source Display)
Supplier Type: Leading LCD manufacturer in Shenzhen
Established: in 2004
Certificate: IATF 16949 / ISO 13485 / ISO 9001 / ISO 14001
Factory Area: 12000+ m2 dust-free workshop
Employee: 155 members
Main Product: color TFT LCD, touch screen, cover lens, custom made LCD, mono LCD, HMI LCD display etc

Size 7.0 inch diagonal LCD Type a-si TFT, Transmissive, Normally black, IPS
Resolution 800*480 Active Area 152.4*91.44 mm
Interface LVDS 8 bits Outline Dimension 171*110*9.65 mm
Brightness 500 nits Pixel Arrangement RGB-stripe
Contrast 1000:1 Pixel Pitch 0.1905*0.1905
Application Automotive/Vehicle Backlight Type LEDs
Viewing Angle 85 85 85 85 Deg Input Voltage 3.3V (typ.)
Electronstatic Discharge Test before delivery Yes Touch Screen Can make CTP/RTP
Working Temp -30/+85℃ Surface Hardness 3H
Storage Temp -40/+90℃ Surface Treatment Anti-glare
CTP Touch Input 5/10 points Customization interface/FPC/TP/brightness

7 Inch 500 Nits 800x480 LVDS TFT LCD Display Module Of Automotive Standard

1. What's your product?
Our product includes TFT LCD, LCD modules, touch screen and related accessories, such as driver board etc, as well as custom-made
LCD solutions.

2. Are you manufacturer or trader?
We are the leading LCD manufacturer in China since 2004.

3. Do you have R&D abilities?
Yes, we have 10 professional engineers stand up for your project.

4. What certification do you have?
IATF 16949 / ISO 13485 / RoHS / REACH / ISO 9001 etc

5. What's your customization item?
The full custom made LCD solutions: size, interface, brightness, FPC, touchscreen, cover lens, HDMI Board, UART display.

6. What's your MOQ?
For stock item, MOQ is 1 piece.
For customed item, MOQ is 1000 pieces.

7. What's your delivery time for stock item?
Normally 3 days.

8. What's your delivery time for customization sample?
25-30 days.

9. What's your delivery time for mass production?
< 5,000 pieces: 20 days
< 20,000 pieces: 30 days

10. What is your production capacity?
8KK per month

11. Why choose TSD display?
● Specialized in color lcd, monochrome lcd, touch panel and custom solutions
● 12000+ m2 dust-free workshop
● Work with Forbes Fortune companies
● ISO 9001/ ISO 14001
● ISO 13485 for medical device
● IATF 16949 for automotive display
