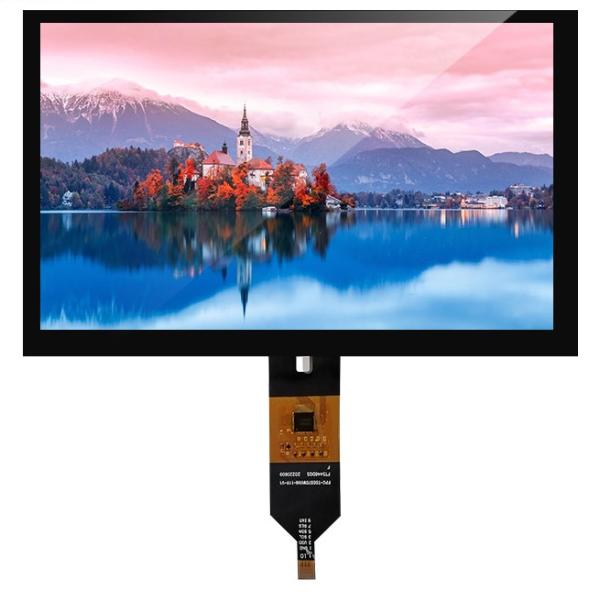

7 Inch Display 500 Nits 800x480 IPS RGB TFT LCD Panel With Board
7 Inch Display 500 Nits 800x480 IPS RGB TFT LCD Panel With Board
Specifications
Brand Name :
TSD
Model Number :
TSM070WVHN-119
Certification :
IATF16949/ISO13485/ISO9001/ISO14001
Place of Origin :
China
MOQ :
1
Price :
9.98
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
850KK per month
Delivery Time :
7 days
Packaging Details :
Normal foam package
Size :
7.0 inch
Resolution :
800*480
Outline Dimension :
171*110*9.65 mm
Active Area :
152.4*91.44 mm
Application :
Golf cart, home appliance
Interface :
RGB 18 bits
Brightness :
500 nits
Viewing Direction :
All o'clock
Operating Temperature :
-30/+85℃
Backlight Voltage :
18.0V
Description

Good Quality 7 inch 500 nits 800*480 IPS TFT LCD Display Module for Vehicle

TSM070WVHN-119 is TSD standard 7.0 inch lcd display, it is 15:9 ratio. RGB 18-bits interface, RoHS compliance. It can be used for TFT LCD monitor, industrial application, amusement and vehicle. It is IPS technology, user can clearly see the display from all direction. Plus it is high contrast, it's good for clear performance. TSD is professional lcd manufacturer since 2004, welcome your inquiry.

Type: a-si TFT, transmissive, normally black, IPS

Size: 7 inch

Resolution: 800*480
Brightness: 500 nits typically
Active Area: 153.84 * 85.63 mm
Outline Dimension: 171 * 110 * 9.65 mm
Interface: RGB interface
Color Depth: 16.7M
Input Voltage: 3.3V
Backlight Voltage: 18.0V
Backlight Type: LEDs
Surface Treatment: anti-glare
Touchscreen: can be capacitive/resistive touch
Brand: TSD (Team Source Display)
Supplier Type: Leading LCD manufacturer in Shenzhen
Established: in 2004
Certificate: IATF 16949 / ISO 13485 / ISO 9001 / ISO 14001
Factory Area: 12000+ m2 dust-free workshop
Employee: 155 members
Main Product: color TFT LCD, touch screen, cover lens, custom made LCD, mono LCD, HMI LCD display etc

Size 7.0 inch diagonal LCD Type a-si TFT, Transmissive, Normally white, TN
Resolution 800*480 Active Area 153.84 * 85.63 mm
Interface RGB interface with HDMI board Outline Dimension 164.9 * 100 * 6.55 mm
Brightness 500 nits Pixel Arrangement RGB-stripe
Contrast 500:1 Pixel Pitch 0.1905 x 0.1905
Technology IPS Backlight Voltage 18.0V
Viewing Angle 85 85 85 85 Deg Input Voltage 3.3V (typ.)
Vibration Test before delivery Yes Touch Screen Can make CTP/RTP
Working Temp -30/+85℃ Surface Hardness 3H
Storage Temp -40/+90℃ Surface Treatment Anti-glare
CTP Touch Input 5/10 points Customization interface/FPC/TP/brightness

7 Inch Display 500 Nits 800x480 IPS RGB TFT LCD Panel With Board

1. What's your product?
Our product includes TFT LCD, LCD modules, touch screen and related accessories, such as driver board etc, as well as custom-made
LCD solutions.

2. Are you manufacturer or trader?
We are the leading LCD manufacturer in China since 2004.

3. Do you have R&D abilities?
Yes, we have 10 professional engineers stand up for your project.

4. What certification do you have?
IATF 16949 / ISO 13485 / RoHS / REACH / ISO 9001 etc

5. What's your customization item?
The full custom made LCD solutions: size, interface, brightness, FPC, touchscreen, cover lens, HDMI Board, UART display.

6. What's your MOQ?
For stock item, MOQ is 1 piece.
For customed item, MOQ is 1000 pieces.

7. What's your delivery time for stock item?
Normally 3 days.

8. What's your delivery time for customization sample?
25-30 days.

9. What's your delivery time for mass production?
< 5,000 pieces: 20 days
< 20,000 pieces: 30 days

10. What is your production capacity?
8KK per month

11. Why choose TSD display?
● Specialized in color lcd, monochrome lcd, touch panel and custom solutions
● 12000+ m2 dust-free workshop
● Work with Forbes Fortune companies
● ISO 9001/ ISO 14001
● ISO 13485 for medical device
● IATF 16949 for automotive display
