HDMI Interface 800x480 Resolution TFT LCD Display 4.3 Inch ST7262E43
HDMI Interface 800x480 Resolution TFT LCD Display 4.3 Inch ST7262E43
HDMI Interface 800x480 Resolution TFT LCD Display 4.3 Inch ST7262E43
HDMI Interface 800x480 Resolution TFT LCD Display 4.3 Inch ST7262E43
HDMI Interface 800x480 Resolution TFT LCD Display 4.3 Inch ST7262E43
HDMI Interface 800x480 Resolution TFT LCD Display 4.3 Inch ST7262E43
Specifications
Brand Name :
TSD
Model Number :
TSM043WVBS-79
Certification :
ISO9001, ISO14001, IATF6949, ISO13485
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, PayPal, Western Union.
Supply Ability :
3000 Tons/Month
Delivery Time :
7-35 work days
Packaging Details :
Packed in anti-static bag each, a certain quantity in one carton.
Resolution :
800xRGBx480 ST7262E43
Outline Size :
105.50x67.20x4.15
Viewing Area :
95.04x53.86
Viewing Direction :
ALL
Interface :
HDMI
Brightness :
400-440
Touch Type :
with/without RTP/CTP
Operating Temperature :
-30--85/-20--70 ℃
Storage Temperature :
-30--80 ℃
Description

4.3'' 4.3 Inch HDMI Interface 800x480 Resolution TFT LCD Display

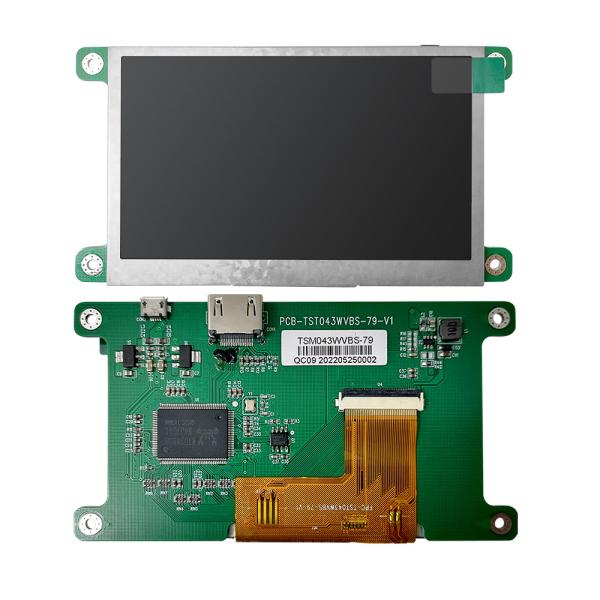

TSM043WVBS-79 is a 800x480 resolution IPS TFT LCD display with a HDMI board. This display is 400-440nits brightness, and the outline size is 105.50x67.20x4.15mm, the active area is 95.04x53.86mm. This

If you are interested in our this 3.5 inch TFT LCD display module or other modules and want more information, please check below details and do not hesitate to contact us.

Quick Details

LCD type
4.3 inch TFT LCD display with HD MI board
Part No.
TSM043WVBS-79
Resolution
800xRGBx480
Outline dimension
105.50x67.20x4.15mm
Active Area
95.04x53.86mm
Interface
HDMI
Brightness
400-440nits
Viewing angle
All
Driver IC
ST7262E43
Operation temperature
-20℃ to +70℃
Storage temperature
-30℃ to +80℃

HDMI Interface 800x480 Resolution TFT LCD Display 4.3 Inch ST7262E43

Applications

HDMI Interface 800x480 Resolution TFT LCD Display 4.3 Inch ST7262E43


We have developed thousands of LCD display modules for automotive products, medical equipments, consumer electronics, IOT products, smart wearable devices, PDA, POS, smart home applications, white goods, industrial and integration equipments, communication devices, fiscal products, measuring and meter devices, etc.
You can choose from our extensive range, including TFT LCD display, Touch Screen, Monochrome LCD display, graphic display, custom LCD panel, COG and COB display.
Packing & Delivery
HDMI Interface 800x480 Resolution TFT LCD Display 4.3 Inch ST7262E43
We usually arrange the shipment of samples in 3 working days after received the payment if there are some related LCD display samples in stock. The out of stock samples and mass production should be negotiated with us.
As for shipping methods, we support various shipping methods, such as DHL, UPS, FedEx, EMS TNT, etc. Customers can arrange the transportation by themselves, or negotiate with us about the corresponding transportation method.
FAQ
1. Can TSD support custom display?
Of course, we are professional LCD display manufacturer, we have our own factory, we can customize a display for our customers according to their requirements or drawings.
2. May I know your TFT LCD display size range?

Our TFT LCD display ranges from 0.96-32 inch, also support to add a capacitive/resistive touch panel or HDMI board.

3. This display is RGB interface, what should I do if I need a MCU interface?
If you did not find the MCU interface display on our website, you can contact us, tell us the size, resolution that you want, then we will check if we have standard one is MCU interface. If we do not have standard MCU interface display for that size, we can add a PCB with SSD1963 IC for you. In this way, the RGB interface can be MCU interface.
