1280×1024 250cd/m2 86PPI WLED LCD Screen 19.0 LM190E0A-SLD1 89/89/89/89 (Typ.)(CR≥10)
1280×1024 250cd/m2 86PPI WLED LCD Screen 19.0 LM190E0A-SLD1 89/89/89/89 (Typ.)(CR≥10)
1280×1024 250cd/m2 86PPI WLED LCD Screen 19.0 LM190E0A-SLD1 89/89/89/89 (Typ.)(CR≥10)
1280×1024 250cd/m2 86PPI WLED LCD Screen 19.0 LM190E0A-SLD1 89/89/89/89 (Typ.)(CR≥10)
1280×1024 250cd/m2 86PPI WLED LCD Screen 19.0 LM190E0A-SLD1 89/89/89/89 (Typ.)(CR≥10)
1280×1024 250cd/m2 86PPI WLED LCD Screen 19.0 LM190E0A-SLD1 89/89/89/89 (Typ.)(CR≥10)
Specifications
Brand Name :
LG DISPLAY
Model Number :
LM190E0A-SLD1
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Supply Ability :
1000PCS
Delivery Time :
1-2 DAYS
Packaging Details :
STANDARD PACKING
MODEL NUMBER :
LM190E0A-SLD1
TEMPERATURE RANGE :
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
VIEWING ANGLEG :
89/89/89/89 (Typ.)(CR≥10)
RESOLUTION :
1280(RGB)×1024 (SXGA) 86PPI
Lamp Type :
WLED
BRIGHTNESS :
250CD/M2
SIZE :
19.0INCH
BRAND :
LG DISPLAY
Description

LG Display LM190E0A-SLD1 Application Features

Basic Information : Brand Name Model Name Type Model Alias

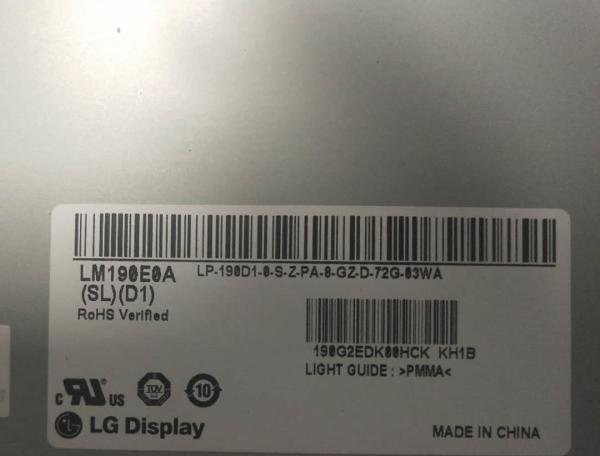

LM190E0A-SLD1 a-Si TFT-LCD , LCM LM190E0A (SL)(D1)
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
0 ~ 50 °C -20 ~ 60 °C

LG Display LM190E0A-SLD1 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
250 cd/m² (Typ.) AH-IPS, Normally Black, Transmissive 1000:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
Symmetry 89/89/89/89 (Typ.)(CR≥10) 14 (Typ.)(G to G) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 16.7M (6-bit + Hi-FRC) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
73% 95% 74%
DCI-P3 Coverage Rec.2020 Coverage Remarks
76% 54% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.33 (Max.)(9 points)

LG Display LM190E0A-SLD1 Backlight Features

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
WLED Edge light type (Right side) 30K(Min.) 19S2P 2 strings -
WLED Electrical : Input Voltage Input Current Power Consumption
56.1±3.8V 70/75mA (Typ./Max.) 7.8/8.4W (Typ./Max.)
Interface Features : WLED Driver State Physical Type Interface Position
No Connector
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
YEONHO 10035WR-H06D 1 pcs 6 pins 1.0 mm BLE-6PINS-CNAANC

LG Display LM190E0A-SLD1 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
5.0V (Typ.) 430/540mA (Typ./Max.) 2.15/2.70W (Typ./Max.)
Interface Features : Signal Type Physical Type Interface Position
LVDS (2 ch, 8-bit) Connector
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
UJU IS100-L30O-C23 1 pcs 30 pins 1.0 mm LVDS-30P2C8B-160B

LG Display LM190E0A-SLD1 Packing Features

Package Box : Amount Weight Size (L×W×H)
14 pcs / box - 418×365×492 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
