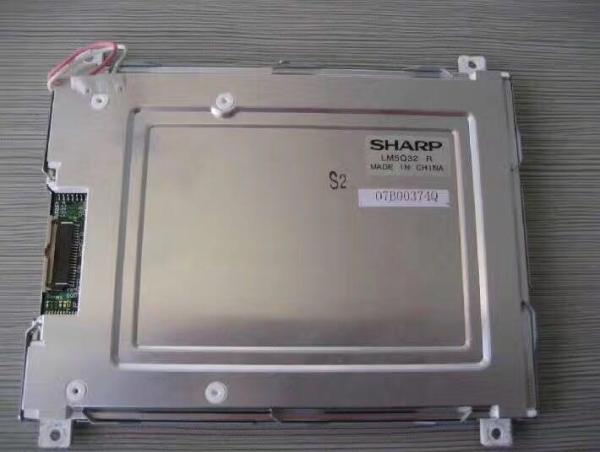

5 LCM 320×240RGB  120cd/m² LM5Q32R Sharp TFT LCD Display
5 LCM 320×240RGB  120cd/m² LM5Q32R Sharp TFT LCD Display
5 LCM 320×240RGB  120cd/m² LM5Q32R Sharp TFT LCD Display
5 LCM 320×240RGB  120cd/m² LM5Q32R Sharp TFT LCD Display
5 LCM 320×240RGB  120cd/m² LM5Q32R Sharp TFT LCD Display
5 LCM 320×240RGB  120cd/m² LM5Q32R Sharp TFT LCD Display
5 LCM 320×240RGB  120cd/m² LM5Q32R Sharp TFT LCD Display
5 LCM 320×240RGB  120cd/m² LM5Q32R Sharp TFT LCD Display
Specifications
Brand Name :
SHARP
Model Number :
LM5Q32R
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :
100PCS
Delivery Time :
1-2 DAYS
Packaging Details :
STANDARD PACKING
Brand :
Sharp
Model :
LM5Q32R
Luminance :
120 cd/m² (Typ.)
Diagonal Size :
5.0INCH
Light Source :
CCFL [1 pcs] , 15K hours , W/O Driver
Pixel Format :
320(RGB)×240 [QVGA] 80PPI
Interface Type :
Parallel Data (8-bit) , 20 pins Connector
Environment :
Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -25 ~ 65 °C
Description

Sharp LM5Q32R Mechanical Features

Screen Size : 5.0"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
320(RGB)×240, QVGA RGB Vertical Stripe 0.105×0.315 mm 0.315×0.315 mm [80PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
100.8×75.6 mm 103.4×78.3 mm 134×113 mm 10.5 (Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
150g (Typ.) - -

Sharp LM5Q32R Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
120 cd/m² (Typ.) STN, Normally Black, Transmissive 30:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
6 o'clock 35/35/15/25 (Typ.)(CR≥5) 150/50 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
8558K Color X:0.290; Y:0.300

Sharp LM5Q32R Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
5.0V (Typ.) 3/5mA (Typ./Max.) 310/400mW (Typ./Max.)
Interface Features : Signal Type Physical Type Interface Position
Parallel Data (8-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
FCI SFR20R-1ST 1 pcs 20 pins 0.8 mm

Sharp LM5Q32R Backlight Features

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
CCFL Edge light type (Top side) 15K(Min.) 1 pcs Straight -
CCFL Electrical : Input Voltage Input Current Power Consumption
720V (Typ.) 4.0±1mA 2.9W (Typ.)
Operating Frequency Startup Voltage
30/80KHz (Min./Max.) 1280/1600V (Max.)(Ta=+25/0℃)
Interface Features : CCFL Driver State Physical Type Interface Position
No Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JST BHR-03VS-1 1 pcs 3 pins 4.0 mm BLL-3PINS-LNH

LM5Q32R supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 100.8(W)×75.6(H) mm, outline size of 134(W)×113(H)×10.5(D) mm, viewing area size of 103.4(W)×78.3(H) mm, net weight of 150g (Typ.). As a STN, Normally Black, Transmissive LCM product, LM5Q32R can provides 120 cd/m² display brightness 30:1 transimissive contrast ratio, 35/35/15/25 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 150/50 (Typ.)(Tr/Td) ms., thus presenting a palette of Color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 15K hours, external backlight driver is additionally needed.
