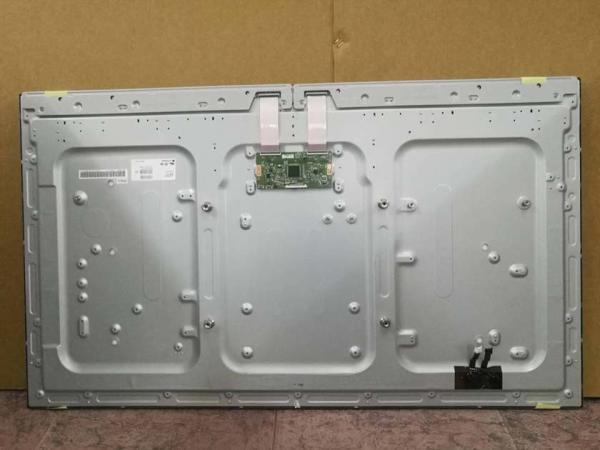

LC430EUE-FHM1 LG Display 43 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY
LC430EUE-FHM1 LG Display 43 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY
LC430EUE-FHM1 LG Display 43 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY
LC430EUE-FHM1 LG Display 43 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY
LC430EUE-FHM1 LG Display 43 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY
LC430EUE-FHM1 LG Display 43 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY
LC430EUE-FHM1 LG Display 43 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY
LC430EUE-FHM1 LG Display 43 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY
Specifications
Brand Name :
LG Display
Model Number :
LC430EUE-FHM1
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :
120PCS
Delivery Time :
1-2 DAYS
Packaging Details :
STANDARD PACKING
MODEL NUMBER :
LC430EUE-FHM1
BRAND :
LG Display
SIZE :
43 inch
BRIGHTNESS :
300CD/M2
Lamp Type :
WLED
RESOLUTION :
1920(RGB)×1080 [FHD] 51PPI
VIEWING ANGLEG :
89/89/89/89 (Typ.)(CR≥10)
TEMPERATURE RANGE :
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
Description

LG Display LC430EUE-FHM1 Application Details

Basic Detail : Manufacturer Model Name LC430EUE-FHM1
Panel Type a-Si TFT-LCD , LCM Another Name LC430EUE (FH)(M1)
Panel Size 43 inch Designed For
Maximum Ratings : OP Temperature 0 ~ 50 °C ST Temperature -20 ~ 60 °C

LG Display LC430EUE-FHM1 Optical Details

Basic Information : Luminance 300 cd/m² (Typ.) Contrast Ratio 1200 : 1 (Typ.) (Transmissive)
Good View at Symmetry Response Speed 6 (Typ.)(G to G) (ms)
Viewing Angle 89/89/89/89 (Min.)(CR≥10) Operating Mode IPS, Normally Black, Transmissive
Color Performance : Chromaticity Wx:0.281; Wy:0.288 Support Color 16.7M (8-bit)
Color Temperature 9966K White Uniformity 1.54 (Max.)(9 points)
1931 Color Gamlt : NTSC Ratio 72% sRGB 97% coverage
Adobe RGB 74% coverage DCI-P3 75% coverage
Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

LG Display LC430EUE-FHM1 Mechanical Details

Pixel Features : Number of Pixel 1920(RGB)×1080 [FHD] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.1634×0.4902 mm Pixel Pitch(W×H) 0.4902×0.4902 mm [51PPI]
Physical Size : Active Viewing 941.184(W)×529.416(H) mm Overall Dim. 973(W)×565.8(H) mm
Bezel Opening 945.8(W)×533.87(H) mm Overall Depth 28.6 (Typ.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 16:9 Shape Style
Other Detail : Mass 7.00/7.35Kgs (Typ./Max.) Surface Antiglare (Haze 1%), Hard coating (3H)

LG Display LC430EUE-FHM1 Interface Details

Signal Electrical : Input Current 350/450mA (Typ.) Input Voltage 12.7V (Typ.)
Consumption 4.4/5.8W (Typ./Max.) Signal Interface LVDS (2 ch, 8-bit)
Interface Features : Position Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JAE FI-RXE51S-HF 1 pcs 0.5 mm 51 pins

LG Display LC430EUE-FHM1 Lightting Details

Lamp Features: Lamp Shape - Lamp Type WLED Position Direct light type
Exchange - Amount - Life 30K(Min.) (Hours)
Lamp Electrical : Input Current 180mA (Typ.) Input Voltage 120.5/140.0V (Typ./Max.)
Consumption 43.4/50.4W (Typ./Max.)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
YEONHO SMH200-H07M 1 pcs 2.0 mm 7 pins BLE-7PINS-CNANCNA
Backlight Driver : No

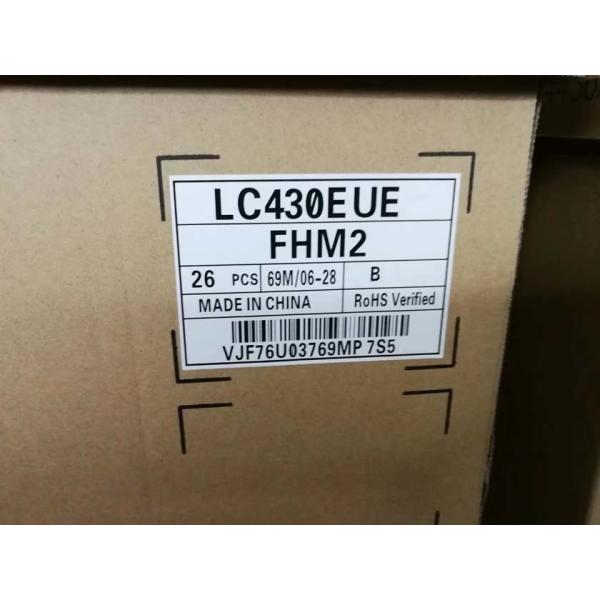

LG Display LC430EUE-FHM1 Packing Details

Package Box : Amount Size (L×W×H) Weight
26 pcs / box 1300×1140×746 mm

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
