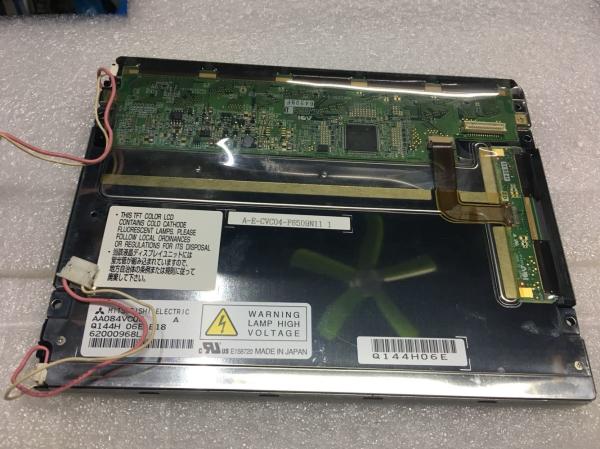

AA084VC04 8.4 640(RGB)×480 480 cd/m² Storage Temp.: -20 ~ 80 °C Mitsubishi INDUSTRIAL LCD DISPLAY
AA084VC04 8.4 640(RGB)×480 480 cd/m² Storage Temp.: -20 ~ 80 °C Mitsubishi INDUSTRIAL LCD DISPLAY
AA084VC04 8.4 640(RGB)×480 480 cd/m² Storage Temp.: -20 ~ 80 °C Mitsubishi INDUSTRIAL LCD DISPLAY
AA084VC04 8.4 640(RGB)×480 480 cd/m² Storage Temp.: -20 ~ 80 °C Mitsubishi INDUSTRIAL LCD DISPLAY
AA084VC04 8.4 640(RGB)×480 480 cd/m² Storage Temp.: -20 ~ 80 °C Mitsubishi INDUSTRIAL LCD DISPLAY
AA084VC04 8.4 640(RGB)×480 480 cd/m² Storage Temp.: -20 ~ 80 °C Mitsubishi INDUSTRIAL LCD DISPLAY
AA084VC04 8.4 640(RGB)×480 480 cd/m² Storage Temp.: -20 ~ 80 °C Mitsubishi INDUSTRIAL LCD DISPLAY
AA084VC04 8.4 640(RGB)×480 480 cd/m² Storage Temp.: -20 ~ 80 °C Mitsubishi INDUSTRIAL LCD DISPLAY
Specifications
Brand Name :
Mitsubishi
Model Number :
AA084VC04
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :
50PCS
Delivery Time :
1-3 DAYS
Packaging Details :
STANDARD PACKING
MODEL NUMBER :
AA084VC04
BRAND :
Mitsubishi
SIZE :
8.4 inch
RESOLUTION :
640(RGB)×480, VGA, 122PPI
BRIGHTNESS :
480 cd/m² (Typ.)
TEMPERATURE RANGE :
Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -20 ~ 80 °C
Description

Mitsubishi AA084VC04 Application Features

Basic Information : Brand Name Model Name Type Model Alias
AA084VC04 a-Si TFT-LCD , LCM T-51638D084J-FW-A-AC
Maximum Ratings : RoHS Operating Temperature Storage Temperature Vibration Level
-20 ~ 70 °C -20 ~ 80 °C

Mitsubishi AA084VC04 Mechanical Features

Screen Size : 8.4"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
640(RGB)×480, VGA RGB Vertical Stripe 0.089×0.267 mm 0.267×0.267 mm [95PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
170.88×128.16 mm 174.9×132.2 mm 199.5×149 mm 11.5±0.5 mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
360g (Typ.) - Hard coating (2H), Antireflection

Mitsubishi AA084VC04 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
480 cd/m² (Typ.) TN, Normally White, Transmissive 500:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
6 o'clock 65/65/50/60 (Typ.)(CR≥10) 6/19 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6611K 262K (6-bit) X:0.311; Y:0.327
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
39% 55% 41%
DCI-P3 Coverage Rec.2020 Coverage Remarks
41% 29% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Mitsubishi AA084VC04 Electronics Features

Refresh Rate : 60Hz
Reverse Scan : Yes (180°)

Mitsubishi AA084VC04 Backlight Features

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
CCFL Edge light type (Top and Bottom) 50K(Min.) 2 pcs Straight Replaceable
CCFL Electrical : Input Voltage Input Current Power Consumption
450V (Typ.) 3.0/6.5/7.0mA (Min./Typ./Max.)
Operating Frequency Startup Voltage
30/60KHz (Typ.) 1000/1200/1350V (Min.)(Ta=+25/0/-20℃)
Interface Features : CCFL Driver State Physical Type Interface Position
No Connector
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JST BHR-02(8.0)VS-1N 2 pcs 2 pins 8.0 mm BLL-2PINS-HL

Mitsubishi AA084VC04 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.)(VCC) 240/400mA (Typ./Max.)(ICC) -
Voltage for Display Signals : 0≤VIL≤0.8V; 2.4V≤VIH≤5.5V
Interface Features : Signal Type Physical Type Interface Position
CMOS (1 ch, 6-bit) Connector
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
HRS DF9B-31P-1V 1 pcs 31 pins 1.0 mm DRGB-31P1C6B-010F
