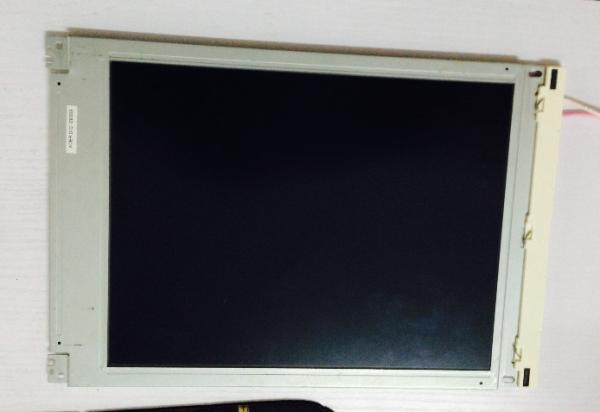

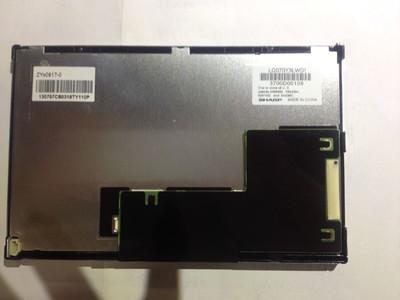

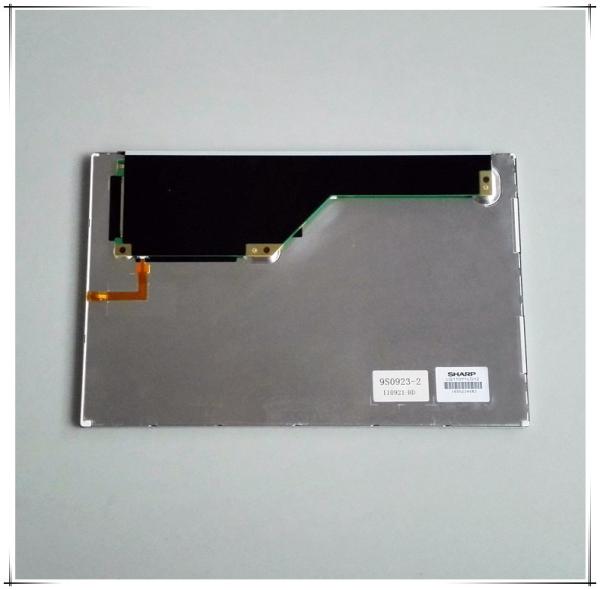

LQ110Y1LG12 11Inch 85PPI 800×480 RGB Sharp TFT LCD Display
LQ110Y1LG12 11Inch 85PPI 800×480 RGB Sharp TFT LCD Display
LQ110Y1LG12 11Inch 85PPI 800×480 RGB Sharp TFT LCD Display
LQ110Y1LG12 11Inch 85PPI 800×480 RGB Sharp TFT LCD Display
LQ110Y1LG12 11Inch 85PPI 800×480 RGB Sharp TFT LCD Display
LQ110Y1LG12 11Inch 85PPI 800×480 RGB Sharp TFT LCD Display
LQ110Y1LG12 11Inch 85PPI 800×480 RGB Sharp TFT LCD Display
LQ110Y1LG12 11Inch 85PPI 800×480 RGB Sharp TFT LCD Display
Specifications
Brand Name :
SHARP
Model Number :
LQ110Y1LG12
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability :
1000PCS
Delivery Time :
1-2 DAYS
Packaging Details :
20 pcs / box 11 Kgs 447×423×318 mm
Panel Model :
LQ110Y1LG12
Panel Size :
11Inch
Brightness :
330 cd/m² (Typ.)
Resolution :
800(RGB)×480, WVGA, 85PPI
Lamp Type :
WLED , 30K hours , With LED Driver
Signal Interface :
LVDS (1 ch, 8-bit) , 30 pins Connector
Environment :
Operating Temp.: -10 ~ 75 °C ; Storage Temp.: -30 ~ 75 °C
Pixel Format :
RGB Vertical Stripe
Description

LQ110 Series LQ110Y3DG01 LQ110Y1LG12

Sharp LQ110Y1LG12 Mechanical Details

Pixel Features :
Pixel Format
800(RGB)×480, WVGA
Dot Pitch
0.0995×0.2985 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.2985×0.2985 mm (H×V) [85PPI]
Mechanical Size :
Display Area
238.8×143.28 mm (H×V)
Bezel Area
241.2×146.9 mm (H×V)
Outline Dim.
257×164.5 mm (H×V)
Outline Depth
9.4 (Typ.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
15:9 (H:V)
Shape Style
Other Features :
Weight
420g (Max.)
Surface
Antiglare, Hard coating (3H)

Sharp LQ110Y1LG12 Optical Details

Basic Information :
Brightness
330 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/70/50/70 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
6 o'clock
Response Time
23.0 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.300; Wy:0.315
Color Numbers
16.2M (6-bit + FRC)
Color Temperature
7435K
Uniformity
1.33 (Max.)(5 points)
1931 Color Gamlt :
NTSC Ratio
71%
sRGB
92% coverage
Adobe RGB
72% coverage
DCI-P3
73% coverage
Rec.2020
53% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

Sharp LQ110Y1LG12 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
30K(Typ.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
With LED Driver
Driver Electrical :
Voltage Input
12.0±1.8V
Current Input
380/550mA (Typ./Max.)

Sharp LQ110Y1LG12 Interface Detail

Signal Systerm :
LVDS (1 ch, 8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
400/450mA (Typ./Max.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JAE
FI-XPB30SRL-HF11
1.0 mm
30 pins
1 pcs

LQ110Y1LG12 supports display 800(RGB)×480 (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 238.8(W)×143.28(H) mm, outline size of 257(W)×164.5(H)×9.9(D) mm, viewing area size of 241.2(W)×146.9(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 420g (Max.). As a TN, Normally White, Transmissive LCM product, LQ110Y1LG12 can provides 330 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 23.0 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + FRC gray scale signal for each dot, thus presenting a palette of 16.2M colors, also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. LQ110Y1LG12 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.).
