AT070TN84 TP Innolux 7.0 800(RGB)×480 360 cd/m² INDUSTRIAL LCD DISPLAY
AT070TN84 TP Innolux 7.0 800(RGB)×480 360 cd/m² INDUSTRIAL LCD DISPLAY
AT070TN84 TP Innolux 7.0 800(RGB)×480 360 cd/m² INDUSTRIAL LCD DISPLAY
AT070TN84 TP Innolux 7.0 800(RGB)×480 360 cd/m² INDUSTRIAL LCD DISPLAY
AT070TN84 TP Innolux 7.0 800(RGB)×480 360 cd/m² INDUSTRIAL LCD DISPLAY
AT070TN84 TP Innolux 7.0 800(RGB)×480 360 cd/m² INDUSTRIAL LCD DISPLAY
Specifications
Brand Name :
INNOLUX
Model Number :
AT070TN84 TP
Certification :
ISO9001
Place of Origin :
JAPAN
MOQ :
1PCS
Payment Terms :
TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability :
500PCS
Delivery Time :
1-2 DAYS
Packaging Details :
STANDARD PACKING
MODEL NUMBER :
AT070TN84 TP
BRAND :
INNOLUX
SIZE :
7.0INCH
RESOLUTION :
800(RGB)×480 (WVGA) 133PPI
BRIGHTNESS :
360CD/M2
VIEWING ANGLEG :
70/70/50/70 (Typ.)(CR≥10)
Lamp Type :
WLED
TEMPERATURE RANGE :
Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C
Description

Innolux AT070TN84 TP Application Features

Basic Information : Manufacturer Panel Model Panel Type Alias
AT070TN84 TP a-Si TFT-LCD , LCM -
Environment : RoHS State Operating Temp. Storage Temp. Vibration Level
-10 ~ 60 °C -20 ~ 70 °C

Innolux AT070TN84 TP Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
360 (Typ.) 70/70/50/70 (Typ.)(CR≥10) 10/15 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
6 o'clock TN, Normally White, Transmissive 500 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6638K 262K (6-bit) X:0.310; Y:0.330
White Variation : 1.33/1.43 (Typ./Max.)(9 points)

Innolux AT070TN84 TP Mechanical Features

Panel Size : 7.0"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
800(RGB)×480 [WVGA] RGB Vertical Stripe 0.1905×0.1905 [133PPI] 0.0635×0.1905
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
152.4(H) × 91.44(V) 155.0(H) × 94.3(V) 165(H) × 104(V) 6.5±0.3 mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 15:9 (H:V)
Touch Screen : Controller & Signal type Touch Points Supported OS System TP Technology
- - - 4-wire Resistive Touch
Mounting : Without
Other Detail : Weight Panel Cover Treatment
160g (Typ.) - Antiglare

Innolux AT070TN84 TP Electronics Features

Reverse Scan : Yes (U/D, L/R)
Vertical Frequency : 60Hz
Power Consumption : 3.325W (Typ.)
Time Controller (T-CON) : Embedded T-CON

Innolux AT070TN84 TP Backlight Features

Lamp Features: Type Position Quantity Shape Life(Hours) Lamp Exchange
WLED Edge light type - - 20K(Min.) -
Interface Features : Position Backlight Driver Type
- With LED Driver Included in signal interface
Driver Electrical : Voltage Supply Current Supply Power Consumption
5.0V (Typ.) 500/550mA (Typ./Max.) 2.50W (Typ.)

Innolux AT070TN84 TP Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
3.3V (Typ.)(VCC) 250/300mA (Typ./Max.)(ICC) 825mW (Typ.)
Voltage for Display Signals : 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Interface Features : Position Signal Type
- TTL (1 ch, 6-bit) Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
HRS FH33-40S-0.5SH(10) 0.5 mm 40 pins 1 pcs DRGB-40P1C6B-260B

whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 165(W)×104(H)×6.8(D) mm, viewing area size of 155.0(W)×94.3(H) mm, with surface treament of Antiglare, net weight of 160g (Typ.). As a TN, Normally White, Transmissive LCM product, AT070TN84 TP can provides 360 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 10/15 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver. AT070TN84 TP utilizes TTL (1 ch, 6-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.)(VCC)

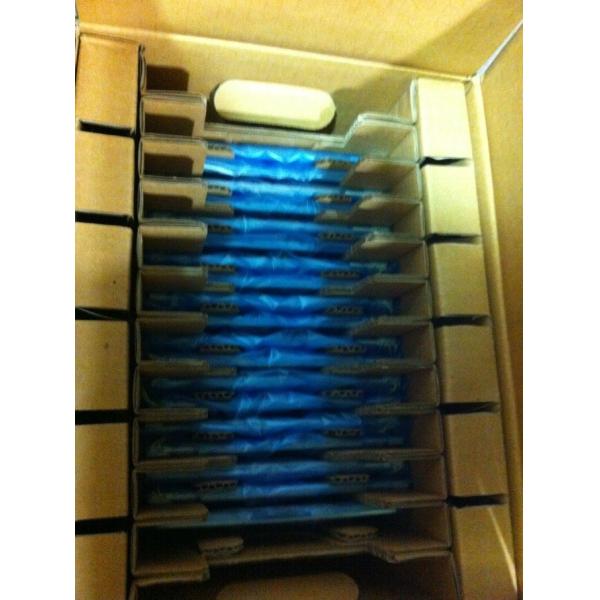

AT070TN84 TP Innolux 7.0
