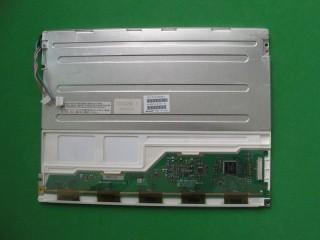

LQ121S1DG41Viewing angle 70/70/50/60 12.1 800×600 82PPI Industrial LCD Panel
LQ121S1DG41Viewing angle 70/70/50/60 12.1 800×600 82PPI Industrial LCD Panel
LQ121S1DG41Viewing angle 70/70/50/60 12.1 800×600 82PPI Industrial LCD Panel
LQ121S1DG41Viewing angle 70/70/50/60 12.1 800×600 82PPI Industrial LCD Panel
LQ121S1DG41Viewing angle 70/70/50/60 12.1 800×600 82PPI Industrial LCD Panel
LQ121S1DG41Viewing angle 70/70/50/60 12.1 800×600 82PPI Industrial LCD Panel
LQ121S1DG41Viewing angle 70/70/50/60 12.1 800×600 82PPI Industrial LCD Panel
LQ121S1DG41Viewing angle 70/70/50/60 12.1 800×600 82PPI Industrial LCD Panel
LQ121S1DG41Viewing angle 70/70/50/60 12.1 800×600 82PPI Industrial LCD Panel
LQ121S1DG41Viewing angle 70/70/50/60 12.1 800×600 82PPI Industrial LCD Panel
Specifications
Brand Name :
SHARP
Model Number :
LQ121S1DG41
Certification :
IS09001
Place of Origin :
Japan
MOQ :
1PCS
Payment Terms :
T/T IN ADVANCE, WESTERN UNION, PAYPAL, ESCROW
Supply Ability :
500
Delivery Time :
Working Day:1-3 Days
Packaging Details :
Original Factory Package
Price :
50USD
Screen Size :
12.1
Pixel Number :
800(RGB)×600 (SVGA) 82PPI
Active Area(mm) :
246 × 184.5 (H×V)
Luminance :
370 cd/m² (Typ.)
Signal Type :
Parallel RGB (1 ch, 6-bit) , 41 pins Connector
Max. Ratings :
-30 ~ 70 °C
Screen Type :
LCM, a-Si TFT-LCD
Arrangement :
RGB Vertical Stripe
Outline(mm) :
276 × 209 × 11 (H×V×D)
Work Mode :
TN, Normally White, Transmissive
Description

LQ121S1DG41 12.1 INCH SHARP TFT-LCD 800(RGB)×600 (SVGA) 82PPI PIXEL -30 ~ 70 °C Industrial LCD Panel

1. Main Information:

The LQ121S1DG41 is a 12.1 inch diagonal a-Si TFT-LCD display panel product from Sharp Corporation (hereafter called Sharp), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of -10 ~ 65°C , a storage temperature range of -30 ~ 70°C , and the maximal vibration level of 1.0G (9.8 m/s²). It's general features are summarized by Panelook in the following: Lamp Repaceable, Life ≥ 50K hours, U/D,L/R Reverse, Matte . Based on its features, Panelook recommend that this model be applied to Industrial etc

2. Sharp LQ121S1DG41 Mechanical Features

Screen Size : 12.1"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
800(RGB)×600, SVGA RGB Vertical Stripe 0.1025×0.3075 mm 0.3075×0.3075 mm [82PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
246×184.5 mm 249.0×187.5 mm 276×209 mm 11.0 (Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type -
Other Spec : Mass Panel Cover Surface Treatment
660g (Max.) - Antiglare, Hard coating (3H)

3. Sharp LQ121S1DG41 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
370 cd/m² (Typ.) TN, Normally White, Transmissive 450:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
6 o'clock 70/70/50/60 (Typ.)(CR≥10) 10/25 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 262K (6-bit) X:0.313; Y:0.329
1931 Color Gamlt : NTSC Ratio sRGB Coverage Adobe RGB Coverage
50% 69% 52%
DCI-P3 Coverage Rec.2020 Coverage Remarks
52% 37% sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
White Uniformity : 1.25 (Max.)(5 points)

4. Sharp LQ121S1DG41 Backlight Features

Back-light Features: Type Position Life(Hours) Amount Shape Replacement
CCFL Edge light type (Top side) 50K(Min.) 2 pcs Straight Replaceable (LQ0DDB5399)
CCFL Electrical : Input Voltage Input Current Power Consumption
533V (Typ.) 3.0/6.0/6.5mA (Min./Typ./Max.) 7.0W (Typ.)
Operating Frequency Startup Voltage
35/60/80KHz (Min./Typ./Max.) 1200/1500V (Max.)(Ta=+25/-10℃)
Interface Features : CCFL Driver State Physical Type Interface Position
No Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JST BHR-03VS-1 2 pcs 3 pins 4.0 mm BLL-3PINS-HNL

  • 5. FAQ:

Q1: What's the quality of your LCD Panel?

A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?

A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?

A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?

A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

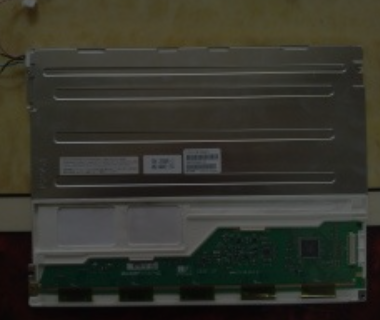

LQ121S1DG41Viewing angle 70/70/50/60 12.1

.
